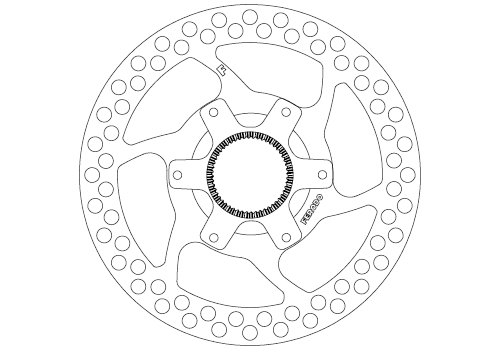

Center lock, TZ-22 design
PRODUCT CODE: FBD****CL
TZ-22 design with aluminum center lock system
USE: ROAD applications
MAIN FEATURES
• Compatible with all brake pad types
• Center-lock made in Anodized Aluminium for reduced weight
• Braking band manufactured in AISI420 high carbon steel for performance and durability.
• Tempered throughout the material’s thickness to ensure a minimum surface hardness of HRC35 throughout the disc’s life
TZ-22 DESIGN
• Engineered to optimise the aerodynamic properites of the disc
PART NUMBERS
| Disc part number | Outside diameter (mm) | Thickness (mm) |
| FBD0014CL | 140 | 1,8 |
| FBD0012CL | 160 | 1,8 |
