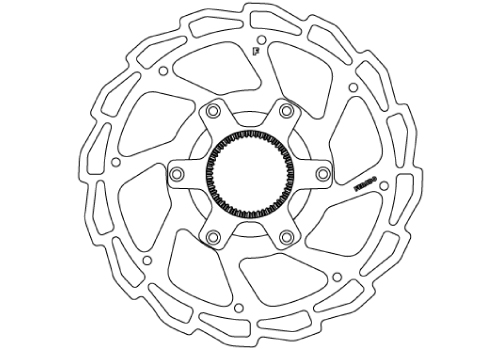

Center lock, TZ-23 design
PRODUCT CODE: FBD****CL
TZ-23 design with aluminum center lock system
USE: OFF-ROAD applications
MAIN FEATURES
• Compatible with all brake pad types
• Center-lock made in Anodized Aluminium for reduced weight
• Braking band manufactured in AISI420 high carbon steel for performance and durability.
• Tempered throughout the material’s thickness to ensure a minimum surface hardness of HRC35 throughout the disc’s life
TZ-23 DESIGN
• Braking band design balances performance, modulation capability and weight
• Engineered to expel dirt which keeps the pad contact area clean in muddy conditions. This means a more consistent braking efficiency across all conditions
• Air flow maximized to increase cooling and reduce the pad and disc operating temperatures
PART NUMBERS
| Disc part number | Outside diameter (mm) | Thickness (mm) |
| FBD0001CL | 140 | 1,8 |
| FBD0002CL | 160 | 1,8 |
| FBD0003CL | 180 | 1,8 |
| FBD0004CL | 180 | 2,0 |
| FBD0005CL | 203 | 2,0 |
