Home » ECAT » Motorcycle, ATV & UTE » Brake Discs

FRONT

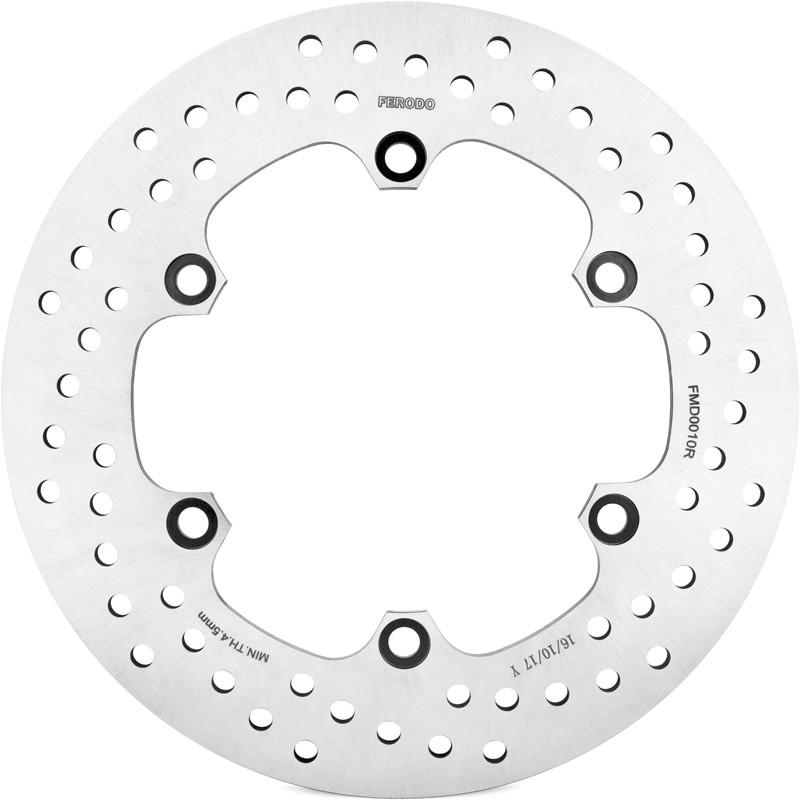

FMD0010R

Standard one-piece disc

DIMENSION / DIMENSIÒN / DIMENSIONE mm

A

276

B

144.4

C

5

D

6

E

10.5

F

166

Legend for above Dimensions

MATERIAL

R

Normal Rounded

Standard, steel one-piece fixed disc, designed to increase performance and wear over OE

COMPETITOR XREF

BRAKING

HO22FI

EBC

MD 1001LS/RS

NEWFREN

DF5001 A

NG

204

EQUIVALENT OE

OEM

45351 MV9 000

OEM

45351 MR5 000

OEM

45351 MJ1 670

OEM

45351 MG5 670

OEM

45351 MCT 911

OEM

45351 MB0 700

OEM

45351 MB0 000

OEM

45251 MV9 000

OEM

45251 ML7 690

OEM

45251 MK4 600

OEM

45251 MJ1 670

OEM

45251 MG5 670

OEM

45251 ME5 780

OEM

45251 MB0 700

OEM

45251 MB0 000

OEM

45251 KT8 000

OEM Honda

45251KPP 901

OEM Honda

45351 MV9 000

FMD0010 APPLICATION

HONDA

MODEL

CC

KW

FROM > TO

F/R

CODE

# SET

SIDE

CBR 125 R (JC34)

125

10

2003 > 2011

FRONT

FMD0010

1

MODEL: CBR 125 R (JC34)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

CBR 125 R (JC34)

125

10

2003 > 2011

REAR

1

MODEL: CBR 125 R (JC34)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1

CBR 125 R (JC34)

125

10

2012 > 2017

REAR

1

MODEL: CBR 125 R (JC34)
FROM > TO: 2012 > 2017
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1

CBR 125 R (JC39)

125

10

2003 > 2011

FRONT

FMD0010

1

MODEL: CBR 125 R (JC39)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

CBR 125 R (JC39)

125

10

2003 > 2011

REAR

1

MODEL: CBR 125 R (JC39)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1

CBR 125 R (JC39)

125

10

2012 > 2017

REAR

1

MODEL: CBR 125 R (JC39)
FROM > TO: 2012 > 2017
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1

CBR 125 R (JC50)

125

10

2003 > 2011

FRONT

FMD0010

1

MODEL: CBR 125 R (JC50)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

CBR 125 R (JC50)

125

10

2003 > 2017

REAR

1

MODEL: CBR 125 R (JC50)
FROM > TO: 2003 > 2017
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1

FJS 600 Silver Wing ABS (PF01)

582

37

2003 > 2007

FRONT

FMD0010

1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2003 > 2007
CC: 582
KW: 37
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

FJS 600 Silver Wing ABS (PF01)

582

37

2003 > 2007

REAR

1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2003 > 2007
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

FJS 600 Silver Wing ABS (PF01)

582

37

2007 > 2007

FRONT

FMD0010

1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2007 > 2007
CC: 582
KW: 37
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

FJS 600 Silver Wing ABS (PF01)

582

37

2007 > 2007

REAR

1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2007 > 2007
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

FJS 600 Silver Wing ABS (PF01)

582

37

2008 > 2008

REAR

1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2008 > 2008
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

CBR 600 F (PC23)

598

37

1987 > 1990

FRONT

FMD0010

2

MODEL: CBR 600 F (PC23)
FROM > TO: 1987 > 1990
CC: 598
KW: 37
FRONT / REAR: front
CODE: FMD0010
NUM SET: 2

CBR 600 F (PC23)

598

37

1987 > 1990

REAR

1

MODEL: CBR 600 F (PC23)
FROM > TO: 1987 > 1990
CC: 598
KW: 37
FRONT / REAR: rear
CODE: FMD0217
NUM SET: 1

Silver Wing (FSC600D)

600

2003 > 2007

FRONT

FMD0010

1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 > 2007
CC: 600
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

Silver Wing (FSC600D)

600

2003 > 2007

REAR

1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 > 2007
CC: 600
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

Silver Wing (FSC600D)

600

2008 > 2008

REAR

1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2008 > 2008
CC: 600
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

Silver Wing 600 (FJS600D)

600

2003 > 2007

FRONT

FMD0010

1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 > 2007
CC: 600
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1

Silver Wing 600 (FJS600D)

600

2003 > 2007

REAR

1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 > 2007
CC: 600
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

Silver Wing 600 (FJS600D)

600

2008 > 2008

REAR

1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2008 > 2008
CC: 600
FRONT / REAR: rear
CODE: FMD0203
NUM SET: 1

CBX 750F

748

60

1983 > 1988

FRONT

FMD0010

2

MODEL: CBX 750F
FROM > TO: 1983 > 1988
CC: 748
KW: 60
FRONT / REAR: front
CODE: FMD0010
NUM SET: 2

CBX 750F

748

60

1983 > 1988

REAR

1

MODEL: CBX 750F
FROM > TO: 1983 > 1988
CC: 748
KW: 60
FRONT / REAR: rear
CODE: FMD0096
NUM SET: 1

CBX 750F (RC17)

748

67

1983 > 1988

FRONT

FMD0010

2

MODEL: CBX 750F (RC17)
FROM > TO: 1983 > 1988
CC: 748
KW: 67
FRONT / REAR: front
CODE: FMD0010
NUM SET: 2

CBX 750F (RC17)

748

67

1983 > 1988

REAR

1

MODEL: CBX 750F (RC17)
FROM > TO: 1983 > 1988
CC: 748
KW: 67
FRONT / REAR: rear
CODE: FMD0096
NUM SET: 1

TRIUMPH

MODEL

CC

KW

FROM > TO

F/R

CODE

# SET

SIDE

Tiger 900 (T400)

885

63

1993 > 1998

FRONT

FMD0010

2

MODEL: Tiger 900 (T400)
FROM > TO: 1993 > 1998
CC: 885
KW: 63
FRONT / REAR: front
CODE: FMD0010
NUM SET: 2
