REAR

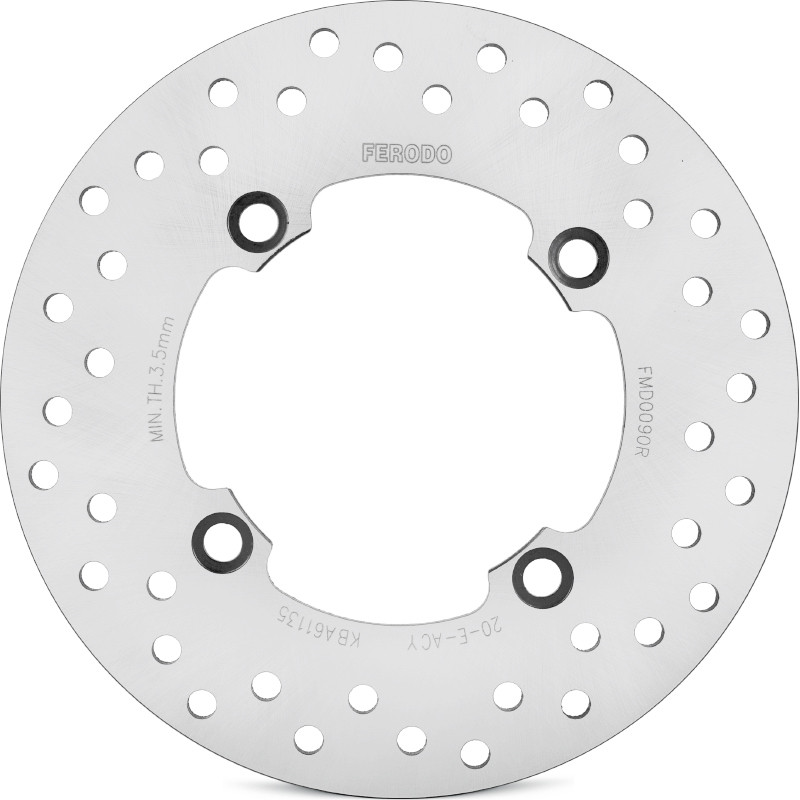

FMD0090R
Standard one-piece disc
TECHNICAL DIMENSIONS / DIMENSIONES TÉCNICAS / DIMENSIONI TECNICHE
A Outside diameter mm / Diámetro exterior mm / Diametro esterno mm
B Inside diameter mm / Diámetro interno mm / Diametro interno mm
C Thickness mm / Espesor mm / Spessore mm
D Fixing holes number / Numero de agujeros / Numero fori di fissaggio
E Fixing holes diameter mm / Diámetro agujeros de fijacion mm / Diametro fori di fissaggio mm
F Fixing holes centreline diameter mm / Diámetro agujero pasador para fijacion mm / Diametro passante fori di fissaggio mm
G Braking band / Banda frenante / Fascia frenante mm
H Offset mm
R
Normal Rounded
COMPETITOR XREF
EQUIVALENT OE
FMD0090 APPLICATION
MODEL:
XL 125 V Varadero (JC49)
FROM > TO: 2001 > 2011
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CBR 125 R (JC34)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1
MODEL:
CBR 125 R (JC34)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CBR 125 R (JC34)
FROM > TO: 2012 > 2017
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CBR 125 R (JC39)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1
MODEL:
CBR 125 R (JC39)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CBR 125 R (JC39)
FROM > TO: 2012 > 2017
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CBR 125 R (JC50)
FROM > TO: 2003 > 2011
CC: 125
KW: 10
FRONT / REAR: front
CODE: FMD0010
NUM SET: 1
MODEL:
CBR 125 R (JC50)
FROM > TO: 2003 > 2017
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
XL 125 V Varadero (JC32A)
FROM > TO: 2001 > 2011
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
SL 230
FROM > TO: 1997 > 2001
CC: 230
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CB 250 F Hornet (MC31)
FROM > TO: 1996 > 2001
CC: 249
KW: 29
FRONT / REAR: front
CODE: FMD0112
NUM SET: 1
MODEL:
CB 250 F Hornet (MC31)
FROM > TO: 1996 > 2001
CC: 249
KW: 29
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
XR 250 R (ME06)
FROM > TO: 1991 > 2004
CC: 249
KW: 22
FRONT / REAR: front
CODE: FMD0015
NUM SET: 1
MODEL:
XR 250 R (ME06)
FROM > TO: 1991 > 2004
CC: 249
KW: 22
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CB 250 NIGHT HAWK
FROM > TO: 1996 > 2001
CC: 250
FRONT / REAR: front
CODE: FMD0112
NUM SET: 1
MODEL:
CB 250 NIGHT HAWK
FROM > TO: 1996 > 2001
CC: 250
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CRF 250 L
FROM > TO: 2013 > 2014
CC: 250
KW: 17
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
XR 250 RE - RH
FROM > TO: 1991 > 2004
CC: 250
FRONT / REAR: front
CODE: FMD0015
NUM SET: 1
MODEL:
XR 250 RE - RH
FROM > TO: 1991 > 2004
CC: 250
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
CB 400 FK (CB-1)
FROM > TO: 1989 > 1991
CC: 400
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
XR 400 SUPERMOTARD
FROM > TO: 2000 > 2007
CC: 400
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
MODEL:
XR 440 R (DALL'ARA)
FROM > TO: 2006 > 2007
CC: 440
FRONT / REAR: rear
CODE: FMD0090
NUM SET: 1
