FRONT

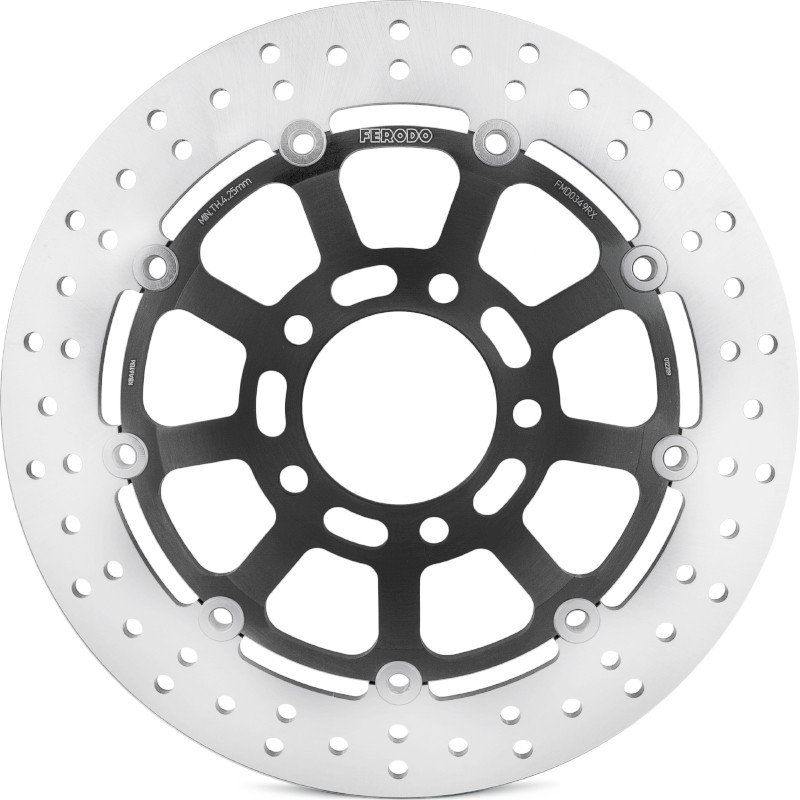

FMD0349RX
Full floating disc, alloy carrier
TECHNICAL DIMENSIONS / DIMENSIONES TÉCNICAS / DIMENSIONI TECNICHE
A Outside diameter mm / Diámetro exterior mm / Diametro esterno mm
B Inside diameter mm / Diámetro interno mm / Diametro interno mm
C Thickness mm / Espesor mm / Spessore mm
D Fixing holes number / Numero de agujeros / Numero fori di fissaggio
E Fixing holes diameter mm / Diámetro agujeros de fijacion mm / Diametro fori di fissaggio mm
F Fixing holes centreline diameter mm / Diámetro agujero pasador para fijacion mm / Diametro passante fori di fissaggio mm
G Braking band / Banda frenante / Fascia frenante mm
H Offset mm
RX
Rounded Floating Racing
COMPETITOR XREF
EQUIVALENT OE
FMD0349 APPLICATION
MODEL:
GSX 600 F
FROM > TO: 2004 > 2006
CC: 600
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
GSX 600 F KATANA
FROM > TO: 2004 > 2006
CC: 600
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
GSX 600 F KATANA
FROM > TO: 2004 > 2006
CC: 600
FRONT / REAR: rear
CODE: FMD0244
NUM SET: 1
MODEL:
SV 650 S (WVBX)
FROM > TO: 2003 > 2009
CC: 645
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
SV 650 S (WVBX)
FROM > TO: 2003 > 2009
CC: 645
FRONT / REAR: rear
CODE: FMD0249
NUM SET: 1
MODEL:
SV 650 S (WVBY)
FROM > TO: 2003 > 2009
CC: 645
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
SV 650 S (WVBY)
FROM > TO: 2003 > 2009
CC: 645
FRONT / REAR: rear
CODE: FMD0249
NUM SET: 1
MODEL:
SV 650 (WVBY)
FROM > TO: 2003 > 2010
CC: 650
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
SV 650 (WVBY)
FROM > TO: 2003 > 2010
CC: 650
FRONT / REAR: rear
CODE: FMD0249
NUM SET: 1
MODEL:
GSF 650 Bandit (WVB5)
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
GSF 650 Bandit (WVB5)
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: rear
CODE: FMD0244
NUM SET: 1
MODEL:
GSF 650 S Bandit
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: front
CODE: FMD0349
NUM SET: 2
MODEL:
GSF 650 S Bandit
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: rear
CODE: FMD0244
NUM SET: 1
