FRONT

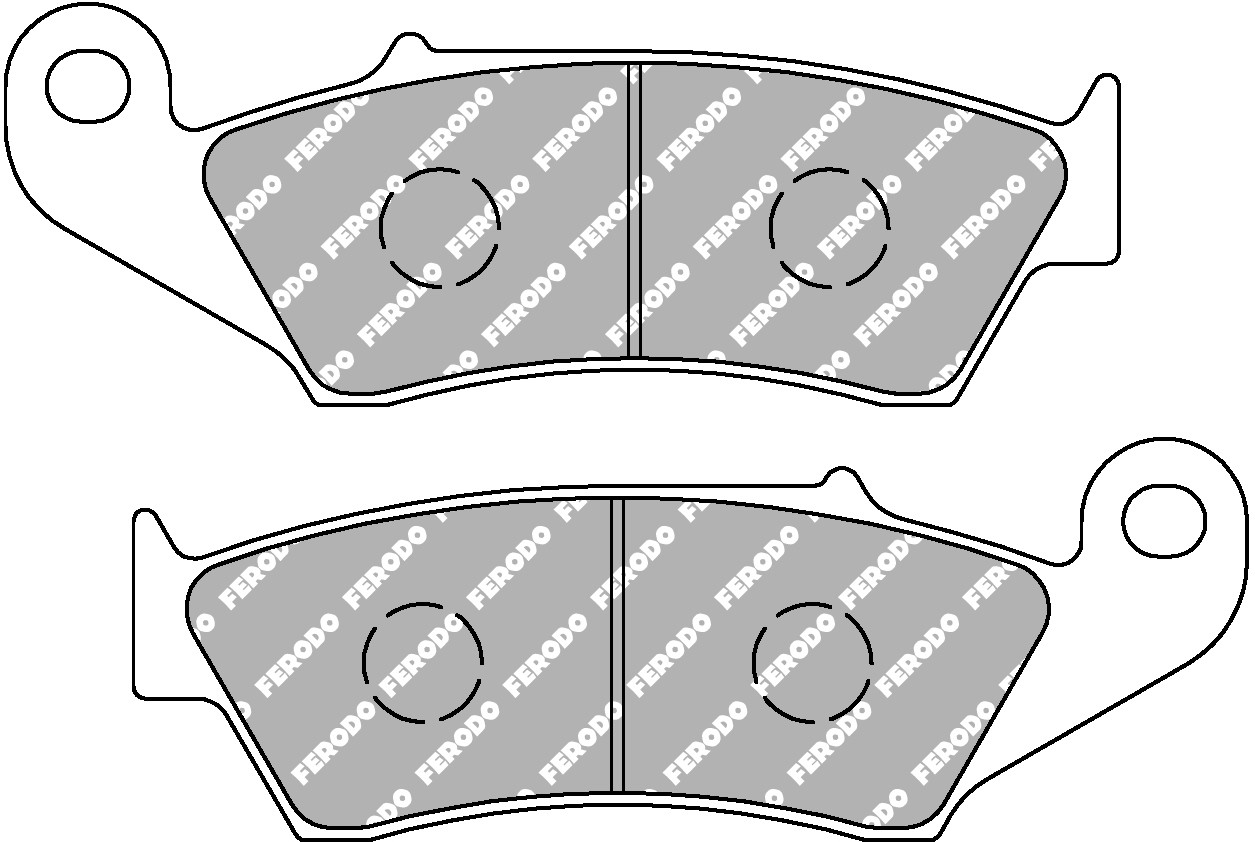

FDB892P

P: Mid-metallic/Road


94.2mm = 3.709"
34.1mm = 1.343"
7.7mm = 0.303"
NOTE: Compound P senza intaglio/P compound without slot; ZR=sintered compound for premium Motocross and Supercross
MATERIAL

P

Platinum

DISCOVER MORE
MID-METALLIC compound
Main Use: ROAD (high performance)
Certification : TUV/KBA, ECE R-90
Recommended for: all CC motorcyces
FAMILY SHAPE

FDB892

DISCOVER
BRAKING
772
BREMBO
07KA17
CL BRAKES
2300
EBC
FA185
GALFER
FD164
LUCAS/TRW
MCB669
NEWFREN
FD0193
SBS
694
VESRAH
VD-161
OEM Aprilia
9100788
OEM Honda
06455 KCZ 000
OEM Honda
06455 MAY 000
OEM Honda
45105 KT0 405
OEM Honda
45105 MY6 405
OEM Honda
45105 MY6 415
OEM Honda
45105-KZ1-405
OEM Honda
06455 MY1 405
OEM Kawasaki
43082 1247
OEM Kawasaki
43082 1286
OEM Kawasaki
43082 1266
OEM Kawasaki
43082 1218
OEM Kawasaki
43082 1193
OEM Kawasaki
43082 1172
OEM Kawasaki
43082 1152
OEM Kawasaki
43082 0049
OEM Kawasaki
43082 1149
OEM Suzuki
59301 36810
OEM Suzuki
59300 36890
OEM Suzuki
59300 36880
OEM Suzuki
59300 36870
OEM Suzuki
59300 36860
OEM Suzuki
59300 13860
OEM Suzuki
59300 36850
OEM Suzuki
59300 13830
OEM Yamaha
5MV W0045 01
OEM Yamaha
5MV W0045 00
OEM Yamaha
5DH W0045 10
OEM Yamaha
5DH W0045 00
OEM Yamaha
5D7 F5811 00
OEM Yamaha
32D W0045 00

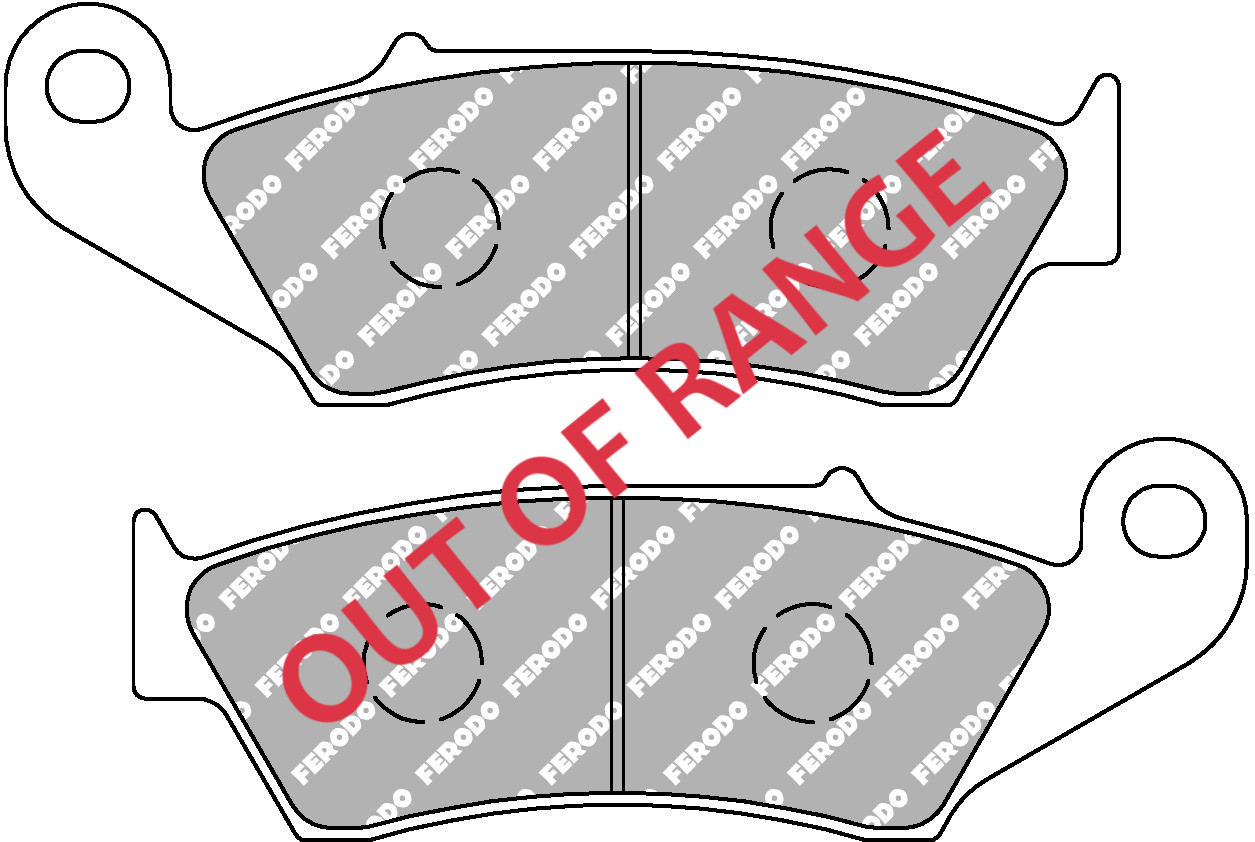

FDB892 OTHER MATERIALS

4 PART(S) FOUND
FRONT
FDB892SG
SG: Sintered/Off-Road

FRONT
FDB892ZR
ZR: Sintered/Off-Road Racing

FRONT
FDB892EF
EF: Mid-metallic/Road

FRONT
FDB892CPRO
CPRO: Ceramic/Racing

FDB892 APPLICATION

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
250
2009 > 2009
FRONT
FDB892
1

MODEL: PR5 250 Enduro
FROM > TO: 2009 > 2009
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2009 > 2009
REAR
1

MODEL: PR5 250 Enduro
FROM > TO: 2009 > 2009
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2010 > 2015
FRONT
1

MODEL: PR5 250 Enduro
FROM > TO: 2010 > 2015
CC: 250
FRONT / REAR: front
CODE: FDB2242
NUM SET: 1

250
2009 > 2009
FRONT
FDB892
1

MODEL: PR5 250 Supermoto
FROM > TO: 2009 > 2009
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2009 > 2009
REAR
1

MODEL: PR5 250 Supermoto
FROM > TO: 2009 > 2009
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2010 > 2015
FRONT
1

MODEL: PR5 250 Supermoto
FROM > TO: 2010 > 2015
CC: 250
FRONT / REAR: front
CODE: FDB2242
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
449
25
2005 >
FRONT
FDB892
1

MODEL: RXV 450
FROM > TO: 2005 >
CC: 449
KW: 25
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

449
25
2005 >
REAR
1

MODEL: RXV 450
FROM > TO: 2005 >
CC: 449
KW: 25
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2008 >
FRONT
FDB892
1

MODEL: MXV 450
FROM > TO: 2008 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2008 >
REAR
1

MODEL: MXV 450
FROM > TO: 2008 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

553
2005 >
FRONT
FDB892
1

MODEL: RXV 550
FROM > TO: 2005 >
CC: 553
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

553
2005 >
REAR
1

MODEL: RXV 550
FROM > TO: 2005 >
CC: 553
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
2018 >
FRONT
FDB892
1

MODEL: RR 125 2T Enduro
FROM > TO: 2018 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2018 >
REAR
1

MODEL: RR 125 2T Enduro
FROM > TO: 2018 >
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2015 >
FRONT
FDB892
1

MODEL: RR 250 2T ENDURO
FROM > TO: 2015 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

250
2015 >
REAR
1

MODEL: RR 250 2T ENDURO
FROM > TO: 2015 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

250
2014 >
FRONT
FDB892
1

MODEL: RR 250 2T ENDURO RACING
FROM > TO: 2014 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

MODEL: RR 250 2T ENDURO RACING
FROM > TO: 2014 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

250
2005 > 2007
FRONT
FDB892
1

MODEL: RR 250 4T Enduro
FROM > TO: 2005 > 2007
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2005 > 2007
REAR
1

MODEL: RR 250 4T Enduro
FROM > TO: 2005 > 2007
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2018 >
FRONT
FDB892
1

MODEL: Xtrainer 2T
FROM > TO: 2018 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

250
2018 >
REAR
1

MODEL: Xtrainer 2T
FROM > TO: 2018 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

300
9
2015 >
FRONT
FDB892
1

MODEL: RR 300 2T ENDURO
FROM > TO: 2015 >
CC: 300
KW: 9
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

300
9
2015 >
REAR
1

MODEL: RR 300 2T ENDURO
FROM > TO: 2015 >
CC: 300
KW: 9
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

300
6
2015 >
FRONT
FDB892
1

MODEL: Xtrainer 2T
FROM > TO: 2015 >
CC: 300
KW: 6
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

300
6
2015 >
REAR
1

MODEL: Xtrainer 2T
FROM > TO: 2015 >
CC: 300
KW: 6
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

350
2015 >
FRONT
FDB892
1

MODEL: RR 350 4T EFI Enduro
FROM > TO: 2015 >
CC: 350
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

350
2015 >
REAR
1

MODEL: RR 350 4T EFI Enduro
FROM > TO: 2015 >
CC: 350
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

350
2015 >
FRONT
FDB892
1

MODEL: RR 350 4T EFI Enduro Racing
FROM > TO: 2015 >
CC: 350
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

MODEL: RR 350 4T EFI Enduro Racing
FROM > TO: 2015 >
CC: 350
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

350
2011 >
FRONT
FDB892
1

MODEL: RR 350 4T Enduro
FROM > TO: 2011 >
CC: 350
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

350
2011 >
REAR
1

MODEL: RR 350 4T Enduro
FROM > TO: 2011 >
CC: 350
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

350
2019 >
FRONT
FDB892
1

MODEL: RR 350 4T Enduro
FROM > TO: 2019 >
CC: 350
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

350
2019 >
REAR
1

MODEL: RR 350 4T Enduro
FROM > TO: 2019 >
CC: 350
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

350
2019 >
FRONT
FDB892
1

MODEL: RR 350 4T Enduro Racing
FROM > TO: 2019 >
CC: 350
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

MODEL: RR 350 4T Enduro Racing
FROM > TO: 2019 >
CC: 350
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

390
2015 >
FRONT
FDB892
1

MODEL: RR 390 4T Enduro
FROM > TO: 2015 >
CC: 390
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

390
2015 >
REAR
1

MODEL: RR 390 4T Enduro
FROM > TO: 2015 >
CC: 390
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

400
2005 >
FRONT
FDB892
1

MODEL: RR 400 4T Enduro
FROM > TO: 2005 >
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
2005 >
REAR
1

MODEL: RR 400 4T Enduro
FROM > TO: 2005 >
CC: 400
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

430
9
2015 >
FRONT
FDB892
1

MODEL: RR 430 4T Enduro
FROM > TO: 2015 >
CC: 430
KW: 9
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

430
9
2015 >
REAR
1

MODEL: RR 430 4T Enduro
FROM > TO: 2015 >
CC: 430
KW: 9
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

450
2012 >
FRONT
FDB892
1

MODEL: RR 450 4T Cross Country
FROM > TO: 2012 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

MODEL: RR 450 4T Cross Country
FROM > TO: 2012 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2005 > 2013
FRONT
FDB892
1

MODEL: RR 450 4T Enduro
FROM > TO: 2005 > 2013
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2005 > 2013
REAR
1

MODEL: RR 450 4T Enduro
FROM > TO: 2005 > 2013
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

480
9
2015 >
FRONT
FDB892
1

MODEL: RR 480 4T Enduro
FROM > TO: 2015 >
CC: 480
KW: 9
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

480
9
2015 >
REAR
1

MODEL: RR 480 4T Enduro
FROM > TO: 2015 >
CC: 480
KW: 9
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

498
2012 >
FRONT
FDB892
1

MODEL: RR 498 4T Enduro
FROM > TO: 2012 >
CC: 498
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

498
2012 >
REAR
1

MODEL: RR 498 4T Enduro
FROM > TO: 2012 >
CC: 498
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

520
2010 > 2011
FRONT
FDB892
1

MODEL: RR 520 4T Enduro
FROM > TO: 2010 > 2011
CC: 520
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

520
2010 > 2011
REAR
1

MODEL: RR 520 4T Enduro
FROM > TO: 2010 > 2011
CC: 520
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

525
2005 > 2009
FRONT
FDB892
1

MODEL: RR 525 4T Enduro
FROM > TO: 2005 > 2009
CC: 525
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

525
2005 > 2009
REAR
1

MODEL: RR 525 4T Enduro
FROM > TO: 2005 > 2009
CC: 525
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
400
2000 > 2002
FRONT
FDB892
1

MODEL: MX 400
FROM > TO: 2000 > 2002
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
2000 > 2002
REAR
1

MODEL: MX 400
FROM > TO: 2000 > 2002
CC: 400
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

440
2003 >
FRONT
FDB892
1

MODEL: 440 (All Enduro / MX Models)
FROM > TO: 2003 >
CC: 440
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

MODEL: 440 (All Enduro / MX Models)
FROM > TO: 2003 >
CC: 440
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

440
2003 >
FRONT
FDB892
1

MODEL: S 440 SUPERMOTO
FROM > TO: 2003 >
CC: 440
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

440
2003 >
REAR
1

MODEL: S 440 SUPERMOTO
FROM > TO: 2003 >
CC: 440
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
2000 > 2014
FRONT
FDB892
1

MODEL: EC / MC 125
FROM > TO: 2000 > 2014
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2000 > 2014
REAR
1

MODEL: EC / MC 125
FROM > TO: 2000 > 2014
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
2015 >
FRONT
FDB892
1

MODEL: EC / MC 125
FROM > TO: 2015 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2015 >
REAR
1

MODEL: EC / MC 125
FROM > TO: 2015 >
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

200
2001 >
FRONT
FDB892
1

MODEL: EC / MC 200
FROM > TO: 2001 >
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
2001 >
REAR
1

MODEL: EC / MC 200
FROM > TO: 2001 >
CC: 200
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

200
2019 >
FRONT
FDB892
1

MODEL: EC 200
FROM > TO: 2019 >
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
2019 >
REAR
1

MODEL: EC 200
FROM > TO: 2019 >
CC: 200
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

200
2018 > 2019
FRONT
FDB892
1

MODEL: XC 200
FROM > TO: 2018 > 2019
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
2018 > 2019
REAR
1

MODEL: XC 200
FROM > TO: 2018 > 2019
CC: 200
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2000 >
FRONT
FDB892
1

MODEL: EC / MC 250
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2000 >
REAR
1

MODEL: EC / MC 250
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2018 >
FRONT
FDB892
1

MODEL: EC 250 2T
FROM > TO: 2018 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2018 >
REAR
1

MODEL: EC 250 2T
FROM > TO: 2018 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2000 >
FRONT
FDB892
1

MODEL: EC 250 F 4T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2000 >
REAR
1

MODEL: EC 250 F 4T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2000 >
FRONT
FDB892
1

MODEL: EC 250 F Racing 4T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2000 >
REAR
1

MODEL: EC 250 F Racing 4T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2017 > 2018
FRONT
FDB892
1

MODEL: EC 250 GP 2T
FROM > TO: 2017 > 2018
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2017 > 2018
REAR
1

MODEL: EC 250 GP 2T
FROM > TO: 2017 > 2018
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2000 >
FRONT
FDB892
1

MODEL: EC 250 H 2T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2000 >
REAR
1

MODEL: EC 250 H 2T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2000 >
FRONT
FDB892
1

MODEL: EC 250 H Racing 2T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2000 >
REAR
1

MODEL: EC 250 H Racing 2T
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2014 > 2017
FRONT
FDB892
1

MODEL: EC 250 Racing 2T
FROM > TO: 2014 > 2017
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2014 > 2017
REAR
1

MODEL: EC 250 Racing 2T
FROM > TO: 2014 > 2017
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2018 >
FRONT
FDB892
1

MODEL: EC 250 Six Days Chile
FROM > TO: 2018 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2018 >
REAR
1

MODEL: EC 250 Six Days Chile
FROM > TO: 2018 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2017 > 2017
FRONT
FDB892
1

MODEL: EC 250 Six Days France
FROM > TO: 2017 > 2017
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2017 > 2017
REAR
1

MODEL: EC 250 Six Days France
FROM > TO: 2017 > 2017
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2018 > 2019
FRONT
FDB892
1

MODEL: XC 250
FROM > TO: 2018 > 2019
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2018 > 2019
REAR
1

MODEL: XC 250
FROM > TO: 2018 > 2019
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2000 >
FRONT
FDB892
1

MODEL: EC / MC 300
FROM > TO: 2000 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2000 >
REAR
1

MODEL: EC / MC 300
FROM > TO: 2000 >
CC: 300
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

300
2018 >
FRONT
FDB892
1

MODEL: EC 300 2T
FROM > TO: 2018 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2018 >
REAR
1

MODEL: EC 300 2T
FROM > TO: 2018 >
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2000 >
FRONT
FDB892
1

MODEL: EC 300 F Racing 4T
FROM > TO: 2000 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2000 >
REAR
1

MODEL: EC 300 F Racing 4T
FROM > TO: 2000 >
CC: 300
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

300
2017 > 2018
FRONT
FDB892
1

MODEL: EC 300 GP 2T
FROM > TO: 2017 > 2018
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2017 > 2018
REAR
1

MODEL: EC 300 GP 2T
FROM > TO: 2017 > 2018
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2000 >
FRONT
FDB892
1

MODEL: EC 300 H 2T
FROM > TO: 2000 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2000 >
REAR
1

MODEL: EC 300 H 2T
FROM > TO: 2000 >
CC: 300
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

300
2000 >
FRONT
FDB892
1

MODEL: EC 300 H Racing 2T
FROM > TO: 2000 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2000 >
REAR
1

MODEL: EC 300 H Racing 2T
FROM > TO: 2000 >
CC: 300
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

300
2014 > 2017
FRONT
FDB892
1

MODEL: EC 300 Racing 2T
FROM > TO: 2014 > 2017
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2014 > 2017
REAR
1

MODEL: EC 300 Racing 2T
FROM > TO: 2014 > 2017
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2019 >
FRONT
FDB892
1

MODEL: EC 300 Ranger 2T
FROM > TO: 2019 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2019 >
REAR
1

MODEL: EC 300 Ranger 2T
FROM > TO: 2019 >
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2018 >
FRONT
FDB892
1

MODEL: EC 300 Six Days Chile
FROM > TO: 2018 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2018 >
REAR
1

MODEL: EC 300 Six Days Chile
FROM > TO: 2018 >
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2017 > 2017
FRONT
FDB892
1

MODEL: EC 300 Six Days France
FROM > TO: 2017 > 2017
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2017 > 2017
REAR
1

MODEL: EC 300 Six Days France
FROM > TO: 2017 > 2017
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

300
2018 >
FRONT
FDB892
1

MODEL: XC 300
FROM > TO: 2018 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2018 >
REAR
1

MODEL: XC 300
FROM > TO: 2018 >
CC: 300
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

400
2001 >
FRONT
FDB892
1

MODEL: EC / MC 400
FROM > TO: 2001 >
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
2001 >
REAR
1

MODEL: EC / MC 400
FROM > TO: 2001 >
CC: 400
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

450
35
2004 >
FRONT
FDB892
1

MODEL: EC 450 FSE
FROM > TO: 2004 >
CC: 450
KW: 35
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
35
2004 >
REAR
1

MODEL: EC 450 FSE
FROM > TO: 2004 >
CC: 450
KW: 35
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
124
9
1993 >
FRONT
FDB892
1

MODEL: XLR 125
FROM > TO: 1993 >
CC: 124
KW: 9
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

124
9
1993 >
REAR
1

MODEL: XLR 125
FROM > TO: 1993 >
CC: 124
KW: 9
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
1996 > 2001
FRONT
FDB892
1

MODEL: CR 125 R
FROM > TO: 1996 > 2001
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1996 > 2001
REAR
1

MODEL: CR 125 R
FROM > TO: 1996 > 2001
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
2002 > 2007
FRONT
FDB892
1

MODEL: CR 125 R
FROM > TO: 2002 > 2007
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2002 > 2007
REAR
1

MODEL: CR 125 R
FROM > TO: 2002 > 2007
CC: 125
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

125
2014 > 2016
FRONT
FDB892
1

MODEL: CRF 125 F (Small wheel 17"-14")
FROM > TO: 2014 > 2016
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2014 > 2018
FRONT
FDB892
1

MODEL: CRF 125 FB (Big wheel 19"-16")
FROM > TO: 2014 > 2018
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2003 > 2008
FRONT
FDB892
1

MODEL: XR 125 L
FROM > TO: 2003 > 2008
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

150
2003 > 2007
FRONT
FDB892
1

MODEL: CRF 150 F
FROM > TO: 2003 > 2007
CC: 150
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

150
>
FRONT
FDB892
1

MODEL: NX 150 (Brasil)
FROM > TO: >
CC: 150
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
2003 > 2004
FRONT
FDB892
1

MODEL: CTX 200
FROM > TO: 2003 > 2004
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
>
FRONT
FDB892
1

MODEL: NX 200 (Brasil)
FROM > TO: >
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
1993 >
FRONT
FDB892
1

MODEL: XLR 200 R
FROM > TO: 1993 >
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
1993 >
REAR
1

MODEL: XLR 200 R
FROM > TO: 1993 >
CC: 200
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

200
>
FRONT
FDB892
1

MODEL: XR 200 (Brasil)
FROM > TO: >
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

230
2008 >
FRONT
FDB892
1

MODEL: CRF 230 EASY Enduro /SM
FROM > TO: 2008 >
CC: 230
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

230
2008 >
REAR
1

MODEL: CRF 230 EASY Enduro /SM
FROM > TO: 2008 >
CC: 230
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

230
14
2003 > 2007
FRONT
FDB892
1

MODEL: CRF 230 F
FROM > TO: 2003 > 2007
CC: 230
KW: 14
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

230
14
2008 >
FRONT
FDB892
1

MODEL: CRF 230 F
FROM > TO: 2008 >
CC: 230
KW: 14
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

230
14
2008 >
REAR
1

MODEL: CRF 230 F
FROM > TO: 2008 >
CC: 230
KW: 14
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

230
1997 >
FRONT
FDB892
1

MODEL: SL 230
FROM > TO: 1997 >
CC: 230
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

249
22
1994 >
FRONT
FDB892
1

MODEL: XR 250 R (ME06)
FROM > TO: 1994 >
CC: 249
KW: 22
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

249
22
1994 >
REAR
1

MODEL: XR 250 R (ME06)
FROM > TO: 1994 >
CC: 249
KW: 22
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1996 > 2001
FRONT
FDB892
1

MODEL: CR 250 R
FROM > TO: 1996 > 2001
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1996 > 2001
REAR
1

MODEL: CR 250 R
FROM > TO: 1996 > 2001
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2002 > 2007
FRONT
FDB892
1

MODEL: CR 250 R
FROM > TO: 2002 > 2007
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2002 > 2007
REAR
1

MODEL: CR 250 R
FROM > TO: 2002 > 2007
CC: 250
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

250
2004 >
FRONT
FDB892
1

MODEL: CRF 250 R
FROM > TO: 2004 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

250
2004 >
REAR
1

MODEL: CRF 250 R
FROM > TO: 2004 >
CC: 250
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

250
2018 >
FRONT
FDB892
1

MODEL: CRF 250 R
FROM > TO: 2018 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2018 >
REAR
1

MODEL: CRF 250 R
FROM > TO: 2018 >
CC: 250
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

250
2019 >
FRONT
FDB892
1

MODEL: CRF 250 RX
FROM > TO: 2019 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2019 >
REAR
1

MODEL: CRF 250 RX
FROM > TO: 2019 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
21
2004 > 2017
FRONT
FDB892
1

MODEL: CRF 250 X
FROM > TO: 2004 > 2017
CC: 250
KW: 21
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

250
21
2004 > 2017
REAR
1

MODEL: CRF 250 X
FROM > TO: 2004 > 2017
CC: 250
KW: 21
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

250
1991 >
FRONT
FDB892
1

MODEL: CRM 250 R
FROM > TO: 1991 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1991 >
REAR
1

MODEL: CRM 250 R
FROM > TO: 1991 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1991 > 1993
FRONT
FDB892
1

MODEL: NX 250 DOMINATOR
FROM > TO: 1991 > 1993
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1991 > 1997
FRONT
FDB892
1

MODEL: XL 250 DEGREE
FROM > TO: 1991 > 1997
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1991 >
FRONT
FDB892
1

MODEL: XLR 250 R
FROM > TO: 1991 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1991 >
REAR
1

MODEL: XLR 250 R
FROM > TO: 1991 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1991 >
FRONT
FDB892
1

MODEL: XLR 250 R BAJA
FROM > TO: 1991 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1991 >
REAR
1

MODEL: XLR 250 R BAJA
FROM > TO: 1991 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1991 > 1995
FRONT
FDB892
1

MODEL: XR 250 L
FROM > TO: 1991 > 1995
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1991 > 1995
REAR
1

MODEL: XR 250 L
FROM > TO: 1991 > 1995
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

300
2013 > 2018
FRONT
FDB892
1

MODEL: CRF 300 X
FROM > TO: 2013 > 2018
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2013 > 2018
REAR
1

MODEL: CRF 300 X
FROM > TO: 2013 > 2018
CC: 300
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

400
2018 >
FRONT
FDB892
1

MODEL: CRF 400 RX
FROM > TO: 2018 >
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
2018 >
REAR
1

MODEL: CRF 400 RX
FROM > TO: 2018 >
CC: 400
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

400
1996 >
FRONT
FDB892
1

MODEL: XR 400 R (All Models)
FROM > TO: 1996 >
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
1996 >
REAR
1

MODEL: XR 400 R (All Models)
FROM > TO: 1996 >
CC: 400
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

440
1999 >
FRONT
FDB892
1

MODEL: XR 440 R (DALL'ARA)
FROM > TO: 1999 >
CC: 440
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

440
1999 >
REAR
1

MODEL: XR 440 R (DALL'ARA)
FROM > TO: 1999 >
CC: 440
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

450
2019 >
FRONT
FDB892
1

MODEL: CRF 450 L
FROM > TO: 2019 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

450
2019 >
REAR
1

MODEL: CRF 450 L
FROM > TO: 2019 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2002 >
FRONT
FDB892
1

MODEL: CRF 450 SUPERMOTARD
FROM > TO: 2002 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2002 >
REAR
1

MODEL: CRF 450 SUPERMOTARD
FROM > TO: 2002 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2019 >
FRONT
FDB892
1

MODEL: CRF 450 XR Supermoto
FROM > TO: 2019 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2019 >
REAR
1

MODEL: CRF 450 XR Supermoto
FROM > TO: 2019 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2002 >
FRONT
FDB892
1

MODEL: CRF 450 R
FROM > TO: 2002 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2002 >
REAR
1

MODEL: CRF 450 R
FROM > TO: 2002 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2017 >
FRONT
FDB892
1

MODEL: CRF 450 R
FROM > TO: 2017 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

450
2017 >
REAR
1

MODEL: CRF 450 R
FROM > TO: 2017 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2013 >
FRONT
FDB892
1

MODEL: CRF 450 Rally
FROM > TO: 2013 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2017 >
FRONT
FDB892
1

MODEL: CRF 450 RX Supermoto
FROM > TO: 2017 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

450
2017 >
REAR
1

MODEL: CRF 450 RX Supermoto
FROM > TO: 2017 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
36
2005 > 2013
FRONT
FDB892
1

MODEL: CRF 450 X
FROM > TO: 2005 > 2013
CC: 450
KW: 36
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
36
2005 > 2013
REAR
1

MODEL: CRF 450 X
FROM > TO: 2005 > 2013
CC: 450
KW: 36
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2004 > 2009
FRONT
FDB892
2

MODEL: TRX 450 R/ER
FROM > TO: 2004 > 2009
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

450
2004 > 2009
REAR
1

MODEL: TRX 450 R/ER
FROM > TO: 2004 > 2009
CC: 450
FRONT / REAR: rear
CODE: FDB2182
NUM SET: 1

500
1993 > 1994
FRONT
FDB892
1

MODEL: CR 500 R
FROM > TO: 1993 > 1994
CC: 500
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

500
1993 > 1994
REAR
1

MODEL: CR 500 R
FROM > TO: 1993 > 1994
CC: 500
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

500
1995 > 2001
FRONT
FDB892
1

MODEL: CR 500 R
FROM > TO: 1995 > 2001
CC: 500
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

500
1995 > 2001
REAR
1

MODEL: CR 500 R
FROM > TO: 1995 > 2001
CC: 500
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

600
1997 > 1999
FRONT
FDB892
2

MODEL: XL 600 V TRANSALP
FROM > TO: 1997 > 1999
CC: 600
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

600
1997 > 1999
REAR
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1997 > 1999
CC: 600
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

600
1994 > 2002
FRONT
FDB892
1

MODEL: XR 600 L - R
FROM > TO: 1994 > 2002
CC: 600
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

600
1994 > 2002
REAR
1

MODEL: XR 600 L - R
FROM > TO: 1994 > 2002
CC: 600
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

647
39
2000 >
FRONT
FDB892
2

MODEL: XL 650 V Transalp (RD10)
FROM > TO: 2000 >
CC: 647
KW: 39
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

647
39
2000 >
REAR
1

MODEL: XL 650 V Transalp (RD10)
FROM > TO: 2000 >
CC: 647
KW: 39
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

649
45
1999 >
FRONT
FDB892
1

MODEL: XR 650 R (RE01)
FROM > TO: 1999 >
CC: 649
KW: 45
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

649
45
1999 >
REAR
1

MODEL: XR 650 R (RE01)
FROM > TO: 1999 >
CC: 649
KW: 45
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

650
1995 > 1997
FRONT
FDB892
1

MODEL: NX 650 DOMINATOR
FROM > TO: 1995 > 1997
CC: 650
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

650
1995 > 1997
REAR
1

MODEL: NX 650 DOMINATOR
FROM > TO: 1995 > 1997
CC: 650
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

650
1998 > 2002
FRONT
1

MODEL: NX 650 DOMINATOR
FROM > TO: 1998 > 2002
CC: 650
FRONT / REAR: front
CODE: FDB2006
NUM SET: 1

650
1998 > 2002
REAR
1

MODEL: NX 650 DOMINATOR
FROM > TO: 1998 > 2002
CC: 650
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

650
1996 >
FRONT
FDB892
1

MODEL: XR 650 L
FROM > TO: 1996 >
CC: 650
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

650
1996 >
REAR
1

MODEL: XR 650 L
FROM > TO: 1996 >
CC: 650
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

680
44
2007 >
FRONT
FDB892
2

MODEL: XL 700 V TRANSALP (No ABS Front)
FROM > TO: 2007 >
CC: 680
KW: 44
FRONT / REAR: front
CODE: FDB892
NUM SET: 2
SYSTEM: No ABS

MODEL: XL 700 V TRANSALP (No ABS Front)
FROM > TO: 2007 >
CC: 680
KW: 44
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: ABS

700
2008 > 2009
FRONT
FDB892
2

MODEL: TRX 700 XX (8/XX9)
FROM > TO: 2008 > 2009
CC: 700
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

700
2008 > 2009
REAR
1

MODEL: TRX 700 XX (8/XX9)
FROM > TO: 2008 > 2009
CC: 700
FRONT / REAR: rear
CODE: FDB2195
NUM SET: 1

750
44
1994 > 2003
FRONT
FDB892
2

MODEL: XRV 750 AFRICA TWIN (RD07)
FROM > TO: 1994 > 2003
CC: 750
KW: 44
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

750
44
1994 > 2003
REAR
1

MODEL: XRV 750 AFRICA TWIN (RD07)
FROM > TO: 1994 > 2003
CC: 750
KW: 44
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
50
2011 >
FRONT
FDB892
1

MODEL: CRE 50 Six Racing
FROM > TO: 2011 >
CC: 50
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

50
2011 >
REAR
1

MODEL: CRE 50 Six Racing
FROM > TO: 2011 >
CC: 50
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

125
2002 >
FRONT
FDB892
1

MODEL: CRE 125 2T /Six Comp
FROM > TO: 2002 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2002 >
REAR
1

MODEL: CRE 125 2T /Six Comp
FROM > TO: 2002 >
CC: 125
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

125
2011 >
FRONT
FDB892
1

MODEL: CRE-F 125 X Six Racing 4T
FROM > TO: 2011 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

MODEL: CRE-F 125 X Six Racing 4T
FROM > TO: 2011 >
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2002 >
FRONT
FDB892
1

MODEL: CRE 250 / CRE F250 X/R
FROM > TO: 2002 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2002 >
REAR
1

MODEL: CRE 250 / CRE F250 X/R
FROM > TO: 2002 >
CC: 250
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

300
2008 >
FRONT
FDB892
1

MODEL: CRE F300 X
FROM > TO: 2008 >
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
2008 >
REAR
1

MODEL: CRE F300 X
FROM > TO: 2008 >
CC: 300
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2011 >
FRONT
FDB892
1

MODEL: CRE F450 R
FROM > TO: 2011 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2011 >
REAR
1

MODEL: CRE F450 R
FROM > TO: 2011 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

450
2008 >
FRONT
FDB892
1

MODEL: CRE F450 X/R
FROM > TO: 2008 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2008 >
REAR
1

MODEL: CRE F450 X/R
FROM > TO: 2008 >
CC: 450
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

500
2009 >
FRONT
FDB892
1

MODEL: CRE-F 500 X
FROM > TO: 2009 >
CC: 500
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

500
2009 >
REAR
1

MODEL: CRE-F 500 X
FROM > TO: 2009 >
CC: 500
FRONT / REAR: rear
CODE: FDB2139
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
1995 > 1997
FRONT
FDB892
1

MODEL: KX 125
FROM > TO: 1995 > 1997
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1995 > 1997
REAR
1

MODEL: KX 125
FROM > TO: 1995 > 1997
CC: 125
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

125
1996 > 2002
FRONT
FDB892
1

MODEL: KX 125
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1996 > 2002
REAR
1

MODEL: KX 125
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
2003 >
FRONT
FDB892
1

MODEL: KX 125
FROM > TO: 2003 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2003 >
REAR
1

MODEL: KX 125
FROM > TO: 2003 >
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
1996 > 2002
FRONT
FDB892
1

MODEL: KX 125 M
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1996 > 2002
REAR
1

MODEL: KX 125 M
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
2003 >
FRONT
FDB892
1

MODEL: KX 125 M
FROM > TO: 2003 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2003 >
REAR
1

MODEL: KX 125 M
FROM > TO: 2003 >
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

200
1994 > 2003
FRONT
FDB892
1

MODEL: KDX 200 E6 / H1 - H3
FROM > TO: 1994 > 2003
CC: 200
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

200
1994 > 2003
REAR
1

MODEL: KDX 200 E6 / H1 - H3
FROM > TO: 1994 > 2003
CC: 200
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

220
1997 > 2003
FRONT
FDB892
1

MODEL: KDX 220 RA4
FROM > TO: 1997 > 2003
CC: 220
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

220
1997 > 2003
REAR
1

MODEL: KDX 220 RA4
FROM > TO: 1997 > 2003
CC: 220
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

250
1995 >
FRONT
FDB892
1

MODEL: KDX 250 K2-K4
FROM > TO: 1995 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1995 >
REAR
1

MODEL: KDX 250 K2-K4
FROM > TO: 1995 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1993 > 1997
FRONT
FDB892
1

MODEL: KLX 250
FROM > TO: 1993 > 1997
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1993 > 1997
REAR
1

MODEL: KLX 250
FROM > TO: 1993 > 1997
CC: 250
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

250
2006 > 2007
FRONT
FDB892
1

MODEL: KLX 250
FROM > TO: 2006 > 2007
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2006 > 2007
REAR
1

MODEL: KLX 250
FROM > TO: 2006 > 2007
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1998 > 2003
FRONT
FDB892
1

MODEL: KLX 250 D-Tracker
FROM > TO: 1998 > 2003
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1998 > 2003
REAR
1

MODEL: KLX 250 D-Tracker
FROM > TO: 1998 > 2003
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
1994 > 1995
FRONT
FDB892
1

MODEL: KX 250 D
FROM > TO: 1994 > 1995
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1994 > 1995
REAR
1

MODEL: KX 250 D
FROM > TO: 1994 > 1995
CC: 250
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

250
1996 > 2002
FRONT
FDB892
1

MODEL: KX 250 D
FROM > TO: 1996 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1996 > 2002
REAR
1

MODEL: KX 250 D
FROM > TO: 1996 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2003 >
FRONT
FDB892
1

MODEL: KX 250 D
FROM > TO: 2003 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2003 >
REAR
1

MODEL: KX 250 D
FROM > TO: 2003 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2004 >
FRONT
FDB892
1

MODEL: KX 250 F 4T
FROM > TO: 2004 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

250
2004 >
REAR
1

MODEL: KX 250 F 4T
FROM > TO: 2004 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

300
1997 > 2003
FRONT
FDB892
1

MODEL: KLX 300 R
FROM > TO: 1997 > 2003
CC: 300
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

300
1997 > 2003
REAR
1

MODEL: KLX 300 R
FROM > TO: 1997 > 2003
CC: 300
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

449
35
2007 >
FRONT
FDB892
1

MODEL: KLX 450 R
FROM > TO: 2007 >
CC: 449
KW: 35
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

449
35
2007 >
REAR
1

MODEL: KLX 450 R
FROM > TO: 2007 >
CC: 449
KW: 35
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2006 >
FRONT
FDB892
1

MODEL: KX 450 F
FROM > TO: 2006 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

450
2006 >
REAR
1

MODEL: KX 450 F
FROM > TO: 2006 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

450
2019 >
FRONT
FDB892
1

MODEL: KX 450 F
FROM > TO: 2019 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

450
2019 >
REAR
1

MODEL: KX 450 F
FROM > TO: 2019 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

500
1994 > 1995
FRONT
FDB892
1

MODEL: KX 500
FROM > TO: 1994 > 1995
CC: 500
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

500
1994 > 1995
REAR
1

MODEL: KX 500
FROM > TO: 1994 > 1995
CC: 500
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

500
1996 >
FRONT
FDB892
1

MODEL: KX 500 E8/E9
FROM > TO: 1996 >
CC: 500
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

500
1996 >
REAR
1

MODEL: KX 500 E8/E9
FROM > TO: 1996 >
CC: 500
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

600
1993 >
FRONT
FDB892
1

MODEL: KLX 600 R
FROM > TO: 1993 >
CC: 600
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

600
1993 >
REAR
1

MODEL: KLX 600 R
FROM > TO: 1993 >
CC: 600
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

650
1993 > 1997
FRONT
FDB892
1

MODEL: KLX 650 R
FROM > TO: 1993 > 1997
CC: 650
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

650
1993 > 1997
REAR
1

MODEL: KLX 650 R
FROM > TO: 1993 > 1997
CC: 650
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
8
2008 >
FRONT
FDB892
1

MODEL: DR 125 SM
FROM > TO: 2008 >
CC: 125
KW: 8
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
8
2008 >
REAR
1

MODEL: DR 125 SM
FROM > TO: 2008 >
CC: 125
KW: 8
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

125
8
2010 >
FRONT
FDB892
1

MODEL: DR 125 SM
FROM > TO: 2010 >
CC: 125
KW: 8
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
8
2010 >
REAR
1

MODEL: DR 125 SM
FROM > TO: 2010 >
CC: 125
KW: 8
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

125
2009 >
FRONT
FDB892
1

MODEL: RM 125
FROM > TO: 2009 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2009 >
REAR
1

MODEL: RM 125
FROM > TO: 2009 >
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

125
2009 >
FRONT
FDB892
1

MODEL: RM 125 E
FROM > TO: 2009 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2009 >
REAR
1

MODEL: RM 125 E
FROM > TO: 2009 >
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

125
1996 > 1998
FRONT
FDB892
1

MODEL: RM 125 T- U - V
FROM > TO: 1996 > 1998
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1996 > 1998
REAR
1

MODEL: RM 125 T- U - V
FROM > TO: 1996 > 1998
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
1999 > 2008
FRONT
FDB892
1

MODEL: RM 125 X - Y - K1
FROM > TO: 1999 > 2008
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1999 > 2008
REAR
1

MODEL: RM 125 X - Y - K1
FROM > TO: 1999 > 2008
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

249
38
2000 > 2002
FRONT
FDB892
1

MODEL: RMX 250
FROM > TO: 2000 > 2002
CC: 249
KW: 38
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

249
38
2000 > 2002
REAR
1

MODEL: RMX 250
FROM > TO: 2000 > 2002
CC: 249
KW: 38
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

250
2000 > 2008
FRONT
FDB892
1

MODEL: RM 250
FROM > TO: 2000 > 2008
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2000 > 2008
REAR
1

MODEL: RM 250
FROM > TO: 2000 > 2008
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2009 >
FRONT
FDB892
1

MODEL: RM 250
FROM > TO: 2009 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2009 >
REAR
1

MODEL: RM 250
FROM > TO: 2009 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
1996 > 1999
FRONT
FDB892
1

MODEL: RM 250 T/V
FROM > TO: 1996 > 1999
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1996 > 1999
REAR
1

MODEL: RM 250 T/V
FROM > TO: 1996 > 1999
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2004 > 2018
FRONT
FDB892
1

MODEL: RM-Z 250
FROM > TO: 2004 > 2018
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1
SYSTEM: Nissin

250
2004 > 2018
REAR
1

MODEL: RM-Z 250
FROM > TO: 2004 > 2018
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

250
2009 >
FRONT
FDB892
1

MODEL: RM-Z 250
FROM > TO: 2009 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2009 >
REAR
1

MODEL: RM-Z 250
FROM > TO: 2009 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2019 >
FRONT
FDB892
1

MODEL: RM-Z 250
FROM > TO: 2019 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2019 >
REAR
1

MODEL: RM-Z 250
FROM > TO: 2019 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
SYSTEM: Nissin

250
1996 > 1998
FRONT
FDB892
1

MODEL: RMX 250 T/V
FROM > TO: 1996 > 1998
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1996 > 1998
REAR
1

MODEL: RMX 250 T/V
FROM > TO: 1996 > 1998
CC: 250
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

400
36
2000 >
FRONT
FDB892
1

MODEL: DR-Z 400 E
FROM > TO: 2000 >
CC: 400
KW: 36
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
36
2000 >
REAR
1

MODEL: DR-Z 400 E
FROM > TO: 2000 >
CC: 400
KW: 36
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

400
29
2000 >
FRONT
FDB892
1

MODEL: DR-Z 400 S
FROM > TO: 2000 >
CC: 400
KW: 29
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
29
2000 >
REAR
1

MODEL: DR-Z 400 S
FROM > TO: 2000 >
CC: 400
KW: 29
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

400
29
2005 >
FRONT
FDB892
1

MODEL: DR-Z 400 SM
FROM > TO: 2005 >
CC: 400
KW: 29
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
29
2005 >
REAR
1

MODEL: DR-Z 400 SM
FROM > TO: 2005 >
CC: 400
KW: 29
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

450
2005 > 2007
FRONT
FDB892
1

MODEL: RM-Z 450
FROM > TO: 2005 > 2007
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2005 > 2007
REAR
1

MODEL: RM-Z 450
FROM > TO: 2005 > 2007
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2008 >
FRONT
FDB892
1

MODEL: RM-Z 450
FROM > TO: 2008 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2008 >
REAR
1

MODEL: RM-Z 450
FROM > TO: 2008 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2018 >
FRONT
FDB892
1

MODEL: RM-Z 450
FROM > TO: 2018 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2018 >
REAR
1

MODEL: RM-Z 450
FROM > TO: 2018 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2008 >
FRONT
FDB892
1

MODEL: RM-Z 450 E
FROM > TO: 2008 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2008 >
REAR
1

MODEL: RM-Z 450 E
FROM > TO: 2008 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2009 >
FRONT
FDB892
1

MODEL: RM-X 450 E
FROM > TO: 2009 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2009 >
REAR
1

MODEL: RM-X 450 E
FROM > TO: 2009 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2009 >
FRONT
FDB892
1

MODEL: SM 450X
FROM > TO: 2009 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2009 >
REAR
1

MODEL: SM 450X
FROM > TO: 2009 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

644
1996 >
FRONT
FDB892
1

MODEL: DR 650 SE (SP46B)
FROM > TO: 1996 >
CC: 644
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

644
1996 >
REAR
1

MODEL: DR 650 SE (SP46B)
FROM > TO: 1996 >
CC: 644
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
1998 > 2002
FRONT
FDB892
1

MODEL: YZ 125
FROM > TO: 1998 > 2002
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
1998 > 2002
REAR
1

MODEL: YZ 125
FROM > TO: 1998 > 2002
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

125
2003 > 2007
FRONT
FDB892
1

MODEL: YZ 125
FROM > TO: 2003 > 2007
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

125
2003 > 2007
REAR
1

MODEL: YZ 125
FROM > TO: 2003 > 2007
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

125
2008 >
FRONT
1

MODEL: YZ 125
FROM > TO: 2008 >
CC: 125
FRONT / REAR: front
CODE: FDB2219
NUM SET: 1

125
2008 >
REAR
1

MODEL: YZ 125
FROM > TO: 2008 >
CC: 125
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
1998 > 2002
FRONT
FDB892
1

MODEL: WR 250 (ZK 2T - FN&FT 4T)
FROM > TO: 1998 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1998 > 2002
REAR
1

MODEL: WR 250 (ZK 2T - FN&FT 4T)
FROM > TO: 1998 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2003 > 2019
FRONT
FDB892
1

MODEL: WR 250 F
FROM > TO: 2003 > 2019
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2003 > 2019
REAR
1

MODEL: WR 250 F
FROM > TO: 2003 > 2019
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2020 >
FRONT
1

MODEL: WR 250 F
FROM > TO: 2020 >
CC: 250
FRONT / REAR: front
CODE: FDB2323
NUM SET: 1
SYSTEM: Nissin

250
23
2008 > 2010
FRONT
FDB892
1

MODEL: WR 250 R
FROM > TO: 2008 > 2010
CC: 250
KW: 23
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
23
2008 > 2010
REAR
1

MODEL: WR 250 R
FROM > TO: 2008 > 2010
CC: 250
KW: 23
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2001 > 2002
FRONT
FDB892
1

MODEL: YZ 250 (2T)
FROM > TO: 2001 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2001 > 2002
REAR
1

MODEL: YZ 250 (2T)
FROM > TO: 2001 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2003 > 2007
FRONT
FDB892
1

MODEL: YZ 250 (2T)
FROM > TO: 2003 > 2007
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2003 > 2007
REAR
1

MODEL: YZ 250 (2T)
FROM > TO: 2003 > 2007
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2008 >
FRONT
1

MODEL: YZ 250 (2T)
FROM > TO: 2008 >
CC: 250
FRONT / REAR: front
CODE: FDB2219
NUM SET: 1

250
2008 >
REAR
1

MODEL: YZ 250 (2T)
FROM > TO: 2008 >
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
1998 > 2000
FRONT
FDB892
1

MODEL: YZ 250 K/L/M
FROM > TO: 1998 > 2000
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
1998 > 2000
REAR
1

MODEL: YZ 250 K/L/M
FROM > TO: 1998 > 2000
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2001 > 2002
FRONT
FDB892
1

MODEL: YZ 250 F (4T)
FROM > TO: 2001 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2001 > 2002
REAR
1

MODEL: YZ 250 F (4T)
FROM > TO: 2001 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

250
2003 > 2006
FRONT
FDB892
1

MODEL: YZ 250 F (4T)
FROM > TO: 2003 > 2006
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

250
2003 > 2006
REAR
1

MODEL: YZ 250 F (4T)
FROM > TO: 2003 > 2006
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

250
2007 > 2013
FRONT
1

MODEL: YZ 250 F (4T)
FROM > TO: 2007 > 2013
CC: 250
FRONT / REAR: front
CODE: FDB2219
NUM SET: 1

250
2007 > 2013
REAR
1

MODEL: YZ 250 F (4T)
FROM > TO: 2007 > 2013
CC: 250
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

400
1998 >
FRONT
FDB892
1

MODEL: WR 400 F
FROM > TO: 1998 >
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
1998 >
REAR
1

MODEL: WR 400 F
FROM > TO: 1998 >
CC: 400
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

400
1999 > 2001
FRONT
FDB892
1

MODEL: WR 400 F
FROM > TO: 1999 > 2001
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
1999 > 2001
REAR
1

MODEL: WR 400 F
FROM > TO: 1999 > 2001
CC: 400
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

400
1998 >
FRONT
FDB892
1

MODEL: YZ 400 F
FROM > TO: 1998 >
CC: 400
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

400
1998 >
REAR
1

MODEL: YZ 400 F
FROM > TO: 1998 >
CC: 400
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

426
27
2001 > 2002
FRONT
FDB892
1

MODEL: WR 426 F (CJ02)
FROM > TO: 2001 > 2002
CC: 426
KW: 27
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

426
27
2001 > 2002
REAR
1

MODEL: WR 426 F (CJ02)
FROM > TO: 2001 > 2002
CC: 426
KW: 27
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

426
2000 > 2002
FRONT
FDB892
1

MODEL: YZ 426 F (4T)
FROM > TO: 2000 > 2002
CC: 426
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

426
2000 > 2002
REAR
1

MODEL: YZ 426 F (4T)
FROM > TO: 2000 > 2002
CC: 426
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

450
2003 >
FRONT
FDB892
1

MODEL: WR 450 F
FROM > TO: 2003 >
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2003 >
REAR
1

MODEL: WR 450 F
FROM > TO: 2003 >
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2003 > 2007
FRONT
FDB892
1

MODEL: YZ 450 F
FROM > TO: 2003 > 2007
CC: 450
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

450
2003 > 2007
REAR
1

MODEL: YZ 450 F
FROM > TO: 2003 > 2007
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

450
2008 > 2019
FRONT
1

MODEL: YZ 450 F
FROM > TO: 2008 > 2019
CC: 450
FRONT / REAR: front
CODE: FDB2219
NUM SET: 1

450
2008 > 2019
REAR
1

MODEL: YZ 450 F
FROM > TO: 2008 > 2019
CC: 450
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1
