REAR

FRONT

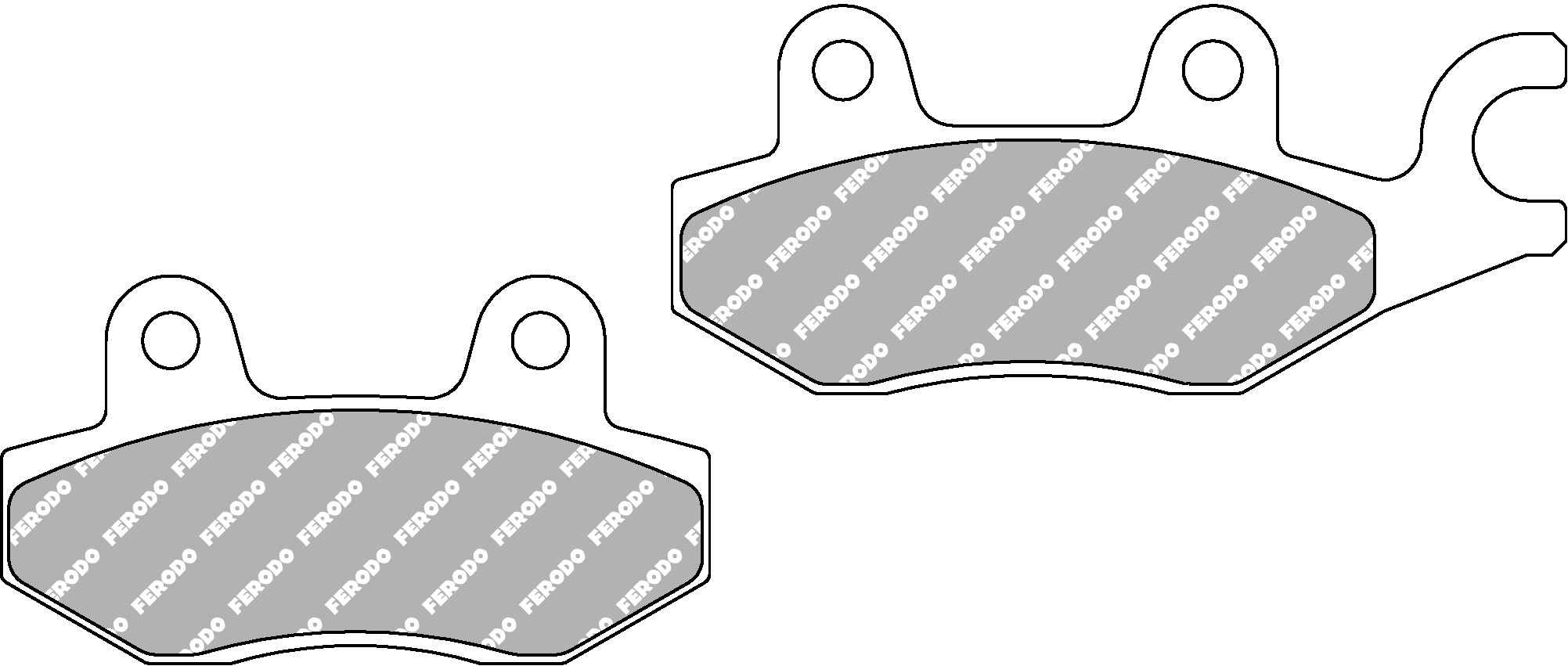

FDB631


96.8mm = 3.811"
42.2mm = 1.661"
7.6mm = 0.299"
76.5mm = 3.012"
42.2mm = 1.661"
7.6mm = 0.299"
NOTE: May 2020: CP1 Out of range
COMPOUND STATUS
Argento
AG
Available
Eco friction
EF
Available
Platinum
P
Available
Sintergrip ROAD
ST
Available
Maxi scooter
SM
Available
Sintergrip OFF-ROAD
SG
Available
Organic Racing
CPRO
Mto
MATERIAL COMPARISON
SHAPE
THICKNESS mm
NOTES
8.8
with slot
Coupled set
BRAKING
725
BREMBO
07YA20
BREMBO
07YA22
BREMBO
7071
BRENTA
4064
BRENTA
3064
CL BRAKES
2326
CL BRAKES
3036
CL BRAKES
3086
COBREQ
N-940
EBC
FA165
FRAS-LE
PD/861
GALFER
FD117
GOLD FREN
009
GOLD FREN
088
LUCAS/TRW
MCB615
NEWFREN
FD0163
SBS
688
SBS
638
SBS
134
SBS
633
VESRAH
VD-250
OEM Cagiva
8000 66785
OEM Honda
06455 KEB 901
OEM Honda
06455 KEB 900
OEM Kawasaki
43082 0175
OEM Kawasaki
43082 0081
OEM Suzuki
69100 31820
OEM Suzuki
59100 05820
OEM Triumph
2020071T0301
OEM Triumph
T2020560
OEM Triumph
T2020555
OEM Yamaha
3LD W0046 01
OEM Yamaha
3LD W0045 10

FDB631 MATERIALS

7 PART(S) FOUND
FRONT / REAR
FDB631SG
SG: Sintered/Off-Road

FRONT / REAR
FDB631ST
ST: Sintered/Road

FRONT / REAR
FDB631SM
SM: Sintered/Road/Maxiscooter

FRONT / REAR
FDB631P
P: Mid-metallic/Road

FRONT / REAR
FDB631AG
AG: Mid-metallic/Road

FRONT / REAR
FDB631EF
EF: Mid-metallic/Road

FRONT / REAR
FDB631CPRO
CPRO: Ceramic/Racing

FDB631 APPLICATION

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
250
2008 > 2011
FRONT
1
right

MODEL: Caffe Nero 250
FROM > TO: 2008 > 2011
CC: 250
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: right

250
2008 > 2011
FRONT
FDB631
1
left

MODEL: Caffe Nero 250
FROM > TO: 2008 > 2011
CC: 250
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: left

250
2008 > 2011
REAR
1

MODEL: Caffe Nero 250
FROM > TO: 2008 > 2011
CC: 250
FRONT / REAR: rear
CODE: FDB2148
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
498
29
1995 >
FRONT
1

MODEL: Canyon 500
FROM > TO: 1995 >
CC: 498
KW: 29
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

498
29
1995 >
REAR
FDB631
1

MODEL: Canyon 500
FROM > TO: 1995 >
CC: 498
KW: 29
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

601
28
1996 > 1997
FRONT
1

MODEL: Canyon 600
FROM > TO: 1996 > 1997
CC: 601
KW: 28
FRONT / REAR: front
CODE: FDB663
NUM SET: 1

601
28
1996 > 1997
REAR
FDB631
1

MODEL: Canyon 600
FROM > TO: 1996 > 1997
CC: 601
KW: 28
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1997 >
FRONT
1

MODEL: CANYON 900 I.E.
FROM > TO: 1997 >
CC: 900
FRONT / REAR: front
CODE: FDB663
NUM SET: 1

900
1997 >
REAR
FDB631
1

MODEL: CANYON 900 I.E.
FROM > TO: 1997 >
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

904
50
1991 >
FRONT
1

MODEL: Elefant 900 i.e. GT
FROM > TO: 1991 >
CC: 904
KW: 50
FRONT / REAR: front
CODE: FDB663
NUM SET: 1

904
50
1991 >
REAR
FDB631
1

MODEL: Elefant 900 i.e. GT
FROM > TO: 1991 >
CC: 904
KW: 50
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

904
54
1999 >
FRONT
2

MODEL: Gran Canyon
FROM > TO: 1999 >
CC: 904
KW: 54
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

904
54
1999 >
REAR
FDB631
1

MODEL: Gran Canyon
FROM > TO: 1999 >
CC: 904
KW: 54
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

906
1990 >
FRONT
1

MODEL: ELEFANT 906
FROM > TO: 1990 >
CC: 906
FRONT / REAR: front
CODE: FDB663
NUM SET: 1

906
1990 >
REAR
FDB631
1

MODEL: ELEFANT 906
FROM > TO: 1990 >
CC: 906
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

996
73
2001 >
FRONT
2

MODEL: Navigator 1000 (M5)
FROM > TO: 2001 >
CC: 996
KW: 73
FRONT / REAR: front
CODE: FDB664
NUM SET: 2

996
73
2001 >
REAR
FDB631
1

MODEL: Navigator 1000 (M5)
FROM > TO: 2001 >
CC: 996
KW: 73
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

996
73
2000 > 2005
FRONT
2

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 > 2005
CC: 996
KW: 73
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

996
73
2000 > 2005
REAR
FDB631
1

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 > 2005
CC: 996
KW: 73
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
500
2011 > 2012
FRONT
1
right

MODEL: CF 500 (Terracross)
FROM > TO: 2011 > 2012
CC: 500
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: right

500
2011 > 2012
FRONT
FDB631
1
left

MODEL: CF 500 (Terracross)
FROM > TO: 2011 > 2012
CC: 500
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: left

500
2011 > 2012
REAR
1

MODEL: CF 500 (Terracross)
FROM > TO: 2011 > 2012
CC: 500
FRONT / REAR: rear
CODE: FDB2193
NUM SET: 1

500
2010 > 2012
FRONT
1
left

MODEL: CF 500-5 (Rancher 500 UTV)
FROM > TO: 2010 > 2012
CC: 500
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

500
2010 > 2012
FRONT
FDB631
1
right

MODEL: CF 500-5 (Rancher 500 UTV)
FROM > TO: 2010 > 2012
CC: 500
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

500
2010 > 2012
REAR
1

MODEL: CF 500-5 (Rancher 500 UTV)
FROM > TO: 2010 > 2012
CC: 500
FRONT / REAR: rear
CODE: FDB2193
NUM SET: 1

550
2015 > 2015
FRONT
1
left

MODEL: CF 500 UU-A UForce - side by side
FROM > TO: 2015 > 2015
CC: 550
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

550
2015 > 2015
FRONT
FDB631
1
right

MODEL: CF 500 UU-A UForce - side by side
FROM > TO: 2015 > 2015
CC: 550
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right


MODEL: CF 600 ZForce / ZForce EX - side by side
FROM > TO: 2013 > 2015
CC: 600
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

600
2013 > 2015
FRONT
FDB631
1
right

MODEL: CF 600 ZForce / ZForce EX - side by side
FROM > TO: 2013 > 2015
CC: 600
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

625
2011 > 2012
FRONT
1
right

MODEL: CF 625-3 (Z6 Terracross)
FROM > TO: 2011 > 2012
CC: 625
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: right

625
2011 > 2012
FRONT
FDB631
1
left

MODEL: CF 625-3 (Z6 Terracross)
FROM > TO: 2011 > 2012
CC: 625
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: left

625
2011 > 2012
REAR
1

MODEL: CF 625-3 (Z6 Terracross)
FROM > TO: 2011 > 2012
CC: 625
FRONT / REAR: rear
CODE: FDB2193
NUM SET: 1

800
2015 >
FRONT
1
left

MODEL: CF 800 EX ZForce - side by side
FROM > TO: 2015 >
CC: 800
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

800
2015 >
FRONT
FDB631
1
right

MODEL: CF 800 EX ZForce - side by side
FROM > TO: 2015 >
CC: 800
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

800
2013 > 2015
FRONT
1
left

MODEL: CF 800 UU-A UForce - side by side
FROM > TO: 2013 > 2015
CC: 800
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

800
2013 > 2015
FRONT
FDB631
1
right

MODEL: CF 800 UU-A UForce - side by side
FROM > TO: 2013 > 2015
CC: 800
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
250
2006 >
FRONT
1

MODEL: 250 XS
FROM > TO: 2006 >
CC: 250
FRONT / REAR: front
CODE: FDB2184
NUM SET: 1

250
2006 >
REAR
FDB631
1

MODEL: 250 XS
FROM > TO: 2006 >
CC: 250
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
124
10
2004 >
FRONT
1

MODEL: Roadwin 125
FROM > TO: 2004 >
CC: 124
KW: 10
FRONT / REAR: front
CODE: FDB664
NUM SET: 1

124
10
2004 >
REAR
FDB631
1

MODEL: Roadwin 125
FROM > TO: 2004 >
CC: 124
KW: 10
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
150
2002 > 2009
REAR
FDB631
1

MODEL: CXL 150 Yukon II/Challenger
FROM > TO: 2002 > 2009
CC: 150
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

150
2005 > 2006
REAR
FDB631
1

MODEL: RXL 150 Viper
FROM > TO: 2005 > 2006
CC: 150
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

150
2005 > 2009
REAR
FDB631
1

MODEL: RXL 150 Viper R
FROM > TO: 2005 > 2009
CC: 150
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
50
1994 > 2000
FRONT
FDB631
1

MODEL: NSR 50
FROM > TO: 1994 > 2000
CC: 50
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

80
1993 > 1998
FRONT
FDB631
1

MODEL: NSR 80 R
FROM > TO: 1993 > 1998
CC: 80
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

80
1993 > 1998
REAR
1

MODEL: NSR 80 R
FROM > TO: 1993 > 1998
CC: 80
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

100
1999 >
FRONT
FDB631
1

MODEL: SUPRA 100 Also Innova, Revo, NF
FROM > TO: 1999 >
CC: 100
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2001 >
FRONT
FDB631
1

MODEL: XL 125 V Varadero (JC49)
FROM > TO: 2001 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2001 >
REAR
1

MODEL: XL 125 V Varadero (JC49)
FROM > TO: 2001 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2143
NUM SET: 1

125
8
2015 > 2016
FRONT
FDB631
1

MODEL: CB 125
FROM > TO: 2015 > 2016
CC: 125
KW: 8
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

125
11
1999 >
FRONT
FDB631
1

MODEL: VT 125 C Shadow (JC31)
FROM > TO: 1999 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2001 >
FRONT
FDB631
1

MODEL: XL 125 V Varadero (JC32A)
FROM > TO: 2001 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2001 >
REAR
1

MODEL: XL 125 V Varadero (JC32A)
FROM > TO: 2001 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2143
NUM SET: 1

150
2001 > 2003
FRONT
FDB631
1

MODEL: NSR 150
FROM > TO: 2001 > 2003
CC: 150
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

150
2001 > 2003
REAR
1

MODEL: NSR 150
FROM > TO: 2001 > 2003
CC: 150
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

200
12
2003 > 2004
FRONT
FDB631
1

MODEL: TA 200 Phantom Thai-made; Ta Shadow in AUS
FROM > TO: 2003 > 2004
CC: 200
KW: 12
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

200
12
2003 > 2004
REAR
FDB631
1

MODEL: TA 200 Phantom Thai-made; Ta Shadow in AUS
FROM > TO: 2003 > 2004
CC: 200
KW: 12
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2010 >
FRONT
FDB631
1

MODEL: Electric GEM 4.0 Electric
FROM > TO: 2010 >
CC: 0
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

2010 >
REAR
FDB631
1

MODEL: Electric GEM 4.0 Electric
FROM > TO: 2010 >
CC: 0
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

125
2006 >
FRONT
1
left

MODEL: MS3 125
FROM > TO: 2006 >
CC: 125
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

125
2006 >
FRONT
FDB631
1
right

MODEL: MS3 125
FROM > TO: 2006 >
CC: 125
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

125
2006 >
REAR
FDB631
1

MODEL: MS3 125
FROM > TO: 2006 >
CC: 125
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

250
2006 >
FRONT
1
left

MODEL: MS3 250
FROM > TO: 2006 >
CC: 250
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

250
2006 >
FRONT
FDB631
1
right

MODEL: MS3 250
FROM > TO: 2006 >
CC: 250
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

250
2006 >
REAR
FDB631
1

MODEL: MS3 250
FROM > TO: 2006 >
CC: 250
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
2008 > 2009
FRONT
FDB631
1

MODEL: YY 125
FROM > TO: 2008 > 2009
CC: 125
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
2008 > 2009
REAR
FDB631
1

MODEL: YY 125
FROM > TO: 2008 > 2009
CC: 125
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

150
2008 > 2009
FRONT
FDB631
1

MODEL: YY 150
FROM > TO: 2008 > 2009
CC: 150
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

150
2008 > 2009
REAR
FDB631
1

MODEL: YY 150
FROM > TO: 2008 > 2009
CC: 150
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

250
2008 > 2009
FRONT
FDB631
1

MODEL: YY 250/250 A
FROM > TO: 2008 > 2009
CC: 250
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

250
2008 > 2009
REAR
FDB631
1

MODEL: YY 250/250 A
FROM > TO: 2008 > 2009
CC: 250
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
115
1998 > 1999
FRONT
FDB631
1

MODEL: KAZER 115 R
FROM > TO: 1998 > 1999
CC: 115
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
2000 >
FRONT
FDB631
1

MODEL: BN 125 A ELIMINATOR
FROM > TO: 2000 >
CC: 125
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2019 >
FRONT
FDB631
1

MODEL: Ninja
FROM > TO: 2019 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2019 >
REAR
FDB631
1

MODEL: Ninja
FROM > TO: 2019 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

125
11
2019 >
FRONT
FDB631
1

MODEL: Z 125
FROM > TO: 2019 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

125
11
2019 >
REAR
FDB631
1

MODEL: Z 125
FROM > TO: 2019 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

249
24
2008 > 2012
FRONT
FDB631
1

MODEL: Ninja 250 R (EX250K)
FROM > TO: 2008 > 2012
CC: 249
KW: 24
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

249
24
2008 > 2012
REAR
FDB631
1

MODEL: Ninja 250 R (EX250K)
FROM > TO: 2008 > 2012
CC: 249
KW: 24
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

249
21
2015 >
FRONT
FDB631
1

MODEL: Ninja 250 SL (BX250A)
FROM > TO: 2015 >
CC: 249
KW: 21
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

249
21
2015 >
REAR
FDB631
1

MODEL: Ninja 250 SL (BX250A)
FROM > TO: 2015 >
CC: 249
KW: 21
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

249
21
2015 >
FRONT
FDB631
1

MODEL: Z 250 SL (BR250E)
FROM > TO: 2015 >
CC: 249
KW: 21
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

249
21
2015 >
REAR
FDB631
1

MODEL: Z 250 SL (BR250E)
FROM > TO: 2015 >
CC: 249
KW: 21
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

296
29
2013 >
FRONT
FDB631
1

MODEL: Ninja 300 (EX300A)
FROM > TO: 2013 >
CC: 296
KW: 29
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

296
29
2013 >
REAR
FDB631
1

MODEL: Ninja 300 (EX300A)
FROM > TO: 2013 >
CC: 296
KW: 29
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

296
29
2017 >
FRONT
1

MODEL: Versys-X 300
FROM > TO: 2017 >
CC: 296
KW: 29
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

296
29
2017 >
REAR
FDB631
1

MODEL: Versys-X 300
FROM > TO: 2017 >
CC: 296
KW: 29
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

296
29
2015 >
FRONT
FDB631
1

MODEL: Z 300 (ER300A)
FROM > TO: 2015 >
CC: 296
KW: 29
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

296
29
2015 >
REAR
FDB631
1

MODEL: Z 300 (ER300A)
FROM > TO: 2015 >
CC: 296
KW: 29
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

300
1989 > 2004
FRONT
FDB631
1

MODEL: KLF 300 BAYOU 4x4 C Series (right)
FROM > TO: 1989 > 2004
CC: 300
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

399
33
2019 >
FRONT
FDB631
1

MODEL: Z 400
FROM > TO: 2019 >
CC: 399
KW: 33
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

399
33
2019 >
REAR
FDB631
1

MODEL: Z 400
FROM > TO: 2019 >
CC: 399
KW: 33
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

400
1993 > 1999
FRONT
FDB631
1

MODEL: KLF 400 BAYOU 4x4 B Series (right)
FROM > TO: 1993 > 1999
CC: 400
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

400
33
2018 >
FRONT
FDB631
1

MODEL: Ninja 400 Also KRT model
FROM > TO: 2018 >
CC: 400
KW: 33
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

400
33
2018 >
REAR
FDB631
1

MODEL: Ninja 400 Also KRT model
FROM > TO: 2018 >
CC: 400
KW: 33
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

650
2008 >
FRONT
1

MODEL: KLR 650 (USA model)
FROM > TO: 2008 >
CC: 650
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

650
2008 >
REAR
FDB631
1

MODEL: KLR 650 (USA model)
FROM > TO: 2008 >
CC: 650
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

650
2008 >
FRONT
1

MODEL: KLR 650 A-B-C
FROM > TO: 2008 >
CC: 650
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

650
2008 >
REAR
FDB631
1

MODEL: KLR 650 A-B-C
FROM > TO: 2008 >
CC: 650
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

650
2007 > 2008
FRONT
1
left

MODEL: KVF 650 Brute Force 4X4i All models
FROM > TO: 2007 > 2008
CC: 650
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

650
2007 > 2008
FRONT
FDB631
1
right

MODEL: KVF 650 Brute Force 4X4i All models
FROM > TO: 2007 > 2008
CC: 650
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right


MODEL: KRF 750 Teryx 4x4 All mod.-side by side
FROM > TO: 2008 >
CC: 750
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

750
2008 >
FRONT
FDB631
1
right

MODEL: KRF 750 Teryx 4x4 All mod.-side by side
FROM > TO: 2008 >
CC: 750
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

750
2005 > 2010
FRONT
1
left

MODEL: KVF 750 BRUTE FORCE All Models
FROM > TO: 2005 > 2010
CC: 750
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

750
2005 > 2010
FRONT
FDB631
1
right

MODEL: KVF 750 BRUTE FORCE All Models
FROM > TO: 2005 > 2010
CC: 750
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
249
13
2014 >
FRONT
1

MODEL: Blackster 250
FROM > TO: 2014 >
CC: 249
KW: 13
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

249
13
2014 >
REAR
FDB631
1

MODEL: Blackster 250
FROM > TO: 2014 >
CC: 249
KW: 13
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
7
2010 >
FRONT
1

MODEL: Like 125 (KN25AA)
FROM > TO: 2010 >
CC: 125
KW: 7
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

125
7
2010 >
REAR
FDB631
1

MODEL: Like 125 (KN25AA)
FROM > TO: 2010 >
CC: 125
KW: 7
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

200
9
2010 >
FRONT
1

MODEL: Like 200i LX
FROM > TO: 2010 >
CC: 200
KW: 9
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

200
9
2010 >
REAR
FDB631
1

MODEL: Like 200i LX
FROM > TO: 2010 >
CC: 200
KW: 9
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

251
16
2006 > 2008
FRONT
1
left

MODEL: People S 250 i (B5)
FROM > TO: 2006 > 2008
CC: 251
KW: 16
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

251
16
2006 > 2008
FRONT
FDB631
1
right

MODEL: People S 250 i (B5)
FROM > TO: 2006 > 2008
CC: 251
KW: 16
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

251
16
2006 > 2008
REAR
1

MODEL: People S 250 i (B5)
FROM > TO: 2006 > 2008
CC: 251
KW: 16
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

270
18
2008 > 2010
FRONT
1
left

MODEL: People S 300i (D2)
FROM > TO: 2008 > 2010
CC: 270
KW: 18
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

270
18
2008 > 2010
FRONT
FDB631
1
right

MODEL: People S 300i (D2)
FROM > TO: 2008 > 2010
CC: 270
KW: 18
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

270
18
2008 > 2010
REAR
FDB631
1

MODEL: People S 300i (D2)
FROM > TO: 2008 > 2010
CC: 270
KW: 18
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
115
1999 >
FRONT
FDB631
1

MODEL: KRISS 115
FROM > TO: 1999 >
CC: 115
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
600
2010 > 2011
FRONT
2

MODEL: RS 6 4WD
FROM > TO: 2010 > 2011
CC: 600
FRONT / REAR: front
CODE: FDB497
NUM SET: 2

600
2010 > 2011
FRONT
FDB631
1

MODEL: RS 6 4WD
FROM > TO: 2010 > 2011
CC: 600
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
9
2014 >
FRONT
FDB631
1

MODEL: UH 125 Burgman ABS (C8)
FROM > TO: 2014 >
CC: 125
KW: 9
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

125
9
2014 >
REAR
1

MODEL: UH 125 Burgman ABS (C8)
FROM > TO: 2014 >
CC: 125
KW: 9
FRONT / REAR: rear
CODE: FDB2148
NUM SET: 1
SYSTEM: Nissin

200
14
2014 >
FRONT
FDB631
1

MODEL: UH 200 Burgman ABS
FROM > TO: 2014 >
CC: 200
KW: 14
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SYSTEM: Nissin

200
14
2014 >
REAR
1

MODEL: UH 200 Burgman ABS
FROM > TO: 2014 >
CC: 200
KW: 14
FRONT / REAR: rear
CODE: FDB2148
NUM SET: 1
SYSTEM: Nissin

250
2008 >
FRONT
1
left

MODEL: AN 250 8 Skywave SS
FROM > TO: 2008 >
CC: 250
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

250
2008 >
FRONT
FDB631
1
right

MODEL: AN 250 8 Skywave SS
FROM > TO: 2008 >
CC: 250
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

250
2008 >
REAR
1

MODEL: AN 250 8 Skywave SS
FROM > TO: 2008 >
CC: 250
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1

250
2007 > 2008
FRONT
1
left

MODEL: AN 250 Skywave Type M (BA-CJ45A)
FROM > TO: 2007 > 2008
CC: 250
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

250
2007 > 2008
FRONT
FDB631
1
right

MODEL: AN 250 Skywave Type M (BA-CJ45A)
FROM > TO: 2007 > 2008
CC: 250
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

MODEL: AN 250 Skywave Type M (BA-CJ45A)
FROM > TO: 2007 > 2008
CC: 250
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1

250
2007 > 2008
FRONT
1
left

MODEL: AN 250 Skywave Type S (BA-CJ44A)
FROM > TO: 2007 > 2008
CC: 250
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

250
2007 > 2008
FRONT
FDB631
1
right

MODEL: AN 250 Skywave Type S (BA-CJ44A)
FROM > TO: 2007 > 2008
CC: 250
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

MODEL: AN 250 Skywave Type S (BA-CJ44A)
FROM > TO: 2007 > 2008
CC: 250
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1

300
2002 >
FRONT
1
left

MODEL: LT-F 300 KING QUAD
FROM > TO: 2002 >
CC: 300
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

300
2002 >
FRONT
FDB631
1
right

MODEL: LT-F 300 KING QUAD
FROM > TO: 2002 >
CC: 300
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

400
2007 >
FRONT
1
left

MODEL: AN 400 BURGMAN/SKYWAVE ABS
FROM > TO: 2007 >
CC: 400
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

400
2007 >
FRONT
FDB631
1
right

MODEL: AN 400 BURGMAN/SKYWAVE ABS
FROM > TO: 2007 >
CC: 400
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right
SYSTEM: Nissin

MODEL: AN 400 BURGMAN/SKYWAVE ABS
FROM > TO: 2007 >
CC: 400
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1

400
25
2007 >
FRONT
1
left

MODEL: Burgman 400 Comfort Edition
FROM > TO: 2007 >
CC: 400
KW: 25
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

400
25
2007 >
FRONT
FDB631
1
right

MODEL: Burgman 400 Comfort Edition
FROM > TO: 2007 >
CC: 400
KW: 25
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right
SYSTEM: Nissin

MODEL: Burgman 400 Comfort Edition
FROM > TO: 2007 >
CC: 400
KW: 25
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1

400
23
2017 >
FRONT
1
left

MODEL: AN 400 Burgman (AL8)
FROM > TO: 2017 >
CC: 400
KW: 23
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

400
23
2017 >
FRONT
FDB631
1
right

MODEL: AN 400 Burgman (AL8)
FROM > TO: 2017 >
CC: 400
KW: 23
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

400
23
2017 >
REAR
1

MODEL: AN 400 Burgman (AL8)
FROM > TO: 2017 >
CC: 400
KW: 23
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1

450
2006 >
FRONT
1
left

MODEL: LT-R 450 K/Z
FROM > TO: 2006 >
CC: 450
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

450
2006 >
FRONT
FDB631
1
right

MODEL: LT-R 450 K/Z
FROM > TO: 2006 >
CC: 450
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

450
2006 >
REAR
1

MODEL: LT-R 450 K/Z
FROM > TO: 2006 >
CC: 450
FRONT / REAR: rear
CODE: FDB2016
NUM SET: 1

500
2000 > 2001
FRONT
1
left

MODEL: LT-A 500 F QUADMASTER
FROM > TO: 2000 > 2001
CC: 500
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

500
2000 > 2001
FRONT
FDB631
1
right

MODEL: LT-A 500 F QUADMASTER
FROM > TO: 2000 > 2001
CC: 500
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

500
1998 > 2002
FRONT
1

MODEL: LT-F 500 FW/FX/F1 QUADRUNNER
FROM > TO: 1998 > 2002
CC: 500
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

500
1998 > 2002
FRONT
FDB631
1

MODEL: LT-F 500 FW/FX/F1 QUADRUNNER
FROM > TO: 1998 > 2002
CC: 500
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

779
20
1991 >
FRONT
1

MODEL: DR 800 (SR43B)
FROM > TO: 1991 >
CC: 779
KW: 20
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

779
20
1991 >
REAR
FDB631
1

MODEL: DR 800 (SR43B)
FROM > TO: 1991 >
CC: 779
KW: 20
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
750
1991 > 1992
FRONT
2

MODEL: DAYTONA 750 SPORT
FROM > TO: 1991 > 1992
CC: 750
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

750
1991 > 1992
REAR
FDB631
1

MODEL: DAYTONA 750 SPORT
FROM > TO: 1991 > 1992
CC: 750
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

750
1992 > 1998
FRONT
1
left

MODEL: TRIDENT 750
FROM > TO: 1992 > 1998
CC: 750
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

750
1992 > 1998
FRONT
FDB631
1
right

MODEL: TRIDENT 750
FROM > TO: 1992 > 1998
CC: 750
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

750
1992 > 1998
REAR
FDB631
1

MODEL: TRIDENT 750
FROM > TO: 1992 > 1998
CC: 750
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

885
1994 >
FRONT
2

MODEL: Speed Triple 885
FROM > TO: 1994 >
CC: 885
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

885
1994 >
REAR
FDB631
1

MODEL: Speed Triple 885
FROM > TO: 1994 >
CC: 885
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

885
63
1993 > 1998
FRONT
1
left

MODEL: Tiger 900 (T400)
FROM > TO: 1993 > 1998
CC: 885
KW: 63
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

885
63
1993 > 1998
FRONT
FDB631
1
right

MODEL: Tiger 900 (T400)
FROM > TO: 1993 > 1998
CC: 885
KW: 63
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

885
63
1993 > 1998
REAR
FDB631
1

MODEL: Tiger 900 (T400)
FROM > TO: 1993 > 1998
CC: 885
KW: 63
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1993 > 1996
FRONT
2

MODEL: DAYTONA 900
FROM > TO: 1993 > 1996
CC: 900
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

900
1993 > 1996
REAR
FDB631
1

MODEL: DAYTONA 900
FROM > TO: 1993 > 1996
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1993 >
FRONT
1
left

MODEL: DAYTONA SPRINT 900
FROM > TO: 1993 >
CC: 900
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

900
1993 >
FRONT
FDB631
1
right

MODEL: DAYTONA SPRINT 900
FROM > TO: 1993 >
CC: 900
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

900
1993 >
REAR
FDB631
1

MODEL: DAYTONA SPRINT 900
FROM > TO: 1993 >
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1994 > 1998
FRONT
2

MODEL: DAYTONA SPRINT 900
FROM > TO: 1994 > 1998
CC: 900
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

900
1994 > 1998
REAR
FDB631
1

MODEL: DAYTONA SPRINT 900
FROM > TO: 1994 > 1998
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1994 > 1997
FRONT
2

MODEL: DAYTONA SUPER III 900
FROM > TO: 1994 > 1997
CC: 900
FRONT / REAR: front
CODE: FDB864
NUM SET: 2

900
1994 > 1997
REAR
FDB631
1

MODEL: DAYTONA SUPER III 900
FROM > TO: 1994 > 1997
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1994 >
FRONT
2

MODEL: Speed Triple 900
FROM > TO: 1994 >
CC: 900
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

900
1994 >
REAR
FDB631
1

MODEL: Speed Triple 900
FROM > TO: 1994 >
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1993 > 1998
FRONT
1
left

MODEL: TRIDENT 900 SPRINTER
FROM > TO: 1993 > 1998
CC: 900
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

900
1993 > 1998
FRONT
FDB631
1
right

MODEL: TRIDENT 900 SPRINTER
FROM > TO: 1993 > 1998
CC: 900
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

900
1993 > 1998
REAR
FDB631
1

MODEL: TRIDENT 900 SPRINTER
FROM > TO: 1993 > 1998
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1993 > 1995
FRONT
1
left

MODEL: TROPHY 900
FROM > TO: 1993 > 1995
CC: 900
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

900
1993 > 1995
FRONT
FDB631
1
right

MODEL: TROPHY 900
FROM > TO: 1993 > 1995
CC: 900
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

900
1993 > 1995
REAR
FDB631
1

MODEL: TROPHY 900
FROM > TO: 1993 > 1995
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

900
1996 > 1998
FRONT
2

MODEL: TROPHY 900
FROM > TO: 1996 > 1998
CC: 900
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

900
1996 > 1998
REAR
FDB631
1

MODEL: TROPHY 900
FROM > TO: 1996 > 1998
CC: 900
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1


MODEL: SPRINT RS 955 double sided swing arm up to VIN 161317
FROM > TO: 1999 > 2002
CC: 955
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

MODEL: SPRINT RS 955 double sided swing arm up to VIN 161317
FROM > TO: 1999 > 2002
CC: 955
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

955
2001 > 2006
FRONT
2

MODEL: TIGER 955
FROM > TO: 2001 > 2006
CC: 955
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

955
2001 > 2006
REAR
FDB631
1

MODEL: TIGER 955
FROM > TO: 2001 > 2006
CC: 955
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

1000
1991 > 1992
FRONT
2

MODEL: DAYTONA 1000 SPORT
FROM > TO: 1991 > 1992
CC: 1000
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

1000
1991 > 1992
REAR
FDB631
1

MODEL: DAYTONA 1000 SPORT
FROM > TO: 1991 > 1992
CC: 1000
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

1050
85
2008 >
FRONT
2

MODEL: Tiger 1050 SE (115NG)
FROM > TO: 2008 >
CC: 1050
KW: 85
FRONT / REAR: front
CODE: FDB2158
NUM SET: 2

1050
85
2008 >
REAR
FDB631
1

MODEL: Tiger 1050 SE (115NG)
FROM > TO: 2008 >
CC: 1050
KW: 85
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

1050
92
2013 >
FRONT
2

MODEL: Tiger 1050 Sport (115NG)
FROM > TO: 2013 >
CC: 1050
KW: 92
FRONT / REAR: front
CODE: FDB2158
NUM SET: 2
SYSTEM: NISSIN

1050
92
2013 >
REAR
FDB631
1

MODEL: Tiger 1050 Sport (115NG)
FROM > TO: 2013 >
CC: 1050
KW: 92
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

1200
1993 > 1998
FRONT
2

MODEL: DAYTONA 1200
FROM > TO: 1993 > 1998
CC: 1200
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

1200
1993 > 1998
REAR
FDB631
1

MODEL: DAYTONA 1200
FROM > TO: 1993 > 1998
CC: 1200
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

1200
1993 > 1995
FRONT
1
left

MODEL: TROPHY 1200
FROM > TO: 1993 > 1995
CC: 1200
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

1200
1993 > 1995
FRONT
FDB631
1
right

MODEL: TROPHY 1200
FROM > TO: 1993 > 1995
CC: 1200
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

1200
1993 > 1995
REAR
FDB631
1

MODEL: TROPHY 1200
FROM > TO: 1993 > 1995
CC: 1200
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

1200
1996 > 2001
FRONT
2

MODEL: TROPHY 1200
FROM > TO: 1996 > 2001
CC: 1200
FRONT / REAR: front
CODE: FDB557
NUM SET: 2

1200
1996 > 2001
REAR
FDB631
1

MODEL: TROPHY 1200
FROM > TO: 1996 > 2001
CC: 1200
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
50
1990 > 1991
FRONT
FDB631
1

MODEL: FZR 50
FROM > TO: 1990 > 1991
CC: 50
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

50
1990 > 1991
REAR
1

MODEL: FZR 50
FROM > TO: 1990 > 1991
CC: 50
FRONT / REAR: rear
CODE: FDB386
NUM SET: 1

50
1992 >
FRONT
1

MODEL: FZR 50
FROM > TO: 1992 >
CC: 50
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

50
1992 >
REAR
1

MODEL: FZR 50
FROM > TO: 1992 >
CC: 50
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

50
1997 > 2003
FRONT
FDB631
1

MODEL: TZR 50
FROM > TO: 1997 > 2003
CC: 50
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

249
16
2006 > 2013
FRONT
FDB631
1

MODEL: YBR 250 (RG02)
FROM > TO: 2006 > 2013
CC: 249
KW: 16
FRONT / REAR: front
CODE: FDB631
NUM SET: 1

450
2004 > 2005
FRONT
1
left

MODEL: YFZ 450
FROM > TO: 2004 > 2005
CC: 450
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

450
2004 > 2005
FRONT
FDB631
1
right

MODEL: YFZ 450
FROM > TO: 2004 > 2005
CC: 450
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

450
2004 > 2005
REAR
1

MODEL: YFZ 450
FROM > TO: 2004 > 2005
CC: 450
FRONT / REAR: rear
CODE: FDB381
NUM SET: 1

450
2006 >
FRONT
1
left

MODEL: YFZ 450 - All models
FROM > TO: 2006 >
CC: 450
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

450
2006 >
FRONT
FDB631
1
right

MODEL: YFZ 450 - All models
FROM > TO: 2006 >
CC: 450
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

450
2006 >
REAR
1

MODEL: YFZ 450 - All models
FROM > TO: 2006 >
CC: 450
FRONT / REAR: rear
CODE: FDB2119
NUM SET: 1

450
2004 > 2009
FRONT
1
left

MODEL: YXR 450 RHINO - side by side
FROM > TO: 2004 > 2009
CC: 450
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

450
2004 > 2009
FRONT
FDB631
1
right

MODEL: YXR 450 RHINO - side by side
FROM > TO: 2004 > 2009
CC: 450
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

450
2004 > 2009
REAR
1

MODEL: YXR 450 RHINO - side by side
FROM > TO: 2004 > 2009
CC: 450
FRONT / REAR: rear
CODE: FDB2149
NUM SET: 1

660
2004 > 2007
FRONT
1
left

MODEL: YXR 660 RHINO - side by side
FROM > TO: 2004 > 2007
CC: 660
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

660
2004 > 2007
FRONT
FDB631
1
right

MODEL: YXR 660 RHINO - side by side
FROM > TO: 2004 > 2007
CC: 660
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

660
2004 > 2007
REAR
1

MODEL: YXR 660 RHINO - side by side
FROM > TO: 2004 > 2007
CC: 660
FRONT / REAR: rear
CODE: FDB2149
NUM SET: 1

700
2006 >
FRONT
1
left

MODEL: YFM 700 RAPTOR - All Models
FROM > TO: 2006 >
CC: 700
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

700
2006 >
FRONT
FDB631
1
right

MODEL: YFM 700 RAPTOR - All Models
FROM > TO: 2006 >
CC: 700
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

MODEL: YFM 700 RAPTOR - All Models
FROM > TO: 2006 >
CC: 700
FRONT / REAR: rear
CODE: FDB2235
NUM SET: 1

700
2008 >
FRONT
1
right

MODEL: YXR 700 RHINO - side by side
FROM > TO: 2008 >
CC: 700
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: right

700
2008 >
FRONT
FDB631
1
left

MODEL: YXR 700 RHINO - side by side
FROM > TO: 2008 >
CC: 700
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: left

700
2008 >
REAR
1
right

MODEL: YXR 700 RHINO - side by side
FROM > TO: 2008 >
CC: 700
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1
SIDE: right

700
2008 >
REAR
FDB631
1
left

MODEL: YXR 700 RHINO - side by side
FROM > TO: 2008 >
CC: 700
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1
SIDE: left

750
1989 >
FRONT
1
left

MODEL: XTZ 750 SUPER TENERE
FROM > TO: 1989 >
CC: 750
FRONT / REAR: front
CODE: FDB497
NUM SET: 1
SIDE: left

750
1989 >
FRONT
FDB631
1
right

MODEL: XTZ 750 SUPER TENERE
FROM > TO: 1989 >
CC: 750
FRONT / REAR: front
CODE: FDB631
NUM SET: 1
SIDE: right

750
1989 >
REAR
FDB631
1

MODEL: XTZ 750 SUPER TENERE
FROM > TO: 1989 >
CC: 750
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1
