FRONT

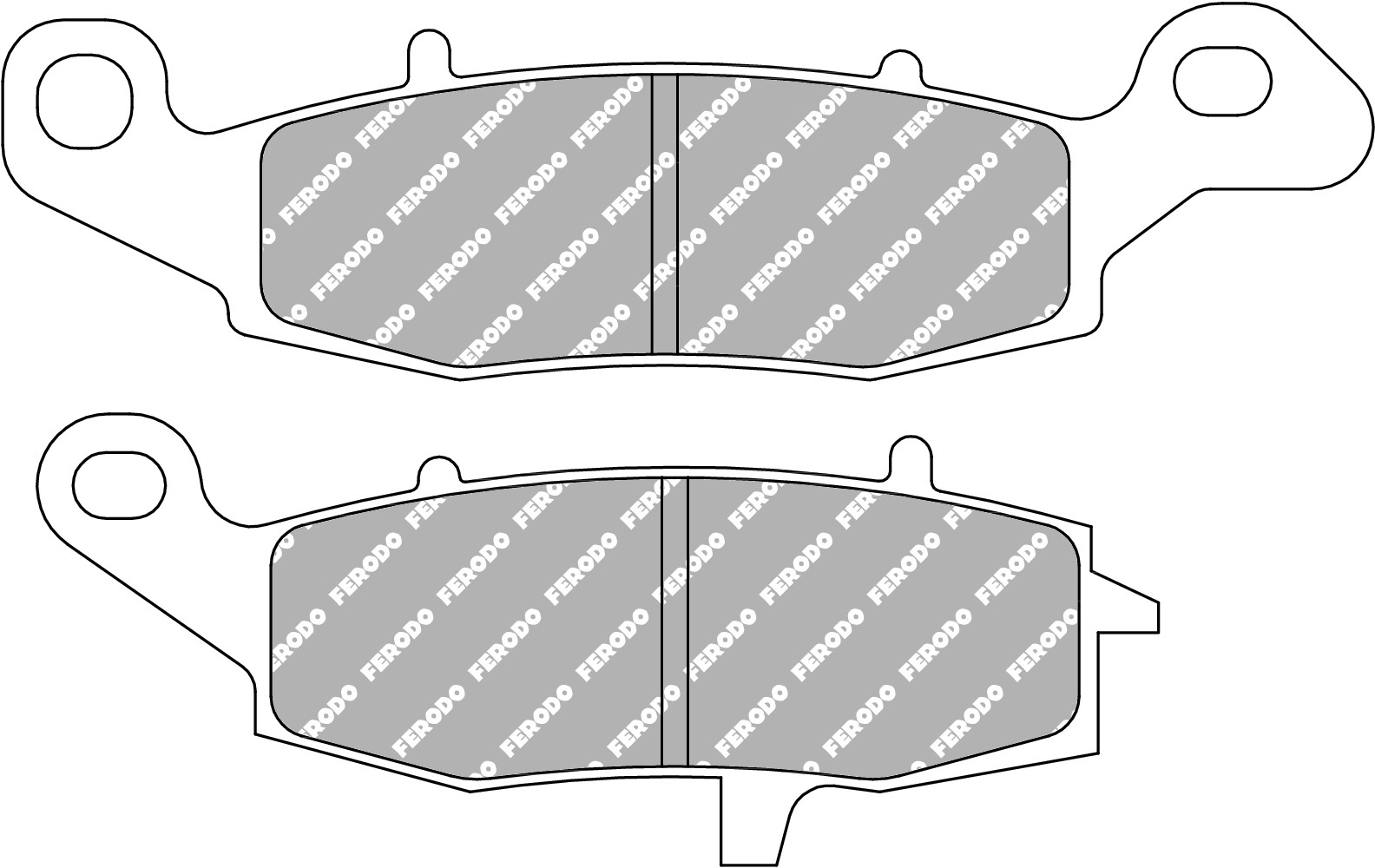

FDB2048P

P: Mid-metallic/Road

133.6mm = 5.260"
36.5mm = 1.437"
8.4mm = 0.331"
109.2mm = 4.299"
44mm = 1.732"
8.4mm = 0.331"
MATERIAL

P

Platinum

DISCOVER MORE
MID-METALLIC compound
Main Use: ROAD (high performance)
Certification : TUV/KBA, ECE R-90
Recommended for: all CC motorcyces
FAMILY SHAPE

FDB2048

DISCOVER
SHAPE
THICKNESS mm
NOTES
FDB2049
Coupled set
BRAKING
782
BREMBO
07KA19
BRENTA
4092
BRENTA
3092
CL BRAKES
2383
EBC
FA229
EBC
FA237
GALFER
FD174
GOLD FREN
104
LUCAS/TRW
MCB682
NEWFREN
FD0228
SBS
705
VESRAH
VD-352
OEM Kawasaki
43082 0061
OEM Kawasaki
43082 1177
OEM Kawasaki
43082 0009
OEM Kawasaki
43082 0050
OEM Kawasaki
43082 1234
OEM Kawasaki
43082 1223
OEM Kawasaki
43082 0051
OEM Kawasaki
43082 1187
OEM Suzuki
59302 33810
OEM Suzuki
59302 33830
OEM Suzuki
59301 33830
OEM Suzuki
59302 33890
OEM Suzuki
59301 33820
OEM Suzuki
59302 33880

FDB2048 OTHER MATERIALS

3 PART(S) FOUND
FRONT
FDB2048ST
ST: Sintered/Road

DISCOVER

FRONT
FDB2048EF
EF: Mid-metallic/Road

DISCOVER

FRONT
FDB2048XRAC
XRAC: Ceramic/Racing

DISCOVER

FDB2048 APPLICATION

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
650NK
650
2012 > 2014
FRONT
FDB2048
1
left

MODEL: 650NK
FROM > TO: 2012 > 2014
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

650NK
650
2012 > 2014
FRONT
FDB2049
1
right

MODEL: 650NK
FROM > TO: 2012 > 2014
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

650NK
650
2012 > 2014
REAR
FDB2012
1

MODEL: 650NK
FROM > TO: 2012 > 2014
CC: 650
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

650TK
650
2013 > 2014
FRONT
FDB2048
1
left

MODEL: 650TK
FROM > TO: 2013 > 2014
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

650TK
650
2013 > 2014
FRONT
FDB2049
1
right

MODEL: 650TK
FROM > TO: 2013 > 2014
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

650TK
650
2013 > 2014
REAR
FDB2012
1

MODEL: 650TK
FROM > TO: 2013 > 2014
CC: 650
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

650TR
650
2013 > 2014
FRONT
FDB2048
1
left

MODEL: 650TR
FROM > TO: 2013 > 2014
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

650TR
650
2013 > 2014
FRONT
FDB2049
1
right

MODEL: 650TR
FROM > TO: 2013 > 2014
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

650TR
650
2013 > 2014
REAR
FDB2012
1

MODEL: 650TR
FROM > TO: 2013 > 2014
CC: 650
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
VN 400 CLASSIC
400
1999 >
FRONT
FDB2048
1

MODEL: VN 400 CLASSIC
FROM > TO: 1999 >
CC: 400
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

ER-5 500
500
2001 >
FRONT
FDB2048
1

MODEL: ER-5 500
FROM > TO: 2001 >
CC: 500
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

ER 6F (EX650C)
649
2009 > 2011
FRONT
FDB2048
1
left

MODEL: ER 6F (EX650C)
FROM > TO: 2009 > 2011
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6F (EX650C)
649
2009 > 2011
FRONT
FDB2049
1
right

MODEL: ER 6F (EX650C)
FROM > TO: 2009 > 2011
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6F (EX650C)
649
2009 > 2011
REAR
FDB2012
1

MODEL: ER 6F (EX650C)
FROM > TO: 2009 > 2011
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ER 6F (EX650E-F)
649
2012 > 2016
FRONT
FDB2048
1
left

MODEL: ER 6F (EX650E-F)
FROM > TO: 2012 > 2016
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6F (EX650E-F)
649
2012 > 2016
FRONT
FDB2049
1
right

MODEL: ER 6F (EX650E-F)
FROM > TO: 2012 > 2016
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6F (EX650E-F)
649
2012 > 2016
REAR
FDB2012
1

MODEL: ER 6F (EX650E-F)
FROM > TO: 2012 > 2016
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ER 6F (EX650A)
649
2006 > 2008
FRONT
FDB2048
1
left

MODEL: ER 6F (EX650A)
FROM > TO: 2006 > 2008
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6F (EX650A)
649
2006 > 2008
FRONT
FDB2049
1
right

MODEL: ER 6F (EX650A)
FROM > TO: 2006 > 2008
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6F (EX650A)
649
2006 > 2008
REAR
FDB2012
1

MODEL: ER 6F (EX650A)
FROM > TO: 2006 > 2008
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ER 6N (ER650A)
649
2005 > 2008
FRONT
FDB2048
1
left

MODEL: ER 6N (ER650A)
FROM > TO: 2005 > 2008
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6N (ER650A)
649
2005 > 2008
FRONT
FDB2049
1
right

MODEL: ER 6N (ER650A)
FROM > TO: 2005 > 2008
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6N (ER650A)
649
2005 > 2008
REAR
FDB2012
1

MODEL: ER 6N (ER650A)
FROM > TO: 2005 > 2008
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ER 6N (ER650C)
649
2009 > 2011
FRONT
FDB2048
1
left

MODEL: ER 6N (ER650C)
FROM > TO: 2009 > 2011
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6N (ER650C)
649
2009 > 2011
FRONT
FDB2049
1
right

MODEL: ER 6N (ER650C)
FROM > TO: 2009 > 2011
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6N (ER650C)
649
2009 > 2011
REAR
FDB2012
1

MODEL: ER 6N (ER650C)
FROM > TO: 2009 > 2011
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ER 6N (ER650E)
649
2012 >
FRONT
FDB2048
1
left

MODEL: ER 6N (ER650E)
FROM > TO: 2012 >
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6N (ER650E)
649
2012 >
FRONT
FDB2049
1
right

MODEL: ER 6N (ER650E)
FROM > TO: 2012 >
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6N (ER650E)
649
2012 >
REAR
FDB2012
1

MODEL: ER 6N (ER650E)
FROM > TO: 2012 >
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ER 6N ABS
649
53
2011 > 2011
FRONT
FDB2048
1
left

MODEL: ER 6N ABS
FROM > TO: 2011 > 2011
CC: 649
KW: 53
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ER 6N ABS
649
53
2011 > 2011
FRONT
FDB2049
1
right

MODEL: ER 6N ABS
FROM > TO: 2011 > 2011
CC: 649
KW: 53
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ER 6N ABS
649
53
2011 > 2011
REAR
FDB2012
1

MODEL: ER 6N ABS
FROM > TO: 2011 > 2011
CC: 649
KW: 53
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

Versys 650 ABS (LE650A)
649
2007 > 2009
FRONT
FDB2048
1
left

MODEL: Versys 650 ABS (LE650A)
FROM > TO: 2007 > 2009
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

Versys 650 ABS (LE650A)
649
2007 > 2009
FRONT
FDB2049
1
right

MODEL: Versys 650 ABS (LE650A)
FROM > TO: 2007 > 2009
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

Versys 650 ABS (LE650A)
649
2007 > 2009
REAR
FDB2012
1
left

MODEL: Versys 650 ABS (LE650A)
FROM > TO: 2007 > 2009
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1
SIDE: left

Versys 650 No ABS(LE650C)
649
2007 > 2014
FRONT
FDB2048
1
left

MODEL: Versys 650 No ABS(LE650C)
FROM > TO: 2007 > 2014
CC: 649
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

Versys 650 No ABS(LE650C)
649
2007 > 2014
FRONT
FDB2049
1
right

MODEL: Versys 650 No ABS(LE650C)
FROM > TO: 2007 > 2014
CC: 649
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

Versys 650 No ABS(LE650C)
649
2007 > 2014
REAR
FDB2012
1

MODEL: Versys 650 No ABS(LE650C)
FROM > TO: 2007 > 2014
CC: 649
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

KLR 650
650
1995 > 2005
FRONT
FDB2048
1

MODEL: KLR 650
FROM > TO: 1995 > 2005
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

KLR 650
650
2008 >
FRONT
FDB497
1

MODEL: KLR 650
FROM > TO: 2008 >
CC: 650
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

KLR 650
650
2008 >
REAR
FDB631
1

MODEL: KLR 650
FROM > TO: 2008 >
CC: 650
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

KLR 650
650
1995 > 2005
REAR
FDB314
1

MODEL: KLR 650
FROM > TO: 1995 > 2005
CC: 650
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

ZR 750 S (ZR750H1)
739
56
2001 >
FRONT
FDB2048
1
left

MODEL: ZR 750 S (ZR750H1)
FROM > TO: 2001 >
CC: 739
KW: 56
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ZR 750 S (ZR750H1)
739
56
2001 >
FRONT
FDB2049
1
right

MODEL: ZR 750 S (ZR750H1)
FROM > TO: 2001 >
CC: 739
KW: 56
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ZR 750 S (ZR750H1)
739
56
2001 >
REAR
FDB2049
1

MODEL: ZR 750 S (ZR750H1)
FROM > TO: 2001 >
CC: 739
KW: 56
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

Z 750 No Abs
748
2004 > 2006
FRONT
FDB2048
1
left

MODEL: Z 750 No Abs
FROM > TO: 2004 > 2006
CC: 748
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

Z 750 No Abs
748
2004 > 2006
FRONT
FDB2049
1
right

MODEL: Z 750 No Abs
FROM > TO: 2004 > 2006
CC: 748
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

Z 750 No Abs
748
2004 > 2006
REAR
FDB2012
1

MODEL: Z 750 No Abs
FROM > TO: 2004 > 2006
CC: 748
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

Z 750 No Abs
748
2007 >
FRONT
FDB570
2

MODEL: Z 750 No Abs
FROM > TO: 2007 >
CC: 748
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

Z 750 No Abs
748
2007 >
REAR
FDB754
1

MODEL: Z 750 No Abs
FROM > TO: 2007 >
CC: 748
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

Z 750 S (ZR750K)
748
2004 > 2006
FRONT
FDB2048
1
left

MODEL: Z 750 S (ZR750K)
FROM > TO: 2004 > 2006
CC: 748
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

Z 750 S (ZR750K)
748
2004 > 2006
FRONT
FDB2049
1
right

MODEL: Z 750 S (ZR750K)
FROM > TO: 2004 > 2006
CC: 748
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

Z 750 S (ZR750K)
748
2004 > 2006
REAR
FDB2012
1

MODEL: Z 750 S (ZR750K)
FROM > TO: 2004 > 2006
CC: 748
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

Z 750 S (ZR750K)
748
2007 >
FRONT
FDB570
2

MODEL: Z 750 S (ZR750K)
FROM > TO: 2007 >
CC: 748
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

Z 750 S (ZR750K)
748
2007 >
REAR
FDB754
1

MODEL: Z 750 S (ZR750K)
FROM > TO: 2007 >
CC: 748
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

ZR 750 ZEPHYR
750
1996 >
FRONT
FDB2048
1

MODEL: ZR 750 ZEPHYR
FROM > TO: 1996 >
CC: 750
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

ZR 750 ZEPHYR
750
1996 >
REAR
FDB481
1

MODEL: ZR 750 ZEPHYR
FROM > TO: 1996 >
CC: 750
FRONT / REAR: rear
CODE: FDB481
NUM SET: 1

ZR-7 750
750
1999 >
FRONT
FDB2048
1
left

MODEL: ZR-7 750
FROM > TO: 1999 >
CC: 750
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ZR-7 750
750
1999 >
FRONT
FDB2049
1
right

MODEL: ZR-7 750
FROM > TO: 1999 >
CC: 750
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ZR-7 750
750
1999 >
REAR
FDB2049
1

MODEL: ZR-7 750
FROM > TO: 1999 >
CC: 750
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 800 CLASSIC
800
1996 >
FRONT
FDB2048
1

MODEL: VN 800 CLASSIC
FROM > TO: 1996 >
CC: 800
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 800 DRIFTER
800
1999 > 2003
FRONT
FDB2048
1

MODEL: VN 800 DRIFTER
FROM > TO: 1999 > 2003
CC: 800
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 800 DRIFTER
800
1999 > 2003
REAR
FDB2049
1

MODEL: VN 800 DRIFTER
FROM > TO: 1999 > 2003
CC: 800
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 900 Classic SE (VN900B)
900
2006 >
FRONT
FDB2048
1

MODEL: VN 900 Classic SE (VN900B)
FROM > TO: 2006 >
CC: 900
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 900 Classic SE (VN900B)
900
2006 >
REAR
FDB2049
1

MODEL: VN 900 Classic SE (VN900B)
FROM > TO: 2006 >
CC: 900
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 900 Custom (VN900C)
903
37
2006 >
FRONT
FDB2048
1

MODEL: VN 900 Custom (VN900C)
FROM > TO: 2006 >
CC: 903
KW: 37
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 900 Custom (VN900C)
903
37
2006 >
REAR
FDB2049
1

MODEL: VN 900 Custom (VN900C)
FROM > TO: 2006 >
CC: 903
KW: 37
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 900 Classic (VN900B)
903
37
2006 >
FRONT
FDB2048
1

MODEL: VN 900 Classic (VN900B)
FROM > TO: 2006 >
CC: 903
KW: 37
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 900 Classic (VN900B)
903
37
2006 >
REAR
FDB2049
1

MODEL: VN 900 Classic (VN900B)
FROM > TO: 2006 >
CC: 903
KW: 37
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 900 Classic LT (VN900D)
903
37
2006 >
FRONT
FDB2048
1

MODEL: VN 900 Classic LT (VN900D)
FROM > TO: 2006 >
CC: 903
KW: 37
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 900 Classic LT (VN900D)
903
37
2006 >
REAR
FDB2049
1

MODEL: VN 900 Classic LT (VN900D)
FROM > TO: 2006 >
CC: 903
KW: 37
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

GPZ 1100
1100
1995 > 1997
FRONT
FDB2048
1
left

MODEL: GPZ 1100
FROM > TO: 1995 > 1997
CC: 1100
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GPZ 1100
1100
1995 > 1997
FRONT
FDB2049
1
right

MODEL: GPZ 1100
FROM > TO: 1995 > 1997
CC: 1100
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GPZ 1100
1100
1995 > 1997
REAR
FDB2012
1

MODEL: GPZ 1100
FROM > TO: 1995 > 1997
CC: 1100
FRONT / REAR: rear
CODE: FDB2012
NUM SET: 1

ZR 1100 ZEPHIR
1100
1997 > 2000
FRONT
FDB2048
2

MODEL: ZR 1100 ZEPHIR
FROM > TO: 1997 > 2000
CC: 1100
FRONT / REAR: front
CODE: FDB2048
NUM SET: 2

ZR 1100 ZEPHIR
1100
1997 > 2000
REAR
FDB481
1

MODEL: ZR 1100 ZEPHIR
FROM > TO: 1997 > 2000
CC: 1100
FRONT / REAR: rear
CODE: FDB481
NUM SET: 1

ZR 1100 ZEPHYR
1100
1996 > 1997
FRONT
FDB2048
1
left

MODEL: ZR 1100 ZEPHYR
FROM > TO: 1996 > 1997
CC: 1100
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

ZR 1100 ZEPHYR
1100
1996 > 1997
FRONT
FDB2049
1
right

MODEL: ZR 1100 ZEPHYR
FROM > TO: 1996 > 1997
CC: 1100
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

ZR 1100 ZEPHYR
1100
1996 > 1997
REAR
FDB481
1

MODEL: ZR 1100 ZEPHYR
FROM > TO: 1996 > 1997
CC: 1100
FRONT / REAR: rear
CODE: FDB481
NUM SET: 1

VN 1500 CLASSIC Fi
1500
1999 >
FRONT
FDB2048
1

MODEL: VN 1500 CLASSIC Fi
FROM > TO: 1999 >
CC: 1500
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 1500 CLASSIC Fi
1500
1999 >
REAR
FDB2049
1

MODEL: VN 1500 CLASSIC Fi
FROM > TO: 1999 >
CC: 1500
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 1500 CLASSIC TOURER/NOMAD
1500
1999 >
FRONT
FDB2048
1
left

MODEL: VN 1500 CLASSIC TOURER/NOMAD
FROM > TO: 1999 >
CC: 1500
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

VN 1500 CLASSIC TOURER/NOMAD
1500
1999 >
FRONT
FDB2049
1
right

MODEL: VN 1500 CLASSIC TOURER/NOMAD
FROM > TO: 1999 >
CC: 1500
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

VN 1500 CLASSIC TOURER/NOMAD
1500
1999 >
REAR
FDB339
1

MODEL: VN 1500 CLASSIC TOURER/NOMAD
FROM > TO: 1999 >
CC: 1500
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

VN 1500 D1/D2 CLASSIC
1500
1996 > 1998
FRONT
FDB2048
1

MODEL: VN 1500 D1/D2 CLASSIC
FROM > TO: 1996 > 1998
CC: 1500
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 1500 D1/D2 CLASSIC
1500
1996 > 1998
REAR
FDB339
1

MODEL: VN 1500 D1/D2 CLASSIC
FROM > TO: 1996 > 1998
CC: 1500
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

VN 1500 DRIFTER
1500
1999 > 2003
FRONT
FDB2048
1

MODEL: VN 1500 DRIFTER
FROM > TO: 1999 > 2003
CC: 1500
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VN 1500 DRIFTER
1500
1999 > 2003
REAR
FDB2049
1

MODEL: VN 1500 DRIFTER
FROM > TO: 1999 > 2003
CC: 1500
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 1600 Classic (VNT60A)
1553
49
2003 >
FRONT
FDB2048
1
left

MODEL: VN 1600 Classic (VNT60A)
FROM > TO: 2003 >
CC: 1553
KW: 49
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

VN 1600 Classic (VNT60A)
1553
49
2003 >
FRONT
FDB2049
1
right

MODEL: VN 1600 Classic (VNT60A)
FROM > TO: 2003 >
CC: 1553
KW: 49
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

VN 1600 Classic (VNT60A)
1553
49
2003 >
REAR
FDB2049
1

MODEL: VN 1600 Classic (VNT60A)
FROM > TO: 2003 >
CC: 1553
KW: 49
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 1600 Nomad/Classic Tourer (VNT60A/T)
1553
49
2005 >
FRONT
FDB2048
1
left

MODEL: VN 1600 Nomad/Classic Tourer (VNT60A/T)
FROM > TO: 2005 >
CC: 1553
KW: 49
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

VN 1600 Nomad/Classic Tourer (VNT60A/T)
1553
49
2005 >
FRONT
FDB2049
1
right

MODEL: VN 1600 Nomad/Classic Tourer (VNT60A/T)
FROM > TO: 2005 >
CC: 1553
KW: 49
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

VN 1600 Nomad/Classic Tourer (VNT60A/T)
1553
49
2005 >
REAR
FDB2049
1

MODEL: VN 1600 Nomad/Classic Tourer (VNT60A/T)
FROM > TO: 2005 >
CC: 1553
KW: 49
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 1700 Classic (VNT70E)
1700
2009 > 2009
FRONT
FDB2048
1
left

MODEL: VN 1700 Classic (VNT70E)
FROM > TO: 2009 > 2009
CC: 1700
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

VN 1700 Classic (VNT70E)
1700
2009 > 2009
FRONT
FDB2049
1
right

MODEL: VN 1700 Classic (VNT70E)
FROM > TO: 2009 > 2009
CC: 1700
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

VN 1700 Classic (VNT70E)
1700
2009 > 2009
REAR
FDB2049
1

MODEL: VN 1700 Classic (VNT70E)
FROM > TO: 2009 > 2009
CC: 1700
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 1700 Classic Tourer/Nomad (VNT70C)
1700
2009 > 2009
FRONT
FDB2048
1
left

MODEL: VN 1700 Classic Tourer/Nomad (VNT70C)
FROM > TO: 2009 > 2009
CC: 1700
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

VN 1700 Classic Tourer/Nomad (VNT70C)
1700
2009 > 2009
FRONT
FDB2049
1
right

MODEL: VN 1700 Classic Tourer/Nomad (VNT70C)
FROM > TO: 2009 > 2009
CC: 1700
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

VN 1700 Classic Tourer/Nomad (VNT70C)
1700
2009 > 2009
REAR
FDB2049
1

MODEL: VN 1700 Classic Tourer/Nomad (VNT70C)
FROM > TO: 2009 > 2009
CC: 1700
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

VN 1700 Classic Tourer/Nomad (VNT70C)
1700
2010 >
FRONT
FDB574
2

MODEL: VN 1700 Classic Tourer/Nomad (VNT70C)
FROM > TO: 2010 >
CC: 1700
FRONT / REAR: front
CODE: FDB574
NUM SET: 2

VN 1700 Classic Tourer/Nomad (VNT70C)
1700
2010 >
REAR
FDB2049
1

MODEL: VN 1700 Classic Tourer/Nomad (VNT70C)
FROM > TO: 2010 >
CC: 1700
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
SV 650 (AV)
25
1999 > 2002
FRONT
FDB2048
1
left

MODEL: SV 650 (AV)
FROM > TO: 1999 > 2002
CC: 25
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 (AV)
25
1999 > 2002
FRONT
FDB2049
1
right

MODEL: SV 650 (AV)
FROM > TO: 1999 > 2002
CC: 25
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 (AV)
25
1999 > 2002
REAR
FDB338
1

MODEL: SV 650 (AV)
FROM > TO: 1999 > 2002
CC: 25
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

GSF 600 Bandit (GN77B)
599
2000 >
FRONT
FDB2048
1
left

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC: 599
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSF 600 Bandit (GN77B)
599
2000 >
FRONT
FDB2049
1
right

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC: 599
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSF 600 Bandit (GN77B)
599
2000 >
REAR
FDB338
1

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC: 599
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

GSF 600 BANDIT - KATANA
600
1998 >
FRONT
FDB2048
1
left

MODEL: GSF 600 BANDIT - KATANA
FROM > TO: 1998 >
CC: 600
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSF 600 BANDIT - KATANA
600
1998 >
FRONT
FDB2049
1
right

MODEL: GSF 600 BANDIT - KATANA
FROM > TO: 1998 >
CC: 600
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSF 600 BANDIT - KATANA
600
1998 >
REAR
FDB338
1

MODEL: GSF 600 BANDIT - KATANA
FROM > TO: 1998 >
CC: 600
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

SV 650 S (AV)
645
1999 > 2002
FRONT
FDB2048
1
left

MODEL: SV 650 S (AV)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 S (AV)
645
1999 > 2002
FRONT
FDB2049
1
right

MODEL: SV 650 S (AV)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 S (AV)
645
1999 > 2002
REAR
FDB338
1

MODEL: SV 650 S (AV)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

SV 650 S (WVBX)
645
1999 > 2002
FRONT
FDB2048
1
left

MODEL: SV 650 S (WVBX)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 S (WVBX)
645
1999 > 2002
FRONT
FDB2049
1
right

MODEL: SV 650 S (WVBX)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 S (WVBX)
645
1999 > 2002
REAR
FDB338
1

MODEL: SV 650 S (WVBX)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

SV 650 S (WVBX)
645
2003 > 2012
FRONT
FDB2048
1
left

MODEL: SV 650 S (WVBX)
FROM > TO: 2003 > 2012
CC: 645
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 S (WVBX)
645
2003 > 2012
FRONT
FDB2049
1
right

MODEL: SV 650 S (WVBX)
FROM > TO: 2003 > 2012
CC: 645
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 S (WVBX)
645
2003 > 2012
REAR
FDB754
1

MODEL: SV 650 S (WVBX)
FROM > TO: 2003 > 2012
CC: 645
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

SV 650 S (WVBY)
645
1999 > 2002
FRONT
FDB2048
1
left

MODEL: SV 650 S (WVBY)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 S (WVBY)
645
1999 > 2002
FRONT
FDB2049
1
right

MODEL: SV 650 S (WVBY)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 S (WVBY)
645
1999 > 2002
REAR
FDB338
1

MODEL: SV 650 S (WVBY)
FROM > TO: 1999 > 2002
CC: 645
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

SV 650 S (WVBY)
645
2003 > 2012
FRONT
FDB2048
1
left

MODEL: SV 650 S (WVBY)
FROM > TO: 2003 > 2012
CC: 645
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 S (WVBY)
645
2003 > 2012
FRONT
FDB2049
1
right

MODEL: SV 650 S (WVBY)
FROM > TO: 2003 > 2012
CC: 645
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 S (WVBY)
645
2003 > 2012
REAR
FDB754
1

MODEL: SV 650 S (WVBY)
FROM > TO: 2003 > 2012
CC: 645
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

SV 650
645
53
2007 > 2010
FRONT
FDB2048
1
left

MODEL: SV 650
FROM > TO: 2007 > 2010
CC: 645
KW: 53
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650
645
53
2007 > 2010
FRONT
FDB2049
1
right

MODEL: SV 650
FROM > TO: 2007 > 2010
CC: 645
KW: 53
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650
645
53
2007 > 2010
REAR
FDB754
1

MODEL: SV 650
FROM > TO: 2007 > 2010
CC: 645
KW: 53
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

Gladius 650 (WVCX)
645
53
2009 >
FRONT
FDB2048
1
left

MODEL: Gladius 650 (WVCX)
FROM > TO: 2009 >
CC: 645
KW: 53
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left
SYSTEM: TOKICO

Gladius 650 (WVCX)
645
53
2009 >
FRONT
FDB2049
1
right

MODEL: Gladius 650 (WVCX)
FROM > TO: 2009 >
CC: 645
KW: 53
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

Gladius 650 (WVCX)
645
53
2009 >
REAR
FDB2258
1

MODEL: Gladius 650 (WVCX)
FROM > TO: 2009 >
CC: 645
KW: 53
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

DL 650 V-Strom (C7)
645
51
2016 >
FRONT
FDB2048
1
left

MODEL: DL 650 V-Strom (C7)
FROM > TO: 2016 >
CC: 645
KW: 51
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left
SYSTEM: TOKICO

DL 650 V-Strom (C7)
645
51
2016 >
FRONT
FDB2049
1
right

MODEL: DL 650 V-Strom (C7)
FROM > TO: 2016 >
CC: 645
KW: 51
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL 650 V-Strom (C7)
645
51
2016 >
REAR
FDB754
1

MODEL: DL 650 V-Strom (C7)
FROM > TO: 2016 >
CC: 645
KW: 51
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

DL 650 V-Strom (WVB1)
650
49
2007 > 2011
FRONT
FDB2048
1
left

MODEL: DL 650 V-Strom (WVB1)
FROM > TO: 2007 > 2011
CC: 650
KW: 49
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL 650 V-Strom (WVB1)
650
49
2007 > 2011
FRONT
FDB2049
1
right

MODEL: DL 650 V-Strom (WVB1)
FROM > TO: 2007 > 2011
CC: 650
KW: 49
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL 650 V-Strom (WVB1)
650
49
2007 > 2011
REAR
FDB754
1

MODEL: DL 650 V-Strom (WVB1)
FROM > TO: 2007 > 2011
CC: 650
KW: 49
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

DL 650 V-STROM A XT ABS
650
2015 >
FRONT
FDB2048
1
left

MODEL: DL 650 V-STROM A XT ABS
FROM > TO: 2015 >
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL 650 V-STROM A XT ABS
650
2015 >
FRONT
FDB2049
1
right

MODEL: DL 650 V-STROM A XT ABS
FROM > TO: 2015 >
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL 650 V-STROM A XT ABS
650
2015 >
REAR
FDB754
1

MODEL: DL 650 V-STROM A XT ABS
FROM > TO: 2015 >
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

DL V-STROM 650 AK ABS
650
2007 > 2011
FRONT
FDB2048
1
left

MODEL: DL V-STROM 650 AK ABS
FROM > TO: 2007 > 2011
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL V-STROM 650 AK ABS
650
2007 > 2011
FRONT
FDB2049
1
right

MODEL: DL V-STROM 650 AK ABS
FROM > TO: 2007 > 2011
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL V-STROM 650 AK ABS
650
2007 > 2011
REAR
FDB754
1

MODEL: DL V-STROM 650 AK ABS
FROM > TO: 2007 > 2011
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

DL V-STROM 650 AL ABS
650
2012 >
FRONT
FDB2048
1
left

MODEL: DL V-STROM 650 AL ABS
FROM > TO: 2012 >
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL V-STROM 650 AL ABS
650
2012 >
FRONT
FDB2049
1
right

MODEL: DL V-STROM 650 AL ABS
FROM > TO: 2012 >
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL V-STROM 650 AL ABS
650
2012 >
REAR
FDB754
1

MODEL: DL V-STROM 650 AL ABS
FROM > TO: 2012 >
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

DL V-STROM 650AK GT Traveller ABS
650
2007 > 2011
FRONT
FDB2048
1
left

MODEL: DL V-STROM 650AK GT Traveller ABS
FROM > TO: 2007 > 2011
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL V-STROM 650AK GT Traveller ABS
650
2007 > 2011
FRONT
FDB2049
1
right

MODEL: DL V-STROM 650AK GT Traveller ABS
FROM > TO: 2007 > 2011
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL V-STROM 650AK GT Traveller ABS
650
2007 > 2011
REAR
FDB754
1

MODEL: DL V-STROM 650AK GT Traveller ABS
FROM > TO: 2007 > 2011
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

DL V-STROM 650AL XP Xpedition ABS
650
2011 > 2011
FRONT
FDB2048
1
left

MODEL: DL V-STROM 650AL XP Xpedition ABS
FROM > TO: 2011 > 2011
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL V-STROM 650AL XP Xpedition ABS
650
2011 > 2011
FRONT
FDB2049
1
right

MODEL: DL V-STROM 650AL XP Xpedition ABS
FROM > TO: 2011 > 2011
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

DL V-STROM 650AL XP Xpedition ABS
650
2011 > 2011
REAR
FDB754
1

MODEL: DL V-STROM 650AL XP Xpedition ABS
FROM > TO: 2011 > 2011
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

GSF 650 A (Naked Bandid -ABS)
650
2005 > 2006
FRONT
FDB2048
1
left

MODEL: GSF 650 A (Naked Bandid -ABS)
FROM > TO: 2005 > 2006
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSF 650 A (Naked Bandid -ABS)
650
2005 > 2006
FRONT
FDB2049
1
right

MODEL: GSF 650 A (Naked Bandid -ABS)
FROM > TO: 2005 > 2006
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSF 650 A (Naked Bandid -ABS)
650
2005 > 2006
REAR
FDB754
1

MODEL: GSF 650 A (Naked Bandid -ABS)
FROM > TO: 2005 > 2006
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

GSF 650 SA (Faired Bandid -ABS)
650
2005 > 2006
FRONT
FDB2048
1
left

MODEL: GSF 650 SA (Faired Bandid -ABS)
FROM > TO: 2005 > 2006
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSF 650 SA (Faired Bandid -ABS)
650
2005 > 2006
FRONT
FDB2049
1
right

MODEL: GSF 650 SA (Faired Bandid -ABS)
FROM > TO: 2005 > 2006
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSF 650 SA (Faired Bandid -ABS)
650
2005 > 2006
REAR
FDB754
1

MODEL: GSF 650 SA (Faired Bandid -ABS)
FROM > TO: 2005 > 2006
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

SV 650 (WVBY)
650
2003 > 2010
FRONT
FDB2048
1
left

MODEL: SV 650 (WVBY)
FROM > TO: 2003 > 2010
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 (WVBY)
650
2003 > 2010
FRONT
FDB2049
1
right

MODEL: SV 650 (WVBY)
FROM > TO: 2003 > 2010
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 (WVBY)
650
2003 > 2010
REAR
FDB754
1

MODEL: SV 650 (WVBY)
FROM > TO: 2003 > 2010
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

SV 650 ABS (CX1236)
650
56
2016 > 2018
FRONT
FDB2048
1
left

MODEL: SV 650 ABS (CX1236)
FROM > TO: 2016 > 2018
CC: 650
KW: 56
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left
SYSTEM: TOKICO

SV 650 ABS (CX1236)
650
56
2016 > 2018
FRONT
FDB2049
1
right

MODEL: SV 650 ABS (CX1236)
FROM > TO: 2016 > 2018
CC: 650
KW: 56
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

SV 650 ABS (CX1236)
650
56
2016 > 2018
REAR
FDB2258
1
right

MODEL: SV 650 ABS (CX1236)
FROM > TO: 2016 > 2018
CC: 650
KW: 56
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SIDE: right

SV 650 SA (Top Fairing - ABS)
650
2007 > 2013
FRONT
FDB2048
1
left

MODEL: SV 650 SA (Top Fairing - ABS)
FROM > TO: 2007 > 2013
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

SV 650 SA (Top Fairing - ABS)
650
2007 > 2013
FRONT
FDB2049
1
right

MODEL: SV 650 SA (Top Fairing - ABS)
FROM > TO: 2007 > 2013
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

SV 650 SA (Top Fairing - ABS)
650
2007 > 2013
REAR
FDB754
1

MODEL: SV 650 SA (Top Fairing - ABS)
FROM > TO: 2007 > 2013
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

SFV GLADIUS 650 ABS
650
2009 >
FRONT
FDB2048
1
left

MODEL: SFV GLADIUS 650 ABS
FROM > TO: 2009 >
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left
SYSTEM: TOKICO

SFV GLADIUS 650 ABS
650
2009 >
FRONT
FDB2049
1
right

MODEL: SFV GLADIUS 650 ABS
FROM > TO: 2009 >
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

SFV GLADIUS 650 ABS
650
2009 >
REAR
FDB2258
1

MODEL: SFV GLADIUS 650 ABS
FROM > TO: 2009 >
CC: 650
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

V-Strom 650-XT ABS
650
2016 >
FRONT
FDB2048
1
left

MODEL: V-Strom 650-XT ABS
FROM > TO: 2016 >
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left
SYSTEM: TOKICO

V-Strom 650-XT ABS
650
2016 >
FRONT
FDB2049
1
right

MODEL: V-Strom 650-XT ABS
FROM > TO: 2016 >
CC: 650
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right
SYSTEM: TOKICO

V-Strom 650-XT ABS
650
2016 >
REAR
FDB754
1

MODEL: V-Strom 650-XT ABS
FROM > TO: 2016 >
CC: 650
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

GSF 650 Bandit (WVB5)
656
57
2005 > 2006
FRONT
FDB2048
1
left

MODEL: GSF 650 Bandit (WVB5)
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSF 650 Bandit (WVB5)
656
57
2005 > 2006
FRONT
FDB2049
1
right

MODEL: GSF 650 Bandit (WVB5)
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSF 650 Bandit (WVB5)
656
57
2005 > 2006
REAR
FDB2111
1

MODEL: GSF 650 Bandit (WVB5)
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: rear
CODE: FDB2111
NUM SET: 1

GSF 650 S Bandit
656
57
2005 > 2006
FRONT
FDB2048
1
left

MODEL: GSF 650 S Bandit
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSF 650 S Bandit
656
57
2005 > 2006
FRONT
FDB2049
1
right

MODEL: GSF 650 S Bandit
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSF 650 S Bandit
656
57
2005 > 2006
REAR
FDB2111
1

MODEL: GSF 650 S Bandit
FROM > TO: 2005 > 2006
CC: 656
KW: 57
FRONT / REAR: rear
CODE: FDB2111
NUM SET: 1

GSF 650 S Bandit
656
57
2007 > 2011
FRONT
FDB574
2

MODEL: GSF 650 S Bandit
FROM > TO: 2007 > 2011
CC: 656
KW: 57
FRONT / REAR: front
CODE: FDB574
NUM SET: 2

GSF 650 S Bandit
656
57
2007 > 2011
REAR
FDB754
1

MODEL: GSF 650 S Bandit
FROM > TO: 2007 > 2011
CC: 656
KW: 57
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

GSR 750 (C5)
749
78
2011 >
FRONT
FDB2048
1
left

MODEL: GSR 750 (C5)
FROM > TO: 2011 >
CC: 749
KW: 78
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSR 750 (C5)
749
78
2011 >
FRONT
FDB2049
1
right

MODEL: GSR 750 (C5)
FROM > TO: 2011 >
CC: 749
KW: 78
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSR 750 (C5)
749
78
2011 >
REAR
FDB754
1

MODEL: GSR 750 (C5)
FROM > TO: 2011 >
CC: 749
KW: 78
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

GSX 750 FW/FX/FY/FK1/FK2
750
1998 > 2006
FRONT
FDB2048
1
left

MODEL: GSX 750 FW/FX/FY/FK1/FK2
FROM > TO: 1998 > 2006
CC: 750
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSX 750 FW/FX/FY/FK1/FK2
750
1998 > 2006
FRONT
FDB2049
1
right

MODEL: GSX 750 FW/FX/FY/FK1/FK2
FROM > TO: 1998 > 2006
CC: 750
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSX 750 FW/FX/FY/FK1/FK2
750
1998 > 2006
REAR
FDB338
1

MODEL: GSX 750 FW/FX/FY/FK1/FK2
FROM > TO: 1998 > 2006
CC: 750
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

GSX 750 W/X/Y/K1
750
1998 >
FRONT
FDB2048
1
left

MODEL: GSX 750 W/X/Y/K1
FROM > TO: 1998 >
CC: 750
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

GSX 750 W/X/Y/K1
750
1998 >
FRONT
FDB2049
1
right

MODEL: GSX 750 W/X/Y/K1
FROM > TO: 1998 >
CC: 750
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

GSX 750 W/X/Y/K1
750
1998 >
REAR
FDB338
1

MODEL: GSX 750 W/X/Y/K1
FROM > TO: 1998 >
CC: 750
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

VX 800 (VS51B)
805
37
1995 >
FRONT
FDB2048
1

MODEL: VX 800 (VS51B)
FROM > TO: 1995 >
CC: 805
KW: 37
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

VX 800 (VS51B)
805
37
1995 >
REAR
FDB569
1

MODEL: VX 800 (VS51B)
FROM > TO: 1995 >
CC: 805
KW: 37
FRONT / REAR: rear
CODE: FDB569
NUM SET: 1

DL 1000 V-Strom (WVBS)
996
72
2002 > 2010
FRONT
FDB2048
1
left

MODEL: DL 1000 V-Strom (WVBS)
FROM > TO: 2002 > 2010
CC: 996
KW: 72
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

DL 1000 V-Strom (WVBS)
996
72
2002 > 2010
FRONT
FDB2049
1
right

MODEL: DL 1000 V-Strom (WVBS)
FROM > TO: 2002 > 2010
CC: 996
KW: 72
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

DL 1000 V-Strom (WVBS)
996
72
2002 > 2010
REAR
FDB754
1

MODEL: DL 1000 V-Strom (WVBS)
FROM > TO: 2002 > 2010
CC: 996
KW: 72
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

C90 Boulevard (WVAL)
1462
2005 > 2009
FRONT
FDB2048
1
left

MODEL: C90 Boulevard (WVAL)
FROM > TO: 2005 > 2009
CC: 1462
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

C90 Boulevard (WVAL)
1462
2005 > 2009
FRONT
FDB2049
1
right

MODEL: C90 Boulevard (WVAL)
FROM > TO: 2005 > 2009
CC: 1462
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

C90 Boulevard (WVAL)
1462
2005 > 2009
REAR
FDB2163
1

MODEL: C90 Boulevard (WVAL)
FROM > TO: 2005 > 2009
CC: 1462
FRONT / REAR: rear
CODE: FDB2163
NUM SET: 1

VL 1500 Intruder LC (AL)
1462
2002 > 2003
FRONT
FDB2048
1
left

MODEL: VL 1500 Intruder LC (AL)
FROM > TO: 2002 > 2003
CC: 1462
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

VL 1500 Intruder LC (AL)
1462
2002 > 2003
FRONT
FDB2049
1
right

MODEL: VL 1500 Intruder LC (AL)
FROM > TO: 2002 > 2003
CC: 1462
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

VL 1500 Intruder LC (AL)
1462
2002 > 2003
REAR
FDB2163
1

MODEL: VL 1500 Intruder LC (AL)
FROM > TO: 2002 > 2003
CC: 1462
FRONT / REAR: rear
CODE: FDB2163
NUM SET: 1

Footer Logo

PRIVACY POLICY | TERMS OF USE | COOKIES PREFERENCES
FEDERAL MOGUL ITALY S.R.L. - VAT: IT00476190012
©2023 DRIV AUTOMOTIVE INC. OR ONE OF ITS AFFILIATES IN ONE OR MORE COUNTRIES.
