Home » ECAT » Motorcycle, ATV & UTE » Brake Pads & Shoes

REAR

FRONT

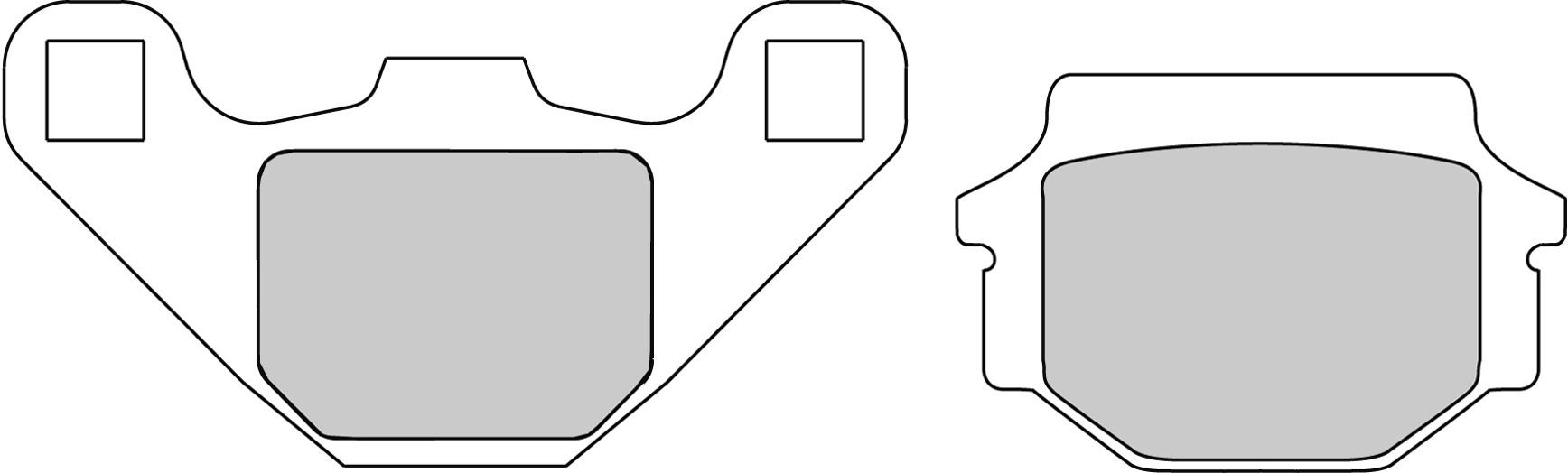

FDB314SG

SG: Sintered/Off-Road

85mm = 3.346"
43mm = 1.693"
7.7mm = 0.303"
56mm = 2.205"
37mm = 1.457"
10mm = 0.394"
MATERIAL

SG

Sintergrip OFF-ROAD

DISCOVER MORE
SINTERED compound
Main Use: OFF-ROAD, both dry and muddy conditions
Certification: TUV/KBA, ECE R-90
Recommended for: motocross, enduro, ATV and UTE
FAMILY SHAPE

FDB314

DISCOVER
BRAKING
669
BREMBO
07BB07
BREMBO
07KS04
BRENTA
4095
BRENTA
3095
CL BRAKES
2306
EBC
FA067
EBC
FA251
GALFER
FD075
GOLD FREN
005
LUCAS/TRW
MCB523
LUCAS/TRW
MCB555
NEWFREN
FD0073
SBS
546
SBS
586
SBS
692
VESRAH
VD-425
OEM Kawasaki
43082 1163
OEM Kawasaki
43082 1116
OEM Kawasaki
43082 1096
OEM Kawasaki
43050 1064
OEM Kawasaki
43082 1209

FDB314 OTHER MATERIALS

3 PART(S) FOUND
FRONT / REAR
FDB314ST
ST: Sintered/Road

DISCOVER

FRONT / REAR
FDB314P
P: Mid-metallic/Road

DISCOVER

FRONT / REAR
FDB314EF
EF: Mid-metallic/Road

DISCOVER

FDB314 APPLICATION

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
AR 250
250
1992 >
REAR
FDB314
1

MODEL: AR 250
FROM > TO: 1992 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

AR 250
250
1992 > 1992
FRONT
FDB499
1

MODEL: AR 250
FROM > TO: 1992 > 1992
CC: 250
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

AR 250
250
1993 >
FRONT
FDB2018
1

MODEL: AR 250
FROM > TO: 1993 >
CC: 250
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

VR 250
250
1994 >
FRONT
FDB2018
1

MODEL: VR 250
FROM > TO: 1994 >
CC: 250
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

VR 250
250
1994 >
REAR
FDB314
1

MODEL: VR 250
FROM > TO: 1994 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
RX 125
125
17
2008 > 2013
FRONT
FDB2018
1

MODEL: RX 125
FROM > TO: 2008 > 2013
CC: 125
KW: 17
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1
SYSTEM: AJP caliper

RX 125
125
17
2008 > 2013
REAR
FDB314
1

MODEL: RX 125
FROM > TO: 2008 > 2013
CC: 125
KW: 17
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1
SYSTEM: Grimeca

RX 125
125
17
2008 > 2013
REAR
FDB384
1

MODEL: RX 125
FROM > TO: 2008 > 2013
CC: 125
KW: 17
FRONT / REAR: rear
CODE: FDB384
NUM SET: 1
SYSTEM: AJP caliper

Tuareg 350 Wind
349
20
1989 >
FRONT
FDB499
1

MODEL: Tuareg 350 Wind
FROM > TO: 1989 >
CC: 349
KW: 20
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

Tuareg 350 Wind
349
20
1989 >
REAR
FDB314
1

MODEL: Tuareg 350 Wind
FROM > TO: 1989 >
CC: 349
KW: 20
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Tuareg 350 Wind
349
20
1990 >
FRONT
FDB529
1

MODEL: Tuareg 350 Wind
FROM > TO: 1990 >
CC: 349
KW: 20
FRONT / REAR: front
CODE: FDB529
NUM SET: 1

Tuareg 350 Wind
349
20
1990 >
REAR
FDB314
1

MODEL: Tuareg 350 Wind
FROM > TO: 1990 >
CC: 349
KW: 20
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Tuareg Wind 600
562
1988 > 1990
FRONT
FDB314
2

MODEL: Tuareg Wind 600
FROM > TO: 1988 > 1990
CC: 562
FRONT / REAR: front
CODE: FDB314
NUM SET: 2
SYSTEM: Twin disc

Tuareg Wind 600
562
1988 > 1990
FRONT
FDB529
2

MODEL: Tuareg Wind 600
FROM > TO: 1988 > 1990
CC: 562
FRONT / REAR: front
CODE: FDB529
NUM SET: 2

Tuareg Wind 600
562
1988 > 1990
REAR
FDB314
1

MODEL: Tuareg Wind 600
FROM > TO: 1988 > 1990
CC: 562
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1
SYSTEM: Twin disc

Tuareg Wind 600
562
1988 > 1990
REAR
FDB828
1

MODEL: Tuareg Wind 600
FROM > TO: 1988 > 1990
CC: 562
FRONT / REAR: rear
CODE: FDB828
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
M2 Cyclone, S1 Lightning, S2-S3 Thunderbolt
1200
1994 > 1997
FRONT
FDB847
2

MODEL: M2 Cyclone, S1 Lightning, S2-S3 Thunderbolt
FROM > TO: 1994 > 1997
CC: 1200
FRONT / REAR: front
CODE: FDB847
NUM SET: 2

M2 Cyclone, S1 Lightning, S2-S3 Thunderbolt
1200
1994 > 1997
REAR
FDB314
1

MODEL: M2 Cyclone, S1 Lightning, S2-S3 Thunderbolt
FROM > TO: 1994 > 1997
CC: 1200
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
ENDURCROSS 80
80
1994 >
FRONT
FDB2018
1

MODEL: ENDURCROSS 80
FROM > TO: 1994 >
CC: 80
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

ENDURCROSS 80
80
1994 >
REAR
FDB314
1

MODEL: ENDURCROSS 80
FROM > TO: 1994 >
CC: 80
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

ENDURCROSS 125
125
1994 >
FRONT
FDB2018
1

MODEL: ENDURCROSS 125
FROM > TO: 1994 >
CC: 125
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

ENDURCROSS 125
125
1994 >
REAR
FDB314
1

MODEL: ENDURCROSS 125
FROM > TO: 1994 >
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

EC / MC 250
250
1995 >
FRONT
FDB2018
1

MODEL: EC / MC 250
FROM > TO: 1995 >
CC: 250
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

EC / MC 250
250
1995 >
REAR
FDB314
1

MODEL: EC / MC 250
FROM > TO: 1995 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

EC / MC 250
250
1996 > 1999
FRONT
FDB2018
1

MODEL: EC / MC 250
FROM > TO: 1996 > 1999
CC: 250
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

EC / MC 250
250
1996 > 1999
REAR
FDB2005
1

MODEL: EC / MC 250
FROM > TO: 1996 > 1999
CC: 250
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

EC / MC 250
250
2000 >
FRONT
FDB892
1

MODEL: EC / MC 250
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

EC / MC 250
250
2000 >
REAR
FDB539
1

MODEL: EC / MC 250
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
MC 350
350
1991 > 1993
FRONT
FDB499
1

MODEL: MC 350
FROM > TO: 1991 > 1993
CC: 350
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

MC 350
350
1991 > 1993
REAR
FDB314
1

MODEL: MC 350
FROM > TO: 1991 > 1993
CC: 350
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MC 350
350
1994 >
FRONT
FDB499
1

MODEL: MC 350
FROM > TO: 1994 >
CC: 350
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

MC 350
350
1994 >
REAR
FDB2005
1

MODEL: MC 350
FROM > TO: 1994 >
CC: 350
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

500 all models
500
1991 > 1992
FRONT
FDB499
1

MODEL: 500 all models
FROM > TO: 1991 > 1992
CC: 500
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

500 all models
500
1991 > 1992
REAR
FDB314
1

MODEL: 500 all models
FROM > TO: 1991 > 1992
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

500 all models
500
1993 > 1995
FRONT
FDB2018
1

MODEL: 500 all models
FROM > TO: 1993 > 1995
CC: 500
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

500 all models
500
1993 > 1995
REAR
FDB314
1

MODEL: 500 all models
FROM > TO: 1993 > 1995
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

500 all models
500
1996 >
FRONT
FDB2018
1

MODEL: 500 all models
FROM > TO: 1996 >
CC: 500
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

500 all models
500
1996 >
REAR
FDB2005
1

MODEL: 500 all models
FROM > TO: 1996 >
CC: 500
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

501 ENDURO
500
1992 > 1993
FRONT
FDB499
1

MODEL: 501 ENDURO
FROM > TO: 1992 > 1993
CC: 500
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

501 ENDURO
500
1992 > 1993
REAR
FDB314
1

MODEL: 501 ENDURO
FROM > TO: 1992 > 1993
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

EF 600 E (Quad)
600
1998 >
FRONT
FDB2005
1

MODEL: EF 600 E (Quad)
FROM > TO: 1998 >
CC: 600
FRONT / REAR: front
CODE: FDB2005
NUM SET: 1

EF 600 E (Quad)
600
1998 >
REAR
FDB314
1

MODEL: EF 600 E (Quad)
FROM > TO: 1998 >
CC: 600
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

600 ENDURO
600
1992 > 1993
FRONT
FDB499
1

MODEL: 600 ENDURO
FROM > TO: 1992 > 1993
CC: 600
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

600 ENDURO
600
1992 > 1993
REAR
FDB314
1

MODEL: 600 ENDURO
FROM > TO: 1992 > 1993
CC: 600
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
CR 125
125
1991 > 1995
FRONT
FDB499
1

MODEL: CR 125
FROM > TO: 1991 > 1995
CC: 125
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

CR 125
125
1991 > 1995
REAR
FDB314
1

MODEL: CR 125
FROM > TO: 1991 > 1995
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

CR 125
125
1996 > 2004
FRONT
FDB2018
1

MODEL: CR 125
FROM > TO: 1996 > 2004
CC: 125
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

CR 125
125
1996 > 2004
REAR
FDB2005
1

MODEL: CR 125
FROM > TO: 1996 > 2004
CC: 125
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

CR 125
125
2005 > 2013
FRONT
FDB2018
1

MODEL: CR 125
FROM > TO: 2005 > 2013
CC: 125
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

CR 125
125
2005 > 2013
REAR
FDB2165
1

MODEL: CR 125
FROM > TO: 2005 > 2013
CC: 125
FRONT / REAR: rear
CODE: FDB2165
NUM SET: 1

WR 125
125
1991 > 1997
FRONT
FDB499
1

MODEL: WR 125
FROM > TO: 1991 > 1997
CC: 125
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

WR 125
125
1991 > 1997
REAR
FDB314
1

MODEL: WR 125
FROM > TO: 1991 > 1997
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

WR 125
125
1998 > 2005
FRONT
FDB2018
1

MODEL: WR 125
FROM > TO: 1998 > 2005
CC: 125
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

WR 125
125
1998 > 2005
REAR
FDB2005
1

MODEL: WR 125
FROM > TO: 1998 > 2005
CC: 125
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

WR 125
125
2006 > 2013
FRONT
FDB2018
1

MODEL: WR 125
FROM > TO: 2006 > 2013
CC: 125
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1
SYSTEM: BRE

WR 125
125
2006 > 2013
REAR
FDB2165
1

MODEL: WR 125
FROM > TO: 2006 > 2013
CC: 125
FRONT / REAR: rear
CODE: FDB2165
NUM SET: 1
SYSTEM: BRE

WR 125
125
2010 >
FRONT
FDB2018
1

MODEL: WR 125
FROM > TO: 2010 >
CC: 125
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

WR 125
125
2010 >
REAR
FDB2165
1

MODEL: WR 125
FROM > TO: 2010 >
CC: 125
FRONT / REAR: rear
CODE: FDB2165
NUM SET: 1

WR 240
240
1991 >
FRONT
FDB499
1

MODEL: WR 240
FROM > TO: 1991 >
CC: 240
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

WR 240
240
1991 >
REAR
FDB314
1

MODEL: WR 240
FROM > TO: 1991 >
CC: 240
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

CR 250 CROSS
250
1991 > 1995
FRONT
FDB499
1

MODEL: CR 250 CROSS
FROM > TO: 1991 > 1995
CC: 250
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

CR 250 CROSS
250
1991 > 1995
REAR
FDB314
1

MODEL: CR 250 CROSS
FROM > TO: 1991 > 1995
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

WR 250
250
1990 > 1991
FRONT
FDB499
1

MODEL: WR 250
FROM > TO: 1990 > 1991
CC: 250
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

WR 250
250
1990 > 1991
REAR
FDB314
1

MODEL: WR 250
FROM > TO: 1990 > 1991
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

WR 250
250
1992 > 1994
FRONT
FDB499
1

MODEL: WR 250
FROM > TO: 1992 > 1994
CC: 250
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

WR 250
250
1992 > 1994
REAR
FDB381
1

MODEL: WR 250
FROM > TO: 1992 > 1994
CC: 250
FRONT / REAR: rear
CODE: FDB381
NUM SET: 1

WR 250
250
1995 > 2008
FRONT
FDB2018
1

MODEL: WR 250
FROM > TO: 1995 > 2008
CC: 250
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

WR 250
250
1995 > 2008
REAR
FDB2005
1

MODEL: WR 250
FROM > TO: 1995 > 2008
CC: 250
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

WR 260
260
1991 >
FRONT
FDB499
1

MODEL: WR 260
FROM > TO: 1991 >
CC: 260
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

WR 260
260
1991 >
REAR
FDB314
1

MODEL: WR 260
FROM > TO: 1991 >
CC: 260
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

TE 350
350
1990 > 1995
FRONT
FDB499
1

MODEL: TE 350
FROM > TO: 1990 > 1995
CC: 350
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

TE 350
350
1990 > 1995
REAR
FDB314
1

MODEL: TE 350
FROM > TO: 1990 > 1995
CC: 350
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

TE 350
350
1996 >
FRONT
FDB2018
1

MODEL: TE 350
FROM > TO: 1996 >
CC: 350
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

TE 350
350
1996 >
REAR
FDB2005
1

MODEL: TE 350
FROM > TO: 1996 >
CC: 350
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

TE 510
510
1988 > 1990
FRONT
FDB499
1

MODEL: TE 510
FROM > TO: 1988 > 1990
CC: 510
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

TE 510
510
1988 > 1990
REAR
FDB314
1

MODEL: TE 510
FROM > TO: 1988 > 1990
CC: 510
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
KSR 50 I/II
50
1990 > 1991
FRONT
FDB313
1

MODEL: KSR 50 I/II
FROM > TO: 1990 > 1991
CC: 50
FRONT / REAR: front
CODE: FDB313
NUM SET: 1

KSR 50 I/II
50
1990 > 1991
REAR
FDB314
1

MODEL: KSR 50 I/II
FROM > TO: 1990 > 1991
CC: 50
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 80 H - K2
80
1987 > 1987
FRONT
FDB314
1

MODEL: KX 80 H - K2
FROM > TO: 1987 > 1987
CC: 80
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 80 S1 - V1
80
1992 >
FRONT
FDB661
1

MODEL: KX 80 S1 - V1
FROM > TO: 1992 >
CC: 80
FRONT / REAR: front
CODE: FDB661
NUM SET: 1

KX 80 S1 - V1
80
1992 >
REAR
FDB314
1

MODEL: KX 80 S1 - V1
FROM > TO: 1992 >
CC: 80
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KH 100 G4
100
1983 >
FRONT
FDB314
1

MODEL: KH 100 G4
FROM > TO: 1983 >
CC: 100
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

AR 125 A1 - LC
125
1982 > 1994
FRONT
FDB314
1

MODEL: AR 125 A1 - LC
FROM > TO: 1982 > 1994
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KH 125 EX
125
1982 > 1983
FRONT
FDB314
1

MODEL: KH 125 EX
FROM > TO: 1982 > 1983
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KH 125 K2-4 - L1
125
1982 > 1983
FRONT
FDB314
1

MODEL: KH 125 K2-4 - L1
FROM > TO: 1982 > 1983
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KMX 125
125
1986 > 1998
FRONT
FDB313
1

MODEL: KMX 125
FROM > TO: 1986 > 1998
CC: 125
FRONT / REAR: front
CODE: FDB313
NUM SET: 1

KMX 125
125
1986 > 1998
REAR
FDB314
1

MODEL: KMX 125
FROM > TO: 1986 > 1998
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KMX 125
125
1999 > 2003
FRONT
FDB2133
1

MODEL: KMX 125
FROM > TO: 1999 > 2003
CC: 125
FRONT / REAR: front
CODE: FDB2133
NUM SET: 1

KMX 125
125
1999 > 2003
REAR
FDB314
1

MODEL: KMX 125
FROM > TO: 1999 > 2003
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 125
125
1986 > 1986
FRONT
FDB314
1

MODEL: KX 125
FROM > TO: 1986 > 1986
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 125
125
1986 > 1986
REAR
FDB314
1

MODEL: KX 125
FROM > TO: 1986 > 1986
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 125
125
1987 > 1988
FRONT
FDB494
1

MODEL: KX 125
FROM > TO: 1987 > 1988
CC: 125
FRONT / REAR: front
CODE: FDB494
NUM SET: 1

KX 125
125
1987 > 1988
REAR
FDB314
1

MODEL: KX 125
FROM > TO: 1987 > 1988
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 125
125
1989 > 1994
FRONT
FDB497
1

MODEL: KX 125
FROM > TO: 1989 > 1994
CC: 125
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

KX 125
125
1989 > 1994
REAR
FDB659
1

MODEL: KX 125
FROM > TO: 1989 > 1994
CC: 125
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 125
125
1995 > 1997
FRONT
FDB892
1

MODEL: KX 125
FROM > TO: 1995 > 1997
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 125
125
1995 > 1997
REAR
FDB659
1

MODEL: KX 125
FROM > TO: 1995 > 1997
CC: 125
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 125
125
1996 > 2002
FRONT
FDB892
1

MODEL: KX 125
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 125
125
1996 > 2002
REAR
FDB539
1

MODEL: KX 125
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

KX 125
125
2003 >
FRONT
FDB892
1

MODEL: KX 125
FROM > TO: 2003 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 125
125
2003 >
REAR
FDB539
1

MODEL: KX 125
FROM > TO: 2003 >
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

KX 125 B2 - C1
125
1982 > 1985
FRONT
FDB314
1

MODEL: KX 125 B2 - C1
FROM > TO: 1982 > 1985
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 125 M
125
1986 > 1986
FRONT
FDB314
1

MODEL: KX 125 M
FROM > TO: 1986 > 1986
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 125 M
125
1986 > 1986
REAR
FDB314
1

MODEL: KX 125 M
FROM > TO: 1986 > 1986
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 125 M
125
1989 > 1994
FRONT
FDB497
1

MODEL: KX 125 M
FROM > TO: 1989 > 1994
CC: 125
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

KX 125 M
125
1989 > 1994
REAR
FDB659
1

MODEL: KX 125 M
FROM > TO: 1989 > 1994
CC: 125
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 125 M
125
1996 > 2002
FRONT
FDB892
1

MODEL: KX 125 M
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 125 M
125
1996 > 2002
REAR
FDB539
1

MODEL: KX 125 M
FROM > TO: 1996 > 2002
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

KX 125 M
125
2003 >
FRONT
FDB892
1

MODEL: KX 125 M
FROM > TO: 2003 >
CC: 125
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 125 M
125
2003 >
REAR
FDB539
1

MODEL: KX 125 M
FROM > TO: 2003 >
CC: 125
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

KDX 200 C1
200
1986 > 1988
FRONT
FDB314
1

MODEL: KDX 200 C1
FROM > TO: 1986 > 1988
CC: 200
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KDX 200 E1
200
1989 >
FRONT
FDB314
1

MODEL: KDX 200 E1
FROM > TO: 1989 >
CC: 200
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KDX 200 E1
200
1989 >
REAR
FDB659
1

MODEL: KDX 200 E1
FROM > TO: 1989 >
CC: 200
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KMX 200
200
1988 > 1992
FRONT
FDB313
1

MODEL: KMX 200
FROM > TO: 1988 > 1992
CC: 200
FRONT / REAR: front
CODE: FDB313
NUM SET: 1

KMX 200
200
1988 > 1992
REAR
FDB314
1

MODEL: KMX 200
FROM > TO: 1988 > 1992
CC: 200
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Z 200 A6
200
1983 >
FRONT
FDB314
1

MODEL: Z 200 A6
FROM > TO: 1983 >
CC: 200
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

Estrella 250 (BJ250A)
249
13
1992 > 1999
FRONT
FDB314
1

MODEL: Estrella 250 (BJ250A)
FROM > TO: 1992 > 1999
CC: 249
KW: 13
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

Estrella 250 (BJ250A)
249
13
1992 > 1999
REAR
FDB314
1

MODEL: Estrella 250 (BJ250A)
FROM > TO: 1992 > 1999
CC: 249
KW: 13
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

BJ 250 C1-C7 Estrella-RS
250
1999 > 2002
FRONT
FDB314
1

MODEL: BJ 250 C1-C7 Estrella-RS
FROM > TO: 1999 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

BJ 250 C1-C7 Estrella-RS
250
1999 > 2002
REAR
FDB314
1

MODEL: BJ 250 C1-C7 Estrella-RS
FROM > TO: 1999 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

EX 250 H1 - H2
250
1990 >
FRONT
FDB481
1

MODEL: EX 250 H1 - H2
FROM > TO: 1990 >
CC: 250
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

EX 250 H1 - H2
250
1990 >
REAR
FDB314
1

MODEL: EX 250 H1 - H2
FROM > TO: 1990 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

GPZ 250
250
1985 >
FRONT
FDB314
2

MODEL: GPZ 250
FROM > TO: 1985 >
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPZ 250
250
1985 >
REAR
FDB339
1

MODEL: GPZ 250
FROM > TO: 1985 >
CC: 250
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

KDX 250 BALIUS
250
1991 > 1993
FRONT
FDB481
1

MODEL: KDX 250 BALIUS
FROM > TO: 1991 > 1993
CC: 250
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KDX 250 BALIUS
250
1991 > 1993
REAR
FDB314
1

MODEL: KDX 250 BALIUS
FROM > TO: 1991 > 1993
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KL 250 SUPER SHERPA
250
2000 >
FRONT
FDB2080
1

MODEL: KL 250 SUPER SHERPA
FROM > TO: 2000 >
CC: 250
FRONT / REAR: front
CODE: FDB2080
NUM SET: 1

KL 250 SUPER SHERPA
250
2000 >
REAR
FDB314
1

MODEL: KL 250 SUPER SHERPA
FROM > TO: 2000 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLE 250 ANHELO
250
1993 > 1999
FRONT
FDB481
1

MODEL: KLE 250 ANHELO
FROM > TO: 1993 > 1999
CC: 250
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KLE 250 ANHELO
250
1993 > 1999
REAR
FDB314
1

MODEL: KLE 250 ANHELO
FROM > TO: 1993 > 1999
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLE 250 ANHELO
250
2000 > 2002
FRONT
FDB481
1

MODEL: KLE 250 ANHELO
FROM > TO: 2000 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KLE 250 ANHELO
250
2000 > 2002
REAR
FDB2015
1

MODEL: KLE 250 ANHELO
FROM > TO: 2000 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB2015
NUM SET: 1

KLR 250 all models
250
1984 > 2000
FRONT
FDB314
1

MODEL: KLR 250 all models
FROM > TO: 1984 > 2000
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KLX 250 H1 SUPER SHERPA
250
1998 > 1998
FRONT
FDB2080
1

MODEL: KLX 250 H1 SUPER SHERPA
FROM > TO: 1998 > 1998
CC: 250
FRONT / REAR: front
CODE: FDB2080
NUM SET: 1

KLX 250 H1 SUPER SHERPA
250
1998 > 1998
REAR
FDB314
1

MODEL: KLX 250 H1 SUPER SHERPA
FROM > TO: 1998 > 1998
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KMX 250
250
1989 >
FRONT
FDB314
1

MODEL: KMX 250
FROM > TO: 1989 >
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KMX 250
250
1989 >
REAR
FDB314
1

MODEL: KMX 250
FROM > TO: 1989 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 250 C1 - C2
250
1983 > 1985
FRONT
FDB314
1

MODEL: KX 250 C1 - C2
FROM > TO: 1983 > 1985
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 250 D
250
1986 > 1986
FRONT
FDB314
1

MODEL: KX 250 D
FROM > TO: 1986 > 1986
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 250 D
250
1986 > 1986
REAR
FDB314
1

MODEL: KX 250 D
FROM > TO: 1986 > 1986
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 250 D
250
1989 > 1993
FRONT
FDB497
1

MODEL: KX 250 D
FROM > TO: 1989 > 1993
CC: 250
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

KX 250 D
250
1989 > 1993
REAR
FDB659
1

MODEL: KX 250 D
FROM > TO: 1989 > 1993
CC: 250
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 250 D
250
1994 > 1995
FRONT
FDB892
1

MODEL: KX 250 D
FROM > TO: 1994 > 1995
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 250 D
250
1994 > 1995
REAR
FDB659
1

MODEL: KX 250 D
FROM > TO: 1994 > 1995
CC: 250
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 250 D
250
1996 > 2002
FRONT
FDB892
1

MODEL: KX 250 D
FROM > TO: 1996 > 2002
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 250 D
250
1996 > 2002
REAR
FDB539
1

MODEL: KX 250 D
FROM > TO: 1996 > 2002
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

KX 250 D
250
2003 >
FRONT
FDB892
1

MODEL: KX 250 D
FROM > TO: 2003 >
CC: 250
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 250 D
250
2003 >
REAR
FDB539
1

MODEL: KX 250 D
FROM > TO: 2003 >
CC: 250
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

KX 250 E1 - F1
250
1987 > 1988
FRONT
FDB494
1

MODEL: KX 250 E1 - F1
FROM > TO: 1987 > 1988
CC: 250
FRONT / REAR: front
CODE: FDB494
NUM SET: 1

KX 250 E1 - F1
250
1987 > 1988
REAR
FDB314
1

MODEL: KX 250 E1 - F1
FROM > TO: 1987 > 1988
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KXT 250 A2 / B1 TECATE
250
1985 > 1986
FRONT
FDB314
1

MODEL: KXT 250 A2 / B1 TECATE
FROM > TO: 1985 > 1986
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KXT 250 A2 / B1 TECATE
250
1985 > 1986
REAR
FDB314
1

MODEL: KXT 250 A2 / B1 TECATE
FROM > TO: 1985 > 1986
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KXT 250 B2 TECATE
250
1987 > 2000
FRONT
FDB314
2

MODEL: KXT 250 B2 TECATE
FROM > TO: 1987 > 2000
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

KXT 250 B2 TECATE
250
1987 > 2000
REAR
FDB381
1

MODEL: KXT 250 B2 TECATE
FROM > TO: 1987 > 2000
CC: 250
FRONT / REAR: rear
CODE: FDB381
NUM SET: 1

ZXR 250
250
1989 >
FRONT
FDB508
2

MODEL: ZXR 250
FROM > TO: 1989 >
CC: 250
FRONT / REAR: front
CODE: FDB508
NUM SET: 2

ZXR 250
250
1989 >
REAR
FDB314
1

MODEL: ZXR 250
FROM > TO: 1989 >
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

ZZR 250 (EX 250 H)
250
1990 > 1993
FRONT
FDB481
2

MODEL: ZZR 250 (EX 250 H)
FROM > TO: 1990 > 1993
CC: 250
FRONT / REAR: front
CODE: FDB481
NUM SET: 2

ZZR 250 (EX 250 H)
250
1990 > 1993
REAR
FDB314
1

MODEL: ZZR 250 (EX 250 H)
FROM > TO: 1990 > 1993
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLF 300 BAYOU B Series
300
1988 > 2004
FRONT
FDB314
2

MODEL: KLF 300 BAYOU B Series
FROM > TO: 1988 > 2004
CC: 300
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPZ 305 A1
305
1983 > 1996
FRONT
FDB314
2

MODEL: GPZ 305 A1
FROM > TO: 1983 > 1996
CC: 305
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPZ 305 B2 - B3
305
1983 > 1996
FRONT
FDB314
2

MODEL: GPZ 305 B2 - B3
FROM > TO: 1983 > 1996
CC: 305
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPZ 305 BELT DRIVE
305
1983 > 1996
FRONT
FDB314
2

MODEL: GPZ 305 BELT DRIVE
FROM > TO: 1983 > 1996
CC: 305
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

ELIMINATOR 400 LX/SE
400
1990 >
FRONT
FDB314
2

MODEL: ELIMINATOR 400 LX/SE
FROM > TO: 1990 >
CC: 400
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

EX-4 400
400
1995 >
FRONT
FDB481
2

MODEL: EX-4 400
FROM > TO: 1995 >
CC: 400
FRONT / REAR: front
CODE: FDB481
NUM SET: 2

EX-4 400
400
1995 >
REAR
FDB314
1

MODEL: EX-4 400
FROM > TO: 1995 >
CC: 400
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

GPX 400
400
1985 >
FRONT
FDB314
2

MODEL: GPX 400
FROM > TO: 1985 >
CC: 400
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPX 400
400
1985 >
REAR
FDB339
1

MODEL: GPX 400
FROM > TO: 1985 >
CC: 400
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

GPZ 400
400
1985 > 1987
FRONT
FDB314
2

MODEL: GPZ 400
FROM > TO: 1985 > 1987
CC: 400
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPZ 400
400
1985 > 1987
REAR
FDB339
1

MODEL: GPZ 400
FROM > TO: 1985 > 1987
CC: 400
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

KLE 400
400
1991 >
FRONT
FDB481
1

MODEL: KLE 400
FROM > TO: 1991 >
CC: 400
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KLE 400
400
1991 >
REAR
FDB314
1

MODEL: KLE 400
FROM > TO: 1991 >
CC: 400
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

XANTHUS 400
400
1992 >
FRONT
FDB508
1

MODEL: XANTHUS 400
FROM > TO: 1992 >
CC: 400
FRONT / REAR: front
CODE: FDB508
NUM SET: 1

XANTHUS 400
400
1992 >
REAR
FDB314
1

MODEL: XANTHUS 400
FROM > TO: 1992 >
CC: 400
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Z 400 F2
400
1985 > 1987
FRONT
FDB314
2

MODEL: Z 400 F2
FROM > TO: 1985 > 1987
CC: 400
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

Z 400 F2
400
1985 > 1987
REAR
FDB339
1

MODEL: Z 400 F2
FROM > TO: 1985 > 1987
CC: 400
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

ZR 400 A1 - F
400
1983 >
FRONT
FDB314
2

MODEL: ZR 400 A1 - F
FROM > TO: 1983 >
CC: 400
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

ZX 400 C2
400
1985 >
FRONT
FDB314
2

MODEL: ZX 400 C2
FROM > TO: 1985 >
CC: 400
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

ZX 400 C2
400
1985 >
REAR
FDB339
1

MODEL: ZX 400 C2
FROM > TO: 1985 >
CC: 400
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

GPZ 500 S (EX500)
500
1988 >
FRONT
FDB314
1

MODEL: GPZ 500 S (EX500)
FROM > TO: 1988 >
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GPZ 500 S (EX500)
500
1989 > 1992
FRONT
FDB314
2

MODEL: GPZ 500 S (EX500)
FROM > TO: 1989 > 1992
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GPZ 500 S (EX500)
500
1989 > 1992
REAR
FDB339
1

MODEL: GPZ 500 S (EX500)
FROM > TO: 1989 > 1992
CC: 500
FRONT / REAR: rear
CODE: FDB339
NUM SET: 1

GPZ 500 S (EX500)
500
1993 >
FRONT
FDB574
2

MODEL: GPZ 500 S (EX500)
FROM > TO: 1993 >
CC: 500
FRONT / REAR: front
CODE: FDB574
NUM SET: 2

GPZ 500 S (EX500)
500
1993 >
REAR
FDB481
1

MODEL: GPZ 500 S (EX500)
FROM > TO: 1993 >
CC: 500
FRONT / REAR: rear
CODE: FDB481
NUM SET: 1

GPZ 500 S (EX500)
500
1994 > 1997
FRONT
FDB481
2

MODEL: GPZ 500 S (EX500)
FROM > TO: 1994 > 1997
CC: 500
FRONT / REAR: front
CODE: FDB481
NUM SET: 2

GPZ 500 S (EX500)
500
1994 > 1997
REAR
FDB314
1

MODEL: GPZ 500 S (EX500)
FROM > TO: 1994 > 1997
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLE 500
500
1991 >
FRONT
FDB481
1

MODEL: KLE 500
FROM > TO: 1991 >
CC: 500
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KLE 500
500
1991 >
REAR
FDB314
1

MODEL: KLE 500
FROM > TO: 1991 >
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 500
500
1986 >
FRONT
FDB314
1

MODEL: KX 500
FROM > TO: 1986 >
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 500
500
1986 >
REAR
FDB314
1

MODEL: KX 500
FROM > TO: 1986 >
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KX 500
500
1989 > 1994
FRONT
FDB497
1

MODEL: KX 500
FROM > TO: 1989 > 1994
CC: 500
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

KX 500
500
1989 > 1994
REAR
FDB659
1

MODEL: KX 500
FROM > TO: 1989 > 1994
CC: 500
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 500
500
1994 > 1995
FRONT
FDB892
1

MODEL: KX 500
FROM > TO: 1994 > 1995
CC: 500
FRONT / REAR: front
CODE: FDB892
NUM SET: 1

KX 500
500
1994 > 1995
REAR
FDB659
1

MODEL: KX 500
FROM > TO: 1994 > 1995
CC: 500
FRONT / REAR: rear
CODE: FDB659
NUM SET: 1

KX 500 A1 - A2
500
1983 > 1985
FRONT
FDB314
1

MODEL: KX 500 A1 - A2
FROM > TO: 1983 > 1985
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KX 500 C1
500
1987 > 1988
FRONT
FDB494
1

MODEL: KX 500 C1
FROM > TO: 1987 > 1988
CC: 500
FRONT / REAR: front
CODE: FDB494
NUM SET: 1

KX 500 C1
500
1987 > 1988
REAR
FDB314
1

MODEL: KX 500 C1
FROM > TO: 1987 > 1988
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Z 500 F
500
1983 >
FRONT
FDB314
2

MODEL: Z 500 F
FROM > TO: 1983 >
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

ZR 500 A1
500
1983 >
FRONT
FDB314
2

MODEL: ZR 500 A1
FROM > TO: 1983 >
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

Z 550 F
550
1983 > 1984
FRONT
FDB314
2

MODEL: Z 550 F
FROM > TO: 1983 > 1984
CC: 550
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

Z 550 G1 SHAFT
550
1983 >
FRONT
FDB314
2

MODEL: Z 550 G1 SHAFT
FROM > TO: 1983 >
CC: 550
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

Z 550 GT - SPORT
550
1983 >
FRONT
FDB314
2

MODEL: Z 550 GT - SPORT
FROM > TO: 1983 >
CC: 550
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

ZR 550 A1
550
1983 > 1984
FRONT
FDB314
2

MODEL: ZR 550 A1
FROM > TO: 1983 > 1984
CC: 550
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

KLR 570
570
1988 >
FRONT
FDB314
1

MODEL: KLR 570
FROM > TO: 1988 >
CC: 570
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KLE 600
600
1992 >
FRONT
FDB481
1

MODEL: KLE 600
FROM > TO: 1992 >
CC: 600
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KLE 600
600
1992 >
REAR
FDB314
1

MODEL: KLE 600
FROM > TO: 1992 >
CC: 600
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLR 600
600
1984 > 1988
FRONT
FDB314
1

MODEL: KLR 600
FROM > TO: 1984 > 1988
CC: 600
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KLR 600 ELECTRIC STARTER
600
1985 >
FRONT
FDB314
1

MODEL: KLR 600 ELECTRIC STARTER
FROM > TO: 1985 >
CC: 600
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KLR 600 S
600
1992 >
FRONT
FDB314
1

MODEL: KLR 600 S
FROM > TO: 1992 >
CC: 600
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

KL 650 TENGAI
650
1989 > 1992
FRONT
FDB481
1

MODEL: KL 650 TENGAI
FROM > TO: 1989 > 1992
CC: 650
FRONT / REAR: front
CODE: FDB481
NUM SET: 1

KL 650 TENGAI
650
1989 > 1992
REAR
FDB314
1

MODEL: KL 650 TENGAI
FROM > TO: 1989 > 1992
CC: 650
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLR 650
650
1987 > 1994
FRONT
FDB494
1

MODEL: KLR 650
FROM > TO: 1987 > 1994
CC: 650
FRONT / REAR: front
CODE: FDB494
NUM SET: 1

KLR 650
650
1987 > 2005
REAR
FDB314
1

MODEL: KLR 650
FROM > TO: 1987 > 2005
CC: 650
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLR 650
650
1995 > 2005
FRONT
FDB2048
1

MODEL: KLR 650
FROM > TO: 1995 > 2005
CC: 650
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1

KLR 650
650
2008 >
FRONT
FDB497
1

MODEL: KLR 650
FROM > TO: 2008 >
CC: 650
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

KLR 650
650
2008 >
REAR
FDB631
1

MODEL: KLR 650
FROM > TO: 2008 >
CC: 650
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

KLR 650
650
1987 > 1994
REAR
FDB314
1

MODEL: KLR 650
FROM > TO: 1987 > 1994
CC: 650
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

KLR 650
650
1995 > 2005
REAR
FDB314
1

MODEL: KLR 650
FROM > TO: 1995 > 2005
CC: 650
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
125
1989 > 1990
FRONT
FDB314
1

MODEL: 125
FROM > TO: 1989 > 1990
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

125
125
1989 > 1990
REAR
FDB314
1

MODEL: 125
FROM > TO: 1989 > 1990
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

250
250
1989 > 1990
FRONT
FDB314
1

MODEL: 250
FROM > TO: 1989 > 1990
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

250
250
1989 > 1990
REAR
FDB314
1

MODEL: 250
FROM > TO: 1989 > 1990
CC: 250
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

350
350
1989 > 1990
FRONT
FDB314
1

MODEL: 350
FROM > TO: 1989 > 1990
CC: 350
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

350
350
1989 > 1990
REAR
FDB314
1

MODEL: 350
FROM > TO: 1989 > 1990
CC: 350
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

GS 350 4 STROKE
350
1993 >
FRONT
FDB2018
1

MODEL: GS 350 4 STROKE
FROM > TO: 1993 >
CC: 350
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

GS 350 4 STROKE
350
1993 >
REAR
FDB314
1

MODEL: GS 350 4 STROKE
FROM > TO: 1993 >
CC: 350
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Duke 400
400
1994 > 1998
FRONT
FRP408
1

MODEL: Duke 400
FROM > TO: 1994 > 1998
CC: 400
FRONT / REAR: front
CODE: FRP408
NUM SET: 1

Duke 400
400
1994 > 1998
REAR
FDB314
1

MODEL: Duke 400
FROM > TO: 1994 > 1998
CC: 400
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

500
500
1989 > 1990
FRONT
FDB314
1

MODEL: 500
FROM > TO: 1989 > 1990
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

500
500
1989 > 1990
REAR
FDB314
1

MODEL: 500
FROM > TO: 1989 > 1990
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MX 600
600
1992 >
FRONT
FDB2018
1

MODEL: MX 600
FROM > TO: 1992 >
CC: 600
FRONT / REAR: front
CODE: FDB2018
NUM SET: 1

MX 600
600
1992 >
REAR
FDB314
1

MODEL: MX 600
FROM > TO: 1992 >
CC: 600
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
VISA R
50
2011 > 2012
FRONT
FDB314
1

MODEL: VISA R
FROM > TO: 2011 > 2012
CC: 50
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

VISA R 110
110
2011 > 2011
FRONT
FDB314
1

MODEL: VISA R 110
FROM > TO: 2011 > 2011
CC: 110
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

Agility 125 R16 City
125
7
2008 > 2017
FRONT
FDB2096
1

MODEL: Agility 125 R16 City
FROM > TO: 2008 > 2017
CC: 125
KW: 7
FRONT / REAR: front
CODE: FDB2096
NUM SET: 1

Agility 125 R16 City
125
7
2008 > 2017
REAR
FDB314
1

MODEL: Agility 125 R16 City
FROM > TO: 2008 > 2017
CC: 125
KW: 7
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
Citystar 125 i Blue Line (H4ABAA)
125
8
2015 >
FRONT
FDB497
1

MODEL: Citystar 125 i Blue Line (H4ABAA)
FROM > TO: 2015 >
CC: 125
KW: 8
FRONT / REAR: front
CODE: FDB497
NUM SET: 1

Citystar 125 i Blue Line (H4ABAA)
125
8
2015 >
REAR
FDB314
1

MODEL: Citystar 125 i Blue Line (H4ABAA)
FROM > TO: 2015 >
CC: 125
KW: 8
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

DJANGO 125 (EVASION)
125
2014 >
FRONT
FDB2256
1

MODEL: DJANGO 125 (EVASION)
FROM > TO: 2014 >
CC: 125
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1

DJANGO 125 (EVASION)
125
2014 >
REAR
FDB314
1

MODEL: DJANGO 125 (EVASION)
FROM > TO: 2014 >
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Django 125 (M2)
125
7
2014 >
FRONT
FDB2256
1

MODEL: Django 125 (M2)
FROM > TO: 2014 >
CC: 125
KW: 7
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1

Django 125 (M2)
125
7
2014 >
REAR
FDB314
1

MODEL: Django 125 (M2)
FROM > TO: 2014 >
CC: 125
KW: 7
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

DJANGO 125 (SPORT)
125
2014 >
FRONT
FDB2256
1

MODEL: DJANGO 125 (SPORT)
FROM > TO: 2014 >
CC: 125
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1

DJANGO 125 (SPORT)
125
2014 >
REAR
FDB314
1

MODEL: DJANGO 125 (SPORT)
FROM > TO: 2014 >
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

DJANGO 150 (EVASION)
150
2014 >
FRONT
FDB2256
1

MODEL: DJANGO 150 (EVASION)
FROM > TO: 2014 >
CC: 150
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1
SYSTEM: PEUGEOT

DJANGO 150 (EVASION)
150
2014 >
REAR
FDB314
1

MODEL: DJANGO 150 (EVASION)
FROM > TO: 2014 >
CC: 150
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1
SYSTEM: PEUGEOT

DJANGO 150 (SPORT)
150
2014 >
FRONT
FDB2256
1

MODEL: DJANGO 150 (SPORT)
FROM > TO: 2014 >
CC: 150
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1
SYSTEM: PEUGEOT

DJANGO 150 (SPORT)
150
2014 >
REAR
FDB314
1

MODEL: DJANGO 150 (SPORT)
FROM > TO: 2014 >
CC: 150
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1
SYSTEM: PEUGEOT

Django 150 (M2)
151
8
2014 >
FRONT
FDB2256
1

MODEL: Django 150 (M2)
FROM > TO: 2014 >
CC: 151
KW: 8
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1
SYSTEM: PEUGEOT

Django 150 (M2)
151
8
2014 >
REAR
FDB314
1

MODEL: Django 150 (M2)
FROM > TO: 2014 >
CC: 151
KW: 8
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1
SYSTEM: PEUGEOT

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
300 E Stinger
300
2009 > 2011
FRONT
FDB314
2

MODEL: 300 E Stinger
FROM > TO: 2009 > 2011
CC: 300
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

300 E Stinger
300
2009 > 2011
REAR
FDB314
1

MODEL: 300 E Stinger
FROM > TO: 2009 > 2011
CC: 300
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

300 e XLC
300
2007 > 2008
FRONT
FDB314
2

MODEL: 300 e XLC
FROM > TO: 2007 > 2008
CC: 300
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

300 e XLC
300
2007 > 2008
REAR
FDB314
1

MODEL: 300 e XLC
FROM > TO: 2007 > 2008
CC: 300
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

300 e XLC Stinger
300
2007 > 2008
FRONT
FDB314
2

MODEL: 300 e XLC Stinger
FROM > TO: 2007 > 2008
CC: 300
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

300 e XLC Stinger
300
2007 > 2008
REAR
FDB314
1

MODEL: 300 e XLC Stinger
FROM > TO: 2007 > 2008
CC: 300
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Jow 300
300
2007 > 2008
FRONT
FDB314
2

MODEL: Jow 300
FROM > TO: 2007 > 2008
CC: 300
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

Jow 300
300
2007 > 2008
REAR
FDB314
1

MODEL: Jow 300
FROM > TO: 2007 > 2008
CC: 300
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

RL 300 Buggie
300
2009 > 2011
FRONT
FDB314
2

MODEL: RL 300 Buggie
FROM > TO: 2009 > 2011
CC: 300
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

RL 300 Buggie
300
2009 > 2011
REAR
FDB314
1

MODEL: RL 300 Buggie
FROM > TO: 2009 > 2011
CC: 300
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

QZ 450 Sport
450
2008 > 2009
FRONT
FDB314
2

MODEL: QZ 450 Sport
FROM > TO: 2008 > 2009
CC: 450
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

QZ 450 Sport
450
2008 > 2009
REAR
FDB314
1

MODEL: QZ 450 Sport
FROM > TO: 2008 > 2009
CC: 450
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

XLC 500
500
2010 > 2011
FRONT
FDB314
2

MODEL: XLC 500
FROM > TO: 2010 > 2011
CC: 500
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

XLC 500
500
2010 > 2011
REAR
FDB314
1

MODEL: XLC 500
FROM > TO: 2010 > 2011
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

RS 7 4WD
700
2010 > 2011
FRONT
FDB2184
2

MODEL: RS 7 4WD
FROM > TO: 2010 > 2011
CC: 700
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

RS 7 4WD
700
2010 > 2011
REAR
FDB314
1

MODEL: RS 7 4WD
FROM > TO: 2010 > 2011
CC: 700
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

X7 R
700
2010 > 2011
FRONT
FDB2184
2

MODEL: X7 R
FROM > TO: 2010 > 2011
CC: 700
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

X7 R
700
2010 > 2011
REAR
FDB314
1

MODEL: X7 R
FROM > TO: 2010 > 2011
CC: 700
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

RS 8
800
2010 > 2011
FRONT
FDB2184
2

MODEL: RS 8
FROM > TO: 2010 > 2011
CC: 800
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

RS 8
800
2010 > 2011
REAR
FDB314
1

MODEL: RS 8
FROM > TO: 2010 > 2011
CC: 800
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
OR 50
50
1980 >
FRONT
FDB314
1

MODEL: OR 50
FROM > TO: 1980 >
CC: 50
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

ZR 50 SKX - SLKX
50
1981 > 1987
FRONT
FDB314
1

MODEL: ZR 50 SKX - SLKX
FROM > TO: 1981 > 1987
CC: 50
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

RG 80 Gamma (NC11A)
79
7
1988 > 1993
FRONT
FDB437
1

MODEL: RG 80 Gamma (NC11A)
FROM > TO: 1988 > 1993
CC: 79
KW: 7
FRONT / REAR: front
CODE: FDB437
NUM SET: 1

3 E 80
80
>
FRONT
FDB314
1

MODEL: 3 E 80
FROM > TO: >
CC: 80
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GT 80 L
80
1981 >
FRONT
FDB314
1

MODEL: GT 80 L
FROM > TO: 1981 >
CC: 80
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GP 100 C - DEN - N - X
100
1978 > 1987
FRONT
FDB314
1

MODEL: GP 100 C - DEN - N - X
FROM > TO: 1978 > 1987
CC: 100
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GN 125 R
125
1994 > 2001
FRONT
FDB314
1

MODEL: GN 125 R
FROM > TO: 1994 > 2001
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GS 125 ESR / ESX
125
1995 > 2000
FRONT
FDB314
1

MODEL: GS 125 ESR / ESX
FROM > TO: 1995 > 2000
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GS 125 ESZ
125
1982 >
FRONT
FDB314
1

MODEL: GS 125 ESZ
FROM > TO: 1982 >
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

RG 125 E
125
1982 > 1984
FRONT
FDB314
1

MODEL: RG 125 E
FROM > TO: 1982 > 1984
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

X4 125
125
>
FRONT
FDB314
1

MODEL: X4 125
FROM > TO: >
CC: 125
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GSX 400 F Katana (GS40XF)
395
31
1981 > 1983
FRONT
FDB314
1

MODEL: GSX 400 F Katana (GS40XF)
FROM > TO: 1981 > 1983
CC: 395
KW: 31
FRONT / REAR: front
CODE: FDB314
NUM SET: 1

GS 450 S/SU (GL51F)
448
1987 >
FRONT
FDB314
2

MODEL: GS 450 S/SU (GL51F)
FROM > TO: 1987 >
CC: 448
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

GS 450 S/SU (GL51F)
448
1987 >
REAR
FDB338
1

MODEL: GS 450 S/SU (GL51F)
FROM > TO: 1987 >
CC: 448
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
250Blade/Congo ATV
250
2006 > 2007
FRONT
FDB314
2

MODEL: 250Blade/Congo ATV
FROM > TO: 2006 > 2007
CC: 250
FRONT / REAR: front
CODE: FDB314
NUM SET: 2

250Blade/Congo ATV
250
2006 > 2007
REAR
FDB313
1

MODEL: 250Blade/Congo ATV
FROM > TO: 2006 > 2007
CC: 250
FRONT / REAR: rear
CODE: FDB313
NUM SET: 1

Blade325 LE Quad (4x2)
325
2008 > 2010
FRONT
FDB313
2

MODEL: Blade325 LE Quad (4x2)
FROM > TO: 2008 > 2010
CC: 325
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Blade325 LE Quad (4x2)
325
2008 > 2010
REAR
FDB314
1

MODEL: Blade325 LE Quad (4x2)
FROM > TO: 2008 > 2010
CC: 325
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade325 Quad (4x2)
325
2007 > 2011
FRONT
FDB313
2

MODEL: Blade325 Quad (4x2)
FROM > TO: 2007 > 2011
CC: 325
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Blade325 Quad (4x2)
325
2007 > 2011
REAR
FDB314
1

MODEL: Blade325 Quad (4x2)
FROM > TO: 2007 > 2011
CC: 325
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade325 SL Quad (4x2)
325
2011 > 2012
FRONT
FDB313
2

MODEL: Blade325 SL Quad (4x2)
FROM > TO: 2011 > 2012
CC: 325
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Blade325 SL Quad (4x2)
325
2011 > 2012
REAR
FDB314
1

MODEL: Blade325 SL Quad (4x2)
FROM > TO: 2011 > 2012
CC: 325
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Target325 (4X2)
325
2009 > 2012
FRONT
FDB313
2

MODEL: Target325 (4X2)
FROM > TO: 2009 > 2012
CC: 325
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Target325 (4X2)
325
2009 > 2012
REAR
FDB314
1

MODEL: Target325 (4X2)
FROM > TO: 2009 > 2012
CC: 325
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Target400 (4X2)
400
2009 > 2010
FRONT
FDB313
2

MODEL: Target400 (4X2)
FROM > TO: 2009 > 2010
CC: 400
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Target400 (4X2)
400
2009 > 2010
REAR
FDB314
1

MODEL: Target400 (4X2)
FROM > TO: 2009 > 2010
CC: 400
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Target425 (4X4)
425
2009 > 2011
FRONT
FDB313
2

MODEL: Target425 (4X4)
FROM > TO: 2009 > 2011
CC: 425
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Target425 (4X4)
425
2009 > 2011
REAR
FDB314
1

MODEL: Target425 (4X4)
FROM > TO: 2009 > 2011
CC: 425
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade450 SE (4x4)
450
2010 > 2011
FRONT
FDB2184
2

MODEL: Blade450 SE (4x4)
FROM > TO: 2010 > 2011
CC: 450
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade450 SE (4x4)
450
2010 > 2011
REAR
FDB314
1

MODEL: Blade450 SE (4x4)
FROM > TO: 2010 > 2011
CC: 450
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade460 R Target
460
2012 >
FRONT
FDB313
2

MODEL: Blade460 R Target
FROM > TO: 2012 >
CC: 460
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Blade460 R Target
460
2012 >
REAR
FDB314
1

MODEL: Blade460 R Target
FROM > TO: 2012 >
CC: 460
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade460 SL IRS 4x4
460
2012 >
FRONT
FDB2184
2

MODEL: Blade460 SL IRS 4x4
FROM > TO: 2012 >
CC: 460
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade460 SL IRS 4x4
460
2012 >
REAR
FDB314
1

MODEL: Blade460 SL IRS 4x4
FROM > TO: 2012 >
CC: 460
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Target500 (4X2)
500
2009 > 2010
FRONT
FDB313
2

MODEL: Target500 (4X2)
FROM > TO: 2009 > 2010
CC: 500
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Target500 (4X2)
500
2009 > 2010
REAR
FDB314
1

MODEL: Target500 (4X2)
FROM > TO: 2009 > 2010
CC: 500
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade510 LE
510
2011 > 2012
FRONT
FDB2184
2

MODEL: Blade510 LE
FROM > TO: 2011 > 2012
CC: 510
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade510 LE
510
2011 > 2012
REAR
FDB314
1

MODEL: Blade510 LE
FROM > TO: 2011 > 2012
CC: 510
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

525SE 4X4
525
2009 >
FRONT
FDB2184
2

MODEL: 525SE 4X4
FROM > TO: 2009 >
CC: 525
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

525SE 4X4
525
2009 >
REAR
FDB314
1

MODEL: 525SE 4X4
FROM > TO: 2009 >
CC: 525
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade525 SL 4X4
525
2009 > 2010
FRONT
FDB2184
2

MODEL: Blade525 SL 4X4
FROM > TO: 2009 > 2010
CC: 525
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade525 SL 4X4
525
2009 > 2010
REAR
FDB314
1

MODEL: Blade525 SL 4X4
FROM > TO: 2009 > 2010
CC: 525
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Target525 (4X4)
525
2009 > 2011
FRONT
FDB313
2

MODEL: Target525 (4X4)
FROM > TO: 2009 > 2011
CC: 525
FRONT / REAR: front
CODE: FDB313
NUM SET: 2

Target525 (4X4)
525
2009 > 2011
REAR
FDB314
1

MODEL: Target525 (4X4)
FROM > TO: 2009 > 2011
CC: 525
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

550IRS Blade LT
550
2010 > 2012
FRONT
FDB2184
2

MODEL: 550IRS Blade LT
FROM > TO: 2010 > 2012
CC: 550
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

550IRS Blade LT
550
2010 > 2012
REAR
FDB314
1

MODEL: 550IRS Blade LT
FROM > TO: 2010 > 2012
CC: 550
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade550 IRS Target
550
2011 > 2012
FRONT
FDB2184
2

MODEL: Blade550 IRS Target
FROM > TO: 2011 > 2012
CC: 550
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade550 IRS Target
550
2011 > 2012
REAR
FDB314
1

MODEL: Blade550 IRS Target
FROM > TO: 2011 > 2012
CC: 550
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade550 LT 4X4
550
2010 > 2011
FRONT
FDB2184
2

MODEL: Blade550 LT 4X4
FROM > TO: 2010 > 2011
CC: 550
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade550 LT 4X4
550
2010 > 2011
REAR
FDB314
1

MODEL: Blade550 LT 4X4
FROM > TO: 2010 > 2011
CC: 550
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade550 SE 4X4
550
2009 > 2011
FRONT
FDB2184
2

MODEL: Blade550 SE 4X4
FROM > TO: 2009 > 2011
CC: 550
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade550 SE 4X4
550
2009 > 2011
REAR
FDB314
1

MODEL: Blade550 SE 4X4
FROM > TO: 2009 > 2011
CC: 550
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Blade550 SL 4X4
550
2009 > 2010
FRONT
FDB2184
2

MODEL: Blade550 SL 4X4
FROM > TO: 2009 > 2010
CC: 550
FRONT / REAR: front
CODE: FDB2184
NUM SET: 2

Blade550 SL 4X4
550
2009 > 2010
REAR
FDB314
1

MODEL: Blade550 SL 4X4
FROM > TO: 2009 > 2010
CC: 550
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
all models 80
80
1990 > 1993
FRONT
FDB499
1

MODEL: all models 80
FROM > TO: 1990 > 1993
CC: 80
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

all models 80
80
1990 > 1993
REAR
FDB314
1

MODEL: all models 80
FROM > TO: 1990 > 1993
CC: 80
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

GS / MC 125
125
1990 > 1993
FRONT
FDB499
1

MODEL: GS / MC 125
FROM > TO: 1990 > 1993
CC: 125
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

GS / MC 125
125
1990 > 1993
REAR
FDB314
1

MODEL: GS / MC 125
FROM > TO: 1990 > 1993
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
YFM 90 R Raptor (with Rear Parking Brake)
90
2010 > 2013
REAR
FDB314
1

MODEL: YFM 90 R Raptor (with Rear Parking Brake)
FROM > TO: 2010 > 2013
CC: 90
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

TDR 125 (Italia)
125
1990 > 1991
FRONT
FDB499
1

MODEL: TDR 125 (Italia)
FROM > TO: 1990 > 1991
CC: 125
FRONT / REAR: front
CODE: FDB499
NUM SET: 1

TDR 125 (Italia)
125
1990 > 1991
REAR
FDB314
1

MODEL: TDR 125 (Italia)
FROM > TO: 1990 > 1991
CC: 125
FRONT / REAR: rear
CODE: FDB314
NUM SET: 1

Footer Logo

PRIVACY POLICY | TERMS OF USE | COOKIES PREFERENCES
FEDERAL MOGUL ITALY S.R.L. - VAT: IT00476190012
©2023 DRIV AUTOMOTIVE INC. OR ONE OF ITS AFFILIATES IN ONE OR MORE COUNTRIES.
