REAR

FRONT

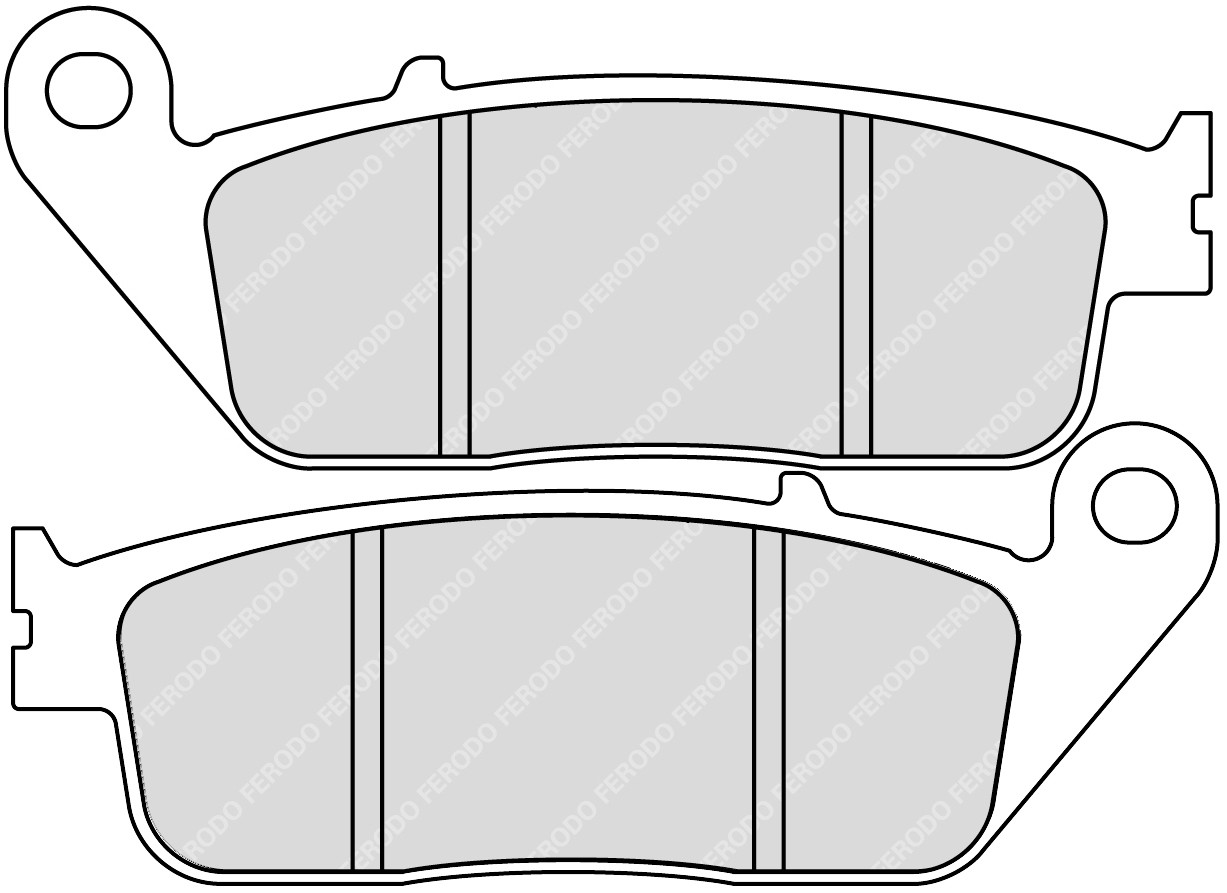

FDB570EF

EF: Mid-metallic/Road


102mm = 4.016"
39mm = 1.535"
8.3mm = 0.327"
MATERIAL

EF

Eco friction

DISCOVER MORE
MID-METALLIC compound
Main Use: ROAD
Certification : TUV/KBA, ECE R-90
Recommended for: scooters, mopeds and motorcycles
FAMILY SHAPE

FDB570

DISCOVER
SHAPE
THICKNESS mm
NOTES
10.3
10.5
With Pin
9.8
BRAKING
716
BREMBO
07098
BREMBO
07HO30
BREMBO
7074
BREMBO
7075
BREMBO
7098
BRENTA
4059
BRENTA
3059
CL BRAKES
2256
CL BRAKES
3065
CL BRAKES
3003
COBREQ
N-930
EBC
FA142
EBC
FA226
FRAS-LE
PD/870
GALFER
FD266
GOLD FREN
022
LUCAS/TRW
MCB598
LUCAS/TRW
MCB845
LUCAS/TRW
MCB764
NEWFREN
FD0325
NEWFREN
FD0132
SBS
627
SBS
184
SBS
183
VESRAH
VD-156
OEM Honda
45106 ML7 922
OEM Honda
06455 MAA 405
OEM Honda
45105 MR4 901
OEM Honda
45105 ML7 922
OEM Honda
45105 ML7 405
OEM Honda
06455-MV4-405
OEM Honda
06455 MZ0 760
OEM Honda
45105 MW3 671
OEM Honda
06455 MW3 405
OEM Honda
06455 MV4 405
OEM Honda
06455 MAA 415
OEM Honda
06455 MAH 405
OEM Honda
06455 MAL G01
OEM Honda
06455 MAL G02
OEM Honda
06455 MBK 751
OEM Honda
06455 MBK 752
OEM Honda
06455 MCK A01
OEM Honda
06455 MCK A02
OEM Honda
06455 MW3 415
OEM Honda
06455 MEA 671
OEM Honda
06455 MS9 405
OEM Honda
06455 MR4 415
OEM Honda
06455 MR4 405
OEM Honda
06455 MKP DQ1
OEM Honda
06455 MEA 672
OEM Kawasaki
43082 0079
OEM Kawasaki
43082 0150
OEM Suzuki
59300 21840
OEM Suzuki
59300 21850
OEM Suzuki
59300 21820
OEM Triumph
T2020537
OEM Yamaha
3D7 W0045 10
OEM Yamaha
5YU W0046 00
OEM Yamaha
1S6 W0045 00

FDB570 OTHER MATERIALS

5 PART(S) FOUND
FRONT / REAR
FDB570ST
ST: Sintered/Road

FRONT / REAR
FDB570SM
SM: Sintered/Road/Maxiscooter

FRONT / REAR
FDB570P
P: Mid-metallic/Road

FRONT / REAR
FDB570XRAC
XRAC: Ceramic/Racing

FRONT / REAR
FDB570CPRO
CPRO: Ceramic/Racing

FDB570 APPLICATION

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
11
2014 >
FRONT
FDB570
2

MODEL: C evolution
FROM > TO: 2014 >
CC: 0
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

11
2014 >
REAR
FDB570
1

MODEL: C evolution
FROM > TO: 2014 >
CC: 0
KW: 11
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

600
2015 >
FRONT
FDB570
2

MODEL: C 600 GT Special Edition
FROM > TO: 2015 >
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
2015 >
REAR
FDB570
1

MODEL: C 600 GT Special Edition
FROM > TO: 2015 >
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2013 >
FRONT
FDB570
2

MODEL: C 600 SPORT Highline
FROM > TO: 2013 >
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
2013 >
REAR
FDB570
1

MODEL: C 600 SPORT Highline
FROM > TO: 2013 >
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2015 >
FRONT
FDB570
2

MODEL: C 600 SPORT Special Edition
FROM > TO: 2015 >
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
2015 >
REAR
FDB570
1

MODEL: C 600 SPORT Special Edition
FROM > TO: 2015 >
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

647
44
2012 >
FRONT
FDB570
2

MODEL: C 600 Sport (C65)
FROM > TO: 2012 >
CC: 647
KW: 44
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

647
44
2012 >
REAR
FDB570
1

MODEL: C 600 Sport (C65)
FROM > TO: 2012 >
CC: 647
KW: 44
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

647
44
2012 >
FRONT
FDB570
2

MODEL: C 650 GT (C65)
FROM > TO: 2012 >
CC: 647
KW: 44
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

647
44
2012 >
REAR
FDB570
1

MODEL: C 650 GT (C65)
FROM > TO: 2012 >
CC: 647
KW: 44
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

647
44
2015 >
FRONT
FDB570
2

MODEL: C 650 Sport (3C65)
FROM > TO: 2015 >
CC: 647
KW: 44
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

647
44
2015 >
REAR
FDB570
1

MODEL: C 650 Sport (3C65)
FROM > TO: 2015 >
CC: 647
KW: 44
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

650
2020 >
FRONT
FDB570
2

MODEL: C 650 Evo
FROM > TO: 2020 >
CC: 650
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

650
2020 >
REAR
FDB570
1

MODEL: C 650 Evo
FROM > TO: 2020 >
CC: 650
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

650
2013 >
FRONT
FDB570
2

MODEL: C 650 GT Highline
FROM > TO: 2013 >
CC: 650
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

650
2013 >
REAR
FDB570
1

MODEL: C 650 GT Highline
FROM > TO: 2013 >
CC: 650
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
900
1993 >
FRONT
FDB570
2

MODEL: 900 CAT
FROM > TO: 1993 >
CC: 900
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

900
1993 >
REAR
1

MODEL: 900 CAT
FROM > TO: 1993 >
CC: 900
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

904
54
1999 >
FRONT
FDB570
2

MODEL: Gran Canyon
FROM > TO: 1999 >
CC: 904
KW: 54
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

904
54
1999 >
REAR
1

MODEL: Gran Canyon
FROM > TO: 1999 >
CC: 904
KW: 54
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

996
73
2000 > 2005
FRONT
FDB570
2

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 > 2005
CC: 996
KW: 73
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

996
73
2000 > 2005
REAR
1

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 > 2005
CC: 996
KW: 73
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
11
2017 >
FRONT
FDB570
1

MODEL: NSS 125 FORZA (JF69)
FROM > TO: 2017 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
11
2017 >
REAR
1

MODEL: NSS 125 FORZA (JF69)
FROM > TO: 2017 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1

125
11
2015 >
FRONT
FDB570
1

MODEL: NSS 125 Forza (JF60)
FROM > TO: 2015 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

125
11
2015 >
REAR
1

MODEL: NSS 125 Forza (JF60)
FROM > TO: 2015 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1
SYSTEM: Nissin

125
1991 > 1994
FRONT
FDB570
2

MODEL: RS 125 R
FROM > TO: 1991 > 1994
CC: 125
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

125
1991 > 1994
REAR
1

MODEL: RS 125 R
FROM > TO: 1991 > 1994
CC: 125
FRONT / REAR: rear
CODE: FDB2192
NUM SET: 1

125
1995 > 2010
FRONT
2

MODEL: RS 125 R
FROM > TO: 1995 > 2010
CC: 125
FRONT / REAR: front
CODE: FDB858
NUM SET: 2

125
1995 > 2010
REAR
1

MODEL: RS 125 R
FROM > TO: 1995 > 2010
CC: 125
FRONT / REAR: rear
CODE: FDB250
NUM SET: 1

239
13
1993 > 2005
FRONT
FDB570
1

MODEL: CB 250 Two-Fifty (MC26)
FROM > TO: 1993 > 2005
CC: 239
KW: 13
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

249
19
2011 >
FRONT
FDB570
1

MODEL: CBR 250 R (MC41)
FROM > TO: 2011 >
CC: 249
KW: 19
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

249
19
2011 >
REAR
1

MODEL: CBR 250 R (MC41)
FROM > TO: 2011 >
CC: 249
KW: 19
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1

250
1991 > 2001
FRONT
FDB570
1

MODEL: CB 250 NIGHT HAWK
FROM > TO: 1991 > 2001
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

250
1993 > 2005
FRONT
FDB570
1

MODEL: CB 250 TWO FIFTY
FROM > TO: 1993 > 2005
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

250
1995 >
FRONT
FDB570
1

MODEL: CBX 250 F
FROM > TO: 1995 >
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

250
1991 >
FRONT
FDB570
2

MODEL: CB 250 JADE
FROM > TO: 1991 >
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

250
1991 >
REAR
1

MODEL: CB 250 JADE
FROM > TO: 1991 >
CC: 250
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

250
1994 >
FRONT
FDB570
2

MODEL: VT 250 CR MAGNA
FROM > TO: 1994 >
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

250
1988 >
FRONT
FDB570
1

MODEL: VT 250 SPADA
FROM > TO: 1988 >
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

250
1988 >
REAR
1

MODEL: VT 250 SPADA
FROM > TO: 1988 >
CC: 250
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

250
1992 >
FRONT
FDB570
1

MODEL: VTZ 250 XELVIS
FROM > TO: 1992 >
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

250
1992 >
REAR
1

MODEL: VTZ 250 XELVIS
FROM > TO: 1992 >
CC: 250
FRONT / REAR: rear
CODE: FDB606
NUM SET: 1

279
18
2019 >
FRONT
FDB570
1

MODEL: NSS 300 Forza
FROM > TO: 2019 >
CC: 279
KW: 18
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

279
18
2019 >
REAR
1

MODEL: NSS 300 Forza
FROM > TO: 2019 >
CC: 279
KW: 18
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1
SYSTEM: Nissin

350
2022 >
FRONT
FDB570
1

MODEL: ADV 350
FROM > TO: 2022 >
CC: 350
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

350
2022 >
REAR
1

MODEL: ADV 350
FROM > TO: 2022 >
CC: 350
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1
SYSTEM: Nissin

398
28
2003 > 2008
FRONT
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2003 > 2008
CC: 398
KW: 28
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

398
28
2003 > 2008
REAR
FDB570
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2003 > 2008
CC: 398
KW: 28
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

398
28
2009 > 2017
FRONT
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2009 > 2017
CC: 398
KW: 28
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

398
28
2009 > 2017
REAR
FDB570
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2009 > 2017
CC: 398
KW: 28
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

399
28
2003 > 2008
FRONT
1

MODEL: FJS 400 SW-T
FROM > TO: 2003 > 2008
CC: 399
KW: 28
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

399
28
2003 > 2008
REAR
FDB570
1

MODEL: FJS 400 SW-T
FROM > TO: 2003 > 2008
CC: 399
KW: 28
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

399
28
2009 > 2017
FRONT
1

MODEL: FJS 400 SW-T
FROM > TO: 2009 > 2017
CC: 399
KW: 28
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

399
28
2009 > 2017
REAR
FDB570
1

MODEL: FJS 400 SW-T
FROM > TO: 2009 > 2017
CC: 399
KW: 28
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

399
39
1992 >
FRONT
FDB570
2

MODEL: CB 400 Super Four (NC31)
FROM > TO: 1992 >
CC: 399
KW: 39
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

399
39
1992 >
REAR
1

MODEL: CB 400 Super Four (NC31)
FROM > TO: 1992 >
CC: 399
KW: 39
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

399
45
1990 > 1994
FRONT
FDB570
2

MODEL: CBR 400 RR (NC29)
FROM > TO: 1990 > 1994
CC: 399
KW: 45
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

399
45
1990 > 1994
REAR
1

MODEL: CBR 400 RR (NC29)
FROM > TO: 1990 > 1994
CC: 399
KW: 45
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

399
29
2009 >
FRONT
1

MODEL: SW-T 400 (NF03)
FROM > TO: 2009 >
CC: 399
KW: 29
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

399
29
2009 >
REAR
FDB570
1

MODEL: SW-T 400 (NF03)
FROM > TO: 2009 >
CC: 399
KW: 29
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

400
1990 >
FRONT
FDB570
2

MODEL: CB 400 FK (CB-1)
FROM > TO: 1990 >
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

400
1990 >
REAR
1

MODEL: CB 400 FK (CB-1)
FROM > TO: 1990 >
CC: 400
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

400
1989 >
FRONT
FDB570
1

MODEL: CB-1 400 F
FROM > TO: 1989 >
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

400
1989 >
REAR
1

MODEL: CB-1 400 F
FROM > TO: 1989 >
CC: 400
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

400
1987 > 1989
FRONT
FDB570
2

MODEL: CBR 400 RRJ/RRK (NC23) Tri-Arm (102/109)
FROM > TO: 1987 > 1989
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

MODEL: CBR 400 RRJ/RRK (NC23) Tri-Arm (102/109)
FROM > TO: 1987 > 1989
CC: 400
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1


MODEL: Silver Wing 400 (FJS400)
FROM > TO: 2002 >
CC: 400
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

400
2002 >
REAR
FDB570
1

MODEL: Silver Wing 400 (FJS400)
FROM > TO: 2002 >
CC: 400
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

400
2003 > 2008
FRONT
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2003 > 2008
CC: 400
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

400
2003 > 2008
REAR
FDB570
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2003 > 2008
CC: 400
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

400
2009 > 2017
FRONT
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2009 > 2017
CC: 400
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

400
2009 > 2017
REAR
FDB570
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2009 > 2017
CC: 400
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

400
2006 >
FRONT
1

MODEL: SILVERWING 400
FROM > TO: 2006 >
CC: 400
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

400
2006 >
REAR
FDB570
1

MODEL: SILVERWING 400
FROM > TO: 2006 >
CC: 400
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

400
2000 >
FRONT
FDB570
1

MODEL: XR 400 SUPERMOTARD
FROM > TO: 2000 >
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

400
2000 >
REAR
1

MODEL: XR 400 SUPERMOTARD
FROM > TO: 2000 >
CC: 400
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

471
34
2019 >
FRONT
FDB570
1

MODEL: CMX 500 Rebel (PC56)
FROM > TO: 2019 >
CC: 471
KW: 34
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

471
34
2019 >
REAR
1

MODEL: CMX 500 Rebel (PC56)
FROM > TO: 2019 >
CC: 471
KW: 34
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

471
34
2020 >
FRONT
FDB570
1

MODEL: CMX 500 Rebel S
FROM > TO: 2020 >
CC: 471
KW: 34
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

471
34
2020 >
REAR
1

MODEL: CMX 500 Rebel S
FROM > TO: 2020 >
CC: 471
KW: 34
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

500
35
2013 >
FRONT
FDB570
1

MODEL: CB 500 F (PC45)
FROM > TO: 2013 >
CC: 500
KW: 35
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

500
35
2013 >
REAR
1

MODEL: CB 500 F (PC45)
FROM > TO: 2013 >
CC: 500
KW: 35
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

500
35
2017 > 2018
FRONT
FDB570
1

MODEL: CB 500 F (PC58)
FROM > TO: 2017 > 2018
CC: 500
KW: 35
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

500
35
2017 > 2018
REAR
1

MODEL: CB 500 F (PC58)
FROM > TO: 2017 > 2018
CC: 500
KW: 35
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

500
37
1994 > 1996
FRONT
FDB570
1

MODEL: CB 500 (PC26)
FROM > TO: 1994 > 1996
CC: 500
KW: 37
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

500
35
2013 >
FRONT
FDB570
1

MODEL: CB 500 X (PC46)
FROM > TO: 2013 >
CC: 500
KW: 35
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

500
35
2013 >
REAR
1

MODEL: CB 500 X (PC46)
FROM > TO: 2013 >
CC: 500
KW: 35
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

500
35
2016 > 2016
FRONT
FDB570
1

MODEL: CBR 500 R (PC44B)
FROM > TO: 2016 > 2016
CC: 500
KW: 35
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

582
37
2001 > 2008
FRONT
1

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 > 2008
CC: 582
KW: 37
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

582
37
2001 > 2008
REAR
1

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 > 2008
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FDB250
NUM SET: 1
SYSTEM: Hand Brake

582
37
2001 > 2008
REAR
FDB570
1

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 > 2008
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Rear Brake

582
37
2001 > 2008
FRONT
1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 > 2008
CC: 582
KW: 37
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

582
37
2001 > 2008
REAR
1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 > 2008
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FDB250
NUM SET: 1
SYSTEM: Hand Brake

582
37
2001 > 2008
REAR
FDB570
1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 > 2008
CC: 582
KW: 37
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Rear Brake

582
38
2011 >
FRONT
1

MODEL: SW-T 600
FROM > TO: 2011 >
CC: 582
KW: 38
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

582
38
2011 >
REAR
FDB570
1

MODEL: SW-T 600
FROM > TO: 2011 >
CC: 582
KW: 38
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
1998 > 1999
FRONT
FDB570
2

MODEL: CB 600 F Hornet
FROM > TO: 1998 > 1999
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
1998 > 1999
REAR
1

MODEL: CB 600 F Hornet
FROM > TO: 1998 > 1999
CC: 600
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

600
2000 > 2006
FRONT
FDB570
2

MODEL: CB 600 F Hornet
FROM > TO: 2000 > 2006
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
2000 > 2006
REAR
1

MODEL: CB 600 F Hornet
FROM > TO: 2000 > 2006
CC: 600
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

600
75
2007 >
FRONT
FDB570
2

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC: 600
KW: 75
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
75
2007 >
FRONT
2

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC: 600
KW: 75
FRONT / REAR: front
CODE: FDB2196
NUM SET: 2

600
75
2007 >
REAR
1

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC: 600
KW: 75
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

600
75
2007 >
REAR
1

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC: 600
KW: 75
FRONT / REAR: rear
CODE: FDB2221
NUM SET: 1

600
2000 > 2004
FRONT
FDB570
2

MODEL: CB 600 F Hornet S (PC34)
FROM > TO: 2000 > 2004
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
2000 > 2004
REAR
1

MODEL: CB 600 F Hornet S (PC34)
FROM > TO: 2000 > 2004
CC: 600
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

600
2004 >
FRONT
FDB570
2

MODEL: CBF 600 (PC38)
FROM > TO: 2004 >
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

600
2004 >
REAR
1

MODEL: CBF 600 (PC38)
FROM > TO: 2004 >
CC: 600
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

600
1990 > 1992
FRONT
FDB570
1

MODEL: NTV 600 REVERE - HAWK
FROM > TO: 1990 > 1992
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

600
1990 > 1992
REAR
1

MODEL: NTV 600 REVERE - HAWK
FROM > TO: 1990 > 1992
CC: 600
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

600
2002 > 2007
FRONT
1

MODEL: Silver Wing (FSC600)
FROM > TO: 2002 > 2007
CC: 600
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

600
2002 > 2007
REAR
FDB570
1

MODEL: Silver Wing (FSC600)
FROM > TO: 2002 > 2007
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2003 > 2008
FRONT
1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 > 2008
CC: 600
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

600
2003 > 2008
REAR
FDB570
1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 > 2008
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2001 > 2002
FRONT
1

MODEL: Silver Wing 600 (FJS600)
FROM > TO: 2001 > 2002
CC: 600
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

600
2001 > 2002
REAR
FDB570
1

MODEL: Silver Wing 600 (FJS600)
FROM > TO: 2001 > 2002
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2003 > 2008
FRONT
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 > 2008
CC: 600
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

600
2003 > 2008
REAR
FDB570
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 > 2008
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2009 > 2010
FRONT
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2009 > 2010
CC: 600
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

600
2009 > 2010
REAR
FDB570
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2009 > 2010
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2003 > 2008
FRONT
1

MODEL: Silver Wing GT ABS (FJS600A)
FROM > TO: 2003 > 2008
CC: 600
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

600
2003 > 2017
REAR
FDB570
1

MODEL: Silver Wing GT ABS (FJS600A)
FROM > TO: 2003 > 2017
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
2009 > 2017
FRONT
1

MODEL: Silver Wing GT ABS (FJS600A)
FROM > TO: 2009 > 2017
CC: 600
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

600
2009 > 2017
FRONT
1

MODEL: Silver Wing GT600 ABS (FSC600A)
FROM > TO: 2009 > 2017
CC: 600
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

600
2009 > 2017
REAR
FDB570
1

MODEL: Silver Wing GT600 ABS (FSC600A)
FROM > TO: 2009 > 2017
CC: 600
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

600
1994 > 2003
FRONT
FDB570
1

MODEL: VT 600 C SHADOW
FROM > TO: 1994 > 2003
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

600
1994 > 1996
FRONT
FDB570
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1994 > 1996
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

600
1994 > 1996
REAR
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1994 > 1996
CC: 600
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

600
1997 > 1999
FRONT
2

MODEL: XL 600 V TRANSALP
FROM > TO: 1997 > 1999
CC: 600
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

600
1997 > 1999
REAR
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1997 > 1999
CC: 600
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

650
64
2014 >
FRONT
FDB570
2

MODEL: CB 650 F (RC74)
FROM > TO: 2014 >
CC: 650
KW: 64
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

650
64
2014 >
REAR
1

MODEL: CB 650 F (RC74)
FROM > TO: 2014 >
CC: 650
KW: 64
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

650
1988 > 1990
FRONT
FDB570
2

MODEL: NT 650 HAWK GT
FROM > TO: 1988 > 1990
CC: 650
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

650
1988 > 1990
REAR
1

MODEL: NT 650 HAWK GT
FROM > TO: 1988 > 1990
CC: 650
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

650
1994 > 1997
FRONT
FDB570
2

MODEL: NTV 650
FROM > TO: 1994 > 1997
CC: 650
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

650
1994 > 1997
REAR
1

MODEL: NTV 650
FROM > TO: 1994 > 1997
CC: 650
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

650
1988 > 1993
FRONT
FDB570
1

MODEL: NTV 650 REVERE
FROM > TO: 1988 > 1993
CC: 650
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

650
1988 > 1993
REAR
1

MODEL: NTV 650 REVERE
FROM > TO: 1988 > 1993
CC: 650
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

680
45
2009 >
FRONT
2

MODEL: DN-01 NSA 700 A (RC55)
FROM > TO: 2009 >
CC: 680
KW: 45
FRONT / REAR: front
CODE: FDB2196
NUM SET: 2

680
45
2009 >
REAR
FDB570
1

MODEL: DN-01 NSA 700 A (RC55)
FROM > TO: 2009 >
CC: 680
KW: 45
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

700
1988 >
FRONT
FDB570
2

MODEL: VFR 700 F INTERCEPTOR
FROM > TO: 1988 >
CC: 700
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

700
1988 >
REAR
FDB570
1

MODEL: VFR 700 F INTERCEPTOR
FROM > TO: 1988 >
CC: 700
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

745
40
2014 > 2015
FRONT
FDB570
1

MODEL: NC 750 D Integra (RC71)
FROM > TO: 2014 > 2015
CC: 745
KW: 40
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

745
40
2014 > 2015
REAR
1

MODEL: NC 750 D Integra (RC71)
FROM > TO: 2014 > 2015
CC: 745
KW: 40
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

745
40
2016 >
FRONT
FDB570
1

MODEL: NC 750 D Integra (RC89)
FROM > TO: 2016 >
CC: 745
KW: 40
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

745
40
2016 >
REAR
1

MODEL: NC 750 D Integra (RC89)
FROM > TO: 2016 >
CC: 745
KW: 40
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

747
20
1992 > 2002
FRONT
FDB570
2

MODEL: CB Seven Fifty (RC42)
FROM > TO: 1992 > 2002
CC: 747
KW: 20
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

747
20
1992 > 2002
REAR
1

MODEL: CB Seven Fifty (RC42)
FROM > TO: 1992 > 2002
CC: 747
KW: 20
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

750
1988 >
FRONT
FDB570
2

MODEL: CBR 750 F
FROM > TO: 1988 >
CC: 750
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

750
1988 >
REAR
FDB570
1

MODEL: CBR 750 F
FROM > TO: 1988 >
CC: 750
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

750
1993 >
FRONT
FDB570
1

MODEL: MAGNA 750
FROM > TO: 1993 >
CC: 750
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

750
2015 >
FRONT
FDB570
1

MODEL: NM4 Vultus
FROM > TO: 2015 >
CC: 750
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

750
2015 >
REAR
1

MODEL: NM4 Vultus
FROM > TO: 2015 >
CC: 750
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

750
1993 >
FRONT
FDB570
2

MODEL: VF 750 C
FROM > TO: 1993 >
CC: 750
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

750
1990 > 1993
FRONT
FDB570
2

MODEL: VFR 750 F
FROM > TO: 1990 > 1993
CC: 750
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

750
1990 > 1993
REAR
1

MODEL: VFR 750 F
FROM > TO: 1990 > 1993
CC: 750
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

750
1994 > 1997
FRONT
FDB570
2

MODEL: VFR 750 F
FROM > TO: 1994 > 1997
CC: 750
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

750
1994 > 1997
REAR
1

MODEL: VFR 750 F
FROM > TO: 1994 > 1997
CC: 750
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

800
1989 > 1997
FRONT
FDB570
2

MODEL: PC 800 PACIFIC COAST
FROM > TO: 1989 > 1997
CC: 800
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

800
78
2014 > 2017
FRONT
2

MODEL: VFR 800 F (RC79A)
FROM > TO: 2014 > 2017
CC: 800
KW: 78
FRONT / REAR: front
CODE: FDB2181
NUM SET: 2
SYSTEM: Tokico

800
78
2014 > 2017
REAR
FDB570
1

MODEL: VFR 800 F (RC79A)
FROM > TO: 2014 > 2017
CC: 800
KW: 78
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

800
78
2018 >
FRONT
2

MODEL: VFR 800 F (RC79A)
FROM > TO: 2018 >
CC: 800
KW: 78
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

800
78
2017 > 2017
FRONT
2

MODEL: VFR 800 F (RC93A)
FROM > TO: 2017 > 2017
CC: 800
KW: 78
FRONT / REAR: front
CODE: FDB2181
NUM SET: 2
SYSTEM: Tokico

800
78
2017 > 2017
REAR
FDB570
1

MODEL: VFR 800 F (RC93A)
FROM > TO: 2017 > 2017
CC: 800
KW: 78
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

800
78
2018 >
FRONT
2

MODEL: VFR 800 F (RC93A)
FROM > TO: 2018 >
CC: 800
KW: 78
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

950
1992 >
FRONT
FDB570
2

MODEL: VFR 950 F CARAT
FROM > TO: 1992 >
CC: 950
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

950
1992 >
REAR
1

MODEL: VFR 950 F CARAT
FROM > TO: 1992 >
CC: 950
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

998
107
2018 >
FRONT
2

MODEL: CB 1000 R plus
FROM > TO: 2018 >
CC: 998
KW: 107
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

998
107
2018 >
REAR
FDB570
1

MODEL: CB 1000 R plus
FROM > TO: 2018 >
CC: 998
KW: 107
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

998
72
2006 > 2011
FRONT
FDB570
2

MODEL: CBF 1000 (SC58)
FROM > TO: 2006 > 2011
CC: 998
KW: 72
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

998
72
2006 > 2011
REAR
1

MODEL: CBF 1000 (SC58)
FROM > TO: 2006 > 2011
CC: 998
KW: 72
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1000
1992 >
FRONT
FDB570
2

MODEL: CB 1000 SUPERFOUR (BIG FOUR)
FROM > TO: 1992 >
CC: 1000
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

MODEL: CB 1000 SUPERFOUR (BIG FOUR)
FROM > TO: 1992 >
CC: 1000
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

1000
107
2018 >
FRONT
2

MODEL: CB 1000 R
FROM > TO: 2018 >
CC: 1000
KW: 107
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

1000
107
2018 >
REAR
FDB570
1

MODEL: CB 1000 R
FROM > TO: 2018 >
CC: 1000
KW: 107
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

1000
1989 > 1992
FRONT
FDB570
2

MODEL: CBR 1000 F
FROM > TO: 1989 > 1992
CC: 1000
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1000
1989 > 1992
REAR
FDB570
1

MODEL: CBR 1000 F
FROM > TO: 1989 > 1992
CC: 1000
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1100
1995 >
FRONT
FDB570
1

MODEL: 1100 AMERICAN CLASSIC EDITION
FROM > TO: 1995 >
CC: 1100
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL: 1100 AMERICAN CLASSIC EDITION
FROM > TO: 1995 >
CC: 1100
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1100
1990 > 2000
FRONT
FDB570
2

MODEL: ST 1100 PAN EUROPEAN
FROM > TO: 1990 > 2000
CC: 1100
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1100
1990 > 2000
REAR
FDB570
1

MODEL: ST 1100 PAN EUROPEAN
FROM > TO: 1990 > 2000
CC: 1100
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1100
1992 > 1995
FRONT
FDB570
2

MODEL: ST 1100 PAN EUROPEAN ABS/TCS
FROM > TO: 1992 > 1995
CC: 1100
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1100
1992 > 1995
REAR
FDB570
1

MODEL: ST 1100 PAN EUROPEAN ABS/TCS
FROM > TO: 1992 > 1995
CC: 1100
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1100
1994 >
FRONT
FDB570
1

MODEL: VT 1100 C SHADOW
FROM > TO: 1994 >
CC: 1100
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1100
1995 >
FRONT
FDB570
2

MODEL: VT 1100 C2 SHADOW
FROM > TO: 1995 >
CC: 1100
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1100
1995 >
REAR
1

MODEL: VT 1100 C2 SHADOW
FROM > TO: 1995 >
CC: 1100
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1300
2003 >
FRONT
FDB570
1

MODEL: VTX 1300 S / C
FROM > TO: 2003 >
CC: 1300
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1300
2003 >
REAR
1

MODEL: VTX 1300 S / C
FROM > TO: 2003 >
CC: 1300
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1500
72
1997 > 1999
FRONT
FDB570
2

MODEL: GL 1500 C Valkyrie F6C
FROM > TO: 1997 > 1999
CC: 1500
KW: 72
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1500
72
1997 > 1999
REAR
FDB570
1

MODEL: GL 1500 C Valkyrie F6C
FROM > TO: 1997 > 1999
CC: 1500
KW: 72
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
1999 >
FRONT
FDB570
1

MODEL: V2 125
FROM > TO: 1999 >
CC: 125
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
10
2016 >
FRONT
FDB570
1

MODEL: J125 (C6)
FROM > TO: 2016 >
CC: 125
KW: 10
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KAWASAKI

125
10
2016 >
REAR
1

MODEL: J125 (C6)
FROM > TO: 2016 >
CC: 125
KW: 10
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KAWASAKI

296
29
2017 >
FRONT
FDB570
1

MODEL: Versys-X 300
FROM > TO: 2017 >
CC: 296
KW: 29
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

296
29
2017 >
REAR
1

MODEL: Versys-X 300
FROM > TO: 2017 >
CC: 296
KW: 29
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

299
20
2014 >
FRONT
FDB570
1

MODEL: J300
FROM > TO: 2014 >
CC: 299
KW: 20
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KAWASAKI

299
20
2014 >
REAR
1

MODEL: J300
FROM > TO: 2014 >
CC: 299
KW: 20
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KAWASAKI

649
2017 >
FRONT
FDB570
2

MODEL: Ninja 650 (EX650J-K)
FROM > TO: 2017 >
CC: 649
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

649
2017 >
REAR
1

MODEL: Ninja 650 (EX650J-K)
FROM > TO: 2017 >
CC: 649
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

649
2015 >
FRONT
FDB570
2

MODEL: Versys 650 No ABS (LE650E)
FROM > TO: 2015 >
CC: 649
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

MODEL: Versys 650 No ABS (LE650E)
FROM > TO: 2015 >
CC: 649
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

MODEL: Versys 650 No ABS (LE650E)
FROM > TO: 2015 >
CC: 649
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

649
2015 >
FRONT
FDB570
2

MODEL: Versys 650 ABS (LE650E)
FROM > TO: 2015 >
CC: 649
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

649
2015 >
REAR
1

MODEL: Versys 650 ABS (LE650E)
FROM > TO: 2015 >
CC: 649
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

MODEL: Versys 650 ABS (LE650E)
FROM > TO: 2015 >
CC: 649
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

649
2017 >
FRONT
FDB570
2

MODEL: Z 650 (ER650G-H)
FROM > TO: 2017 >
CC: 649
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

649
2017 >
REAR
1

MODEL: Z 650 (ER650G-H)
FROM > TO: 2017 >
CC: 649
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

650
2022 >
FRONT
FDB570
2

MODEL: Z650 RS
FROM > TO: 2022 >
CC: 650
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

650
2022 >
REAR
1

MODEL: Z650 RS
FROM > TO: 2022 >
CC: 650
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

748
2007 >
FRONT
FDB570
2

MODEL: Z 750 No Abs
FROM > TO: 2007 >
CC: 748
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

748
2007 >
REAR
1

MODEL: Z 750 No Abs
FROM > TO: 2007 >
CC: 748
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

748
2007 >
FRONT
FDB570
2

MODEL: Z 750 S (ZR750K)
FROM > TO: 2007 >
CC: 748
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

748
2007 >
REAR
1

MODEL: Z 750 S (ZR750K)
FROM > TO: 2007 >
CC: 748
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

806
70
2013 >
FRONT
FDB570
2

MODEL: Z 800 e (ZR800C)
FROM > TO: 2013 >
CC: 806
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

806
70
2013 >
REAR
1

MODEL: Z 800 e (ZR800C)
FROM > TO: 2013 >
CC: 806
KW: 70
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
8.5
2022 >
FRONT
FDB570
1

MODEL: DINK X 125
FROM > TO: 2022 >
CC: 125
KW: 8.5
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
11
2009 > 2011
FRONT
FDB570
1

MODEL: Downtown 125 i (V2)
FROM > TO: 2009 > 2011
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
11
2009 > 2011
REAR
1

MODEL: Downtown 125 i (V2)
FROM > TO: 2009 > 2011
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

125
11
2011 > 2014
FRONT
FDB570
1

MODEL: Downtown 125 i ABS (V2)
FROM > TO: 2011 > 2014
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

125
11
2011 > 2014
REAR
1

MODEL: Downtown 125 i ABS (V2)
FROM > TO: 2011 > 2014
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KYMCO

125
9
2012 >
FRONT
FDB570
1

MODEL: Grand Dink 125i
FROM > TO: 2012 >
CC: 125
KW: 9
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

125
9
2012 >
REAR
1

MODEL: Grand Dink 125i
FROM > TO: 2012 >
CC: 125
KW: 9
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1
SYSTEM: KYMCO

125
2009 > 2011
FRONT
FDB570
1

MODEL: Super Dink 125i
FROM > TO: 2009 > 2011
CC: 125
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
2009 > 2011
REAR
1

MODEL: Super Dink 125i
FROM > TO: 2009 > 2011
CC: 125
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

125
2011 > 2014
FRONT
FDB570
1

MODEL: Super Dink 125i
FROM > TO: 2011 > 2014
CC: 125
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

125
2011 > 2014
REAR
1

MODEL: Super Dink 125i
FROM > TO: 2011 > 2014
CC: 125
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KYMCO

205
8
2010 >
FRONT
FDB570
1

MODEL: Downtown 200i
FROM > TO: 2010 >
CC: 205
KW: 8
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

205
8
2010 >
REAR
1

MODEL: Downtown 200i
FROM > TO: 2010 >
CC: 205
KW: 8
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

251
16
2005 > 2006
FRONT
FDB570
1

MODEL: Xciting 250 i (T7)
FROM > TO: 2005 > 2006
CC: 251
KW: 16
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

251
16
2005 > 2006
REAR
1

MODEL: Xciting 250 i (T7)
FROM > TO: 2005 > 2006
CC: 251
KW: 16
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

251
16
2006 > 2008
FRONT
FDB570
2

MODEL: Xciting 250 i (T7)
FROM > TO: 2006 > 2008
CC: 251
KW: 16
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

251
16
2006 > 2008
REAR
1

MODEL: Xciting 250 i (T7)
FROM > TO: 2006 > 2008
CC: 251
KW: 16
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

251
15
2005 > 2006
FRONT
FDB570
1

MODEL: Xciting 250 (T7)
FROM > TO: 2005 > 2006
CC: 251
KW: 15
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

251
15
2005 > 2006
REAR
1

MODEL: Xciting 250 (T7)
FROM > TO: 2005 > 2006
CC: 251
KW: 15
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

251
15
2006 > 2008
FRONT
FDB570
2

MODEL: Xciting 250 (T7)
FROM > TO: 2006 > 2008
CC: 251
KW: 15
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

251
15
2006 > 2008
REAR
1

MODEL: Xciting 250 (T7)
FROM > TO: 2006 > 2008
CC: 251
KW: 15
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

270
17
2008 >
FRONT
FDB570
2

MODEL: Xciting 300i R (T7)
FROM > TO: 2008 >
CC: 270
KW: 17
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

270
17
2008 >
REAR
1

MODEL: Xciting 300i R (T7)
FROM > TO: 2008 >
CC: 270
KW: 17
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

300
22
2009 > 2014
FRONT
FDB570
1

MODEL: Downtown 300i (V2)
FROM > TO: 2009 > 2014
CC: 300
KW: 22
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

300
22
2009 > 2014
REAR
1

MODEL: Downtown 300i (V2)
FROM > TO: 2009 > 2014
CC: 300
KW: 22
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

300
22
2011 >
FRONT
FDB570
1

MODEL: Downtown 300i ABS (V2)
FROM > TO: 2011 >
CC: 300
KW: 22
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

300
22
2011 >
REAR
1

MODEL: Downtown 300i ABS (V2)
FROM > TO: 2011 >
CC: 300
KW: 22
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

300
16
2012 >
FRONT
FDB570
1

MODEL: Grand Dink 300i G-Dink (V5)
FROM > TO: 2012 >
CC: 300
KW: 16
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL: Grand Dink 300i G-Dink (V5)
FROM > TO: 2012 >
CC: 300
KW: 16
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

300
16
2017 > 2017
FRONT
FDB570
1

MODEL: Grand Dink 300i G-Dink ABS (W2)
FROM > TO: 2017 > 2017
CC: 300
KW: 16
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

300
16
2017 > 2017
REAR
1

MODEL: Grand Dink 300i G-Dink ABS (W2)
FROM > TO: 2017 > 2017
CC: 300
KW: 16
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1
SYSTEM: KYMCO

498
28
2007 >
FRONT
FDB570
2

MODEL: Xciting 500 i (T7)
FROM > TO: 2007 >
CC: 498
KW: 28
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

498
28
2007 >
REAR
1

MODEL: Xciting 500 i (T7)
FROM > TO: 2007 >
CC: 498
KW: 28
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

498
28
2009 >
FRONT
FDB570
2

MODEL: Xciting 500i ABS (T7)
FROM > TO: 2009 >
CC: 498
KW: 28
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

498
28
2009 >
REAR
1

MODEL: Xciting 500i ABS (T7)
FROM > TO: 2009 >
CC: 498
KW: 28
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

500
2005 >
FRONT
FDB570
2

MODEL: XCITING 500 (T70000)
FROM > TO: 2005 >
CC: 500
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

500
2005 >
REAR
1

MODEL: XCITING 500 (T70000)
FROM > TO: 2005 >
CC: 500
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

500
2006 > 2008
FRONT
FDB570
2

MODEL: XCITING 500 i (T20020)
FROM > TO: 2006 > 2008
CC: 500
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

500
2006 > 2008
REAR
1

MODEL: XCITING 500 i (T20020)
FROM > TO: 2006 > 2008
CC: 500
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

500
2012 >
FRONT
FDB570
2

MODEL: XCITING 500 i EVO ABS
FROM > TO: 2012 >
CC: 500
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

500
2012 >
REAR
1

MODEL: XCITING 500 i EVO ABS
FROM > TO: 2012 >
CC: 500
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

700
2009 >
FRONT
FDB570
2

MODEL: MYROAD 700
FROM > TO: 2009 >
CC: 700
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

700
2009 >
REAR
1

MODEL: MYROAD 700
FROM > TO: 2009 >
CC: 700
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
936
2008 >
FRONT
2

MODEL: Bellagio Aquila Nera
FROM > TO: 2008 >
CC: 936
FRONT / REAR: front
CODE: FDB2006
NUM SET: 2

936
2008 >
REAR
FDB570
1

MODEL: Bellagio Aquila Nera
FROM > TO: 2008 >
CC: 936
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1200
2010 >
FRONT
2

MODEL: V12 X / Strada
FROM > TO: 2010 >
CC: 1200
FRONT / REAR: front
CODE: FDB2260
NUM SET: 2
SYSTEM: BRE Evo M50 4-Piston

1200
2010 >
REAR
FDB570
1

MODEL: V12 X / Strada
FROM > TO: 2010 >
CC: 1200
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
2004 > 2005
FRONT
FDB570
1

MODEL: SATELIS 125
FROM > TO: 2004 > 2005
CC: 125
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
2004 > 2005
REAR
1

MODEL: SATELIS 125
FROM > TO: 2004 > 2005
CC: 125
FRONT / REAR: rear
CODE: FDB2128
NUM SET: 1

125
2013 >
FRONT
1

MODEL: SATELIS 125
FROM > TO: 2013 >
CC: 125
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1

125
2013 >
REAR
1

MODEL: SATELIS 125
FROM > TO: 2013 >
CC: 125
FRONT / REAR: rear
CODE: FDB2057
NUM SET: 1

399
24
2008 > 2013
FRONT
FDB570
2

MODEL: Satelis 400 Premium (J2)
FROM > TO: 2008 > 2013
CC: 399
KW: 24
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

399
24
2008 > 2013
REAR
1

MODEL: Satelis 400 Premium (J2)
FROM > TO: 2008 > 2013
CC: 399
KW: 24
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

400
2008 > 2013
FRONT
FDB570
2

MODEL: Satelis 400 RS (Nissin Calipers)
FROM > TO: 2008 > 2013
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

MODEL: Satelis 400 RS (Nissin Calipers)
FROM > TO: 2008 > 2013
CC: 400
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

400
2008 > 2012
FRONT
FDB570
2

MODEL: Satelis 400 Urban (Nissin Calipers)
FROM > TO: 2008 > 2012
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

MODEL: Satelis 400 Urban (Nissin Calipers)
FROM > TO: 2008 > 2012
CC: 400
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

493
27
2008 > 2011
FRONT
FDB570
2

MODEL: Geopolis 500 (N2AFAA)
FROM > TO: 2008 > 2011
CC: 493
KW: 27
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

493
27
2008 > 2011
REAR
1

MODEL: Geopolis 500 (N2AFAA)
FROM > TO: 2008 > 2011
CC: 493
KW: 27
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

493
28
2007 > 2012
FRONT
FDB570
2

MODEL: Satelis 500 Premium (J2)
FROM > TO: 2007 > 2012
CC: 493
KW: 28
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

493
28
2007 > 2012
REAR
1

MODEL: Satelis 500 Premium (J2)
FROM > TO: 2007 > 2012
CC: 493
KW: 28
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

493
28
2008 > 2012
FRONT
FDB570
2

MODEL: Satelis 500 RS Premium (J2)
FROM > TO: 2008 > 2012
CC: 493
KW: 28
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

493
28
2008 > 2012
REAR
1

MODEL: Satelis 500 RS Premium (J2)
FROM > TO: 2008 > 2012
CC: 493
KW: 28
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

600
2004 > 2005
FRONT
FDB570
1

MODEL: SATELIS 600
FROM > TO: 2004 > 2005
CC: 600
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

600
2004 > 2005
REAR
1

MODEL: SATELIS 600
FROM > TO: 2004 > 2005
CC: 600
FRONT / REAR: rear
CODE: FDB2128
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
248
18
2017 >
FRONT
FDB570
1

MODEL: GSX 250 R (WDN0)
FROM > TO: 2017 >
CC: 248
KW: 18
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

248
18
2017 >
REAR
1

MODEL: GSX 250 R (WDN0)
FROM > TO: 2017 >
CC: 248
KW: 18
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

248
19
2015 >
FRONT
FDB570
1

MODEL: Inazuma 250
FROM > TO: 2015 >
CC: 248
KW: 19
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

248
19
2015 >
REAR
1

MODEL: Inazuma 250
FROM > TO: 2015 >
CC: 248
KW: 19
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

248
18
2013 >
FRONT
FDB570
1

MODEL: Inazuma 250 (GW250)
FROM > TO: 2013 >
CC: 248
KW: 18
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

248
18
2013 >
REAR
1

MODEL: Inazuma 250 (GW250)
FROM > TO: 2013 >
CC: 248
KW: 18
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

248
18
2017 >
FRONT
FDB570
1

MODEL: DL 250 V-Strom (WDS0)
FROM > TO: 2017 >
CC: 248
KW: 18
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

248
18
2017 >
REAR
1

MODEL: DL 250 V-Strom (WDS0)
FROM > TO: 2017 >
CC: 248
KW: 18
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

250
2015 >
FRONT
FDB570
1

MODEL: Inazuma 250Z
FROM > TO: 2015 >
CC: 250
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

250
2015 >
REAR
1

MODEL: Inazuma 250Z
FROM > TO: 2015 >
CC: 250
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

398
37
1995 > 1997
FRONT
FDB570
2

MODEL: GSF 400 Bandit (GK75B)
FROM > TO: 1995 > 1997
CC: 398
KW: 37
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

398
37
1995 > 1997
REAR
1

MODEL: GSF 400 Bandit (GK75B)
FROM > TO: 1995 > 1997
CC: 398
KW: 37
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

400
1994 > 1996
FRONT
FDB570
2

MODEL: GSX 400 IMPULSE
FROM > TO: 1994 > 1996
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

400
1994 > 1996
REAR
1

MODEL: GSX 400 IMPULSE
FROM > TO: 1994 > 1996
CC: 400
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

400
1993 >
FRONT
FDB570
1

MODEL: RF 400 RVC
FROM > TO: 1993 >
CC: 400
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

400
1993 >
REAR
1

MODEL: RF 400 RVC
FROM > TO: 1993 >
CC: 400
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

599
1995 > 1999
FRONT
FDB570
2

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 1995 > 1999
CC: 599
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

599
1995 > 1999
REAR
1

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 1995 > 1999
CC: 599
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

599
2000 >
FRONT
1
left

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC: 599
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

599
2000 >
FRONT
1
right

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC: 599
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

599
2000 >
REAR
1

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC: 599
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

599
1993 > 1997
FRONT
FDB570
2

MODEL: RF 600 R (GN76B)
FROM > TO: 1993 > 1997
CC: 599
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

599
1993 > 1997
REAR
1

MODEL: RF 600 R (GN76B)
FROM > TO: 1993 > 1997
CC: 599
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

599
1994 > 1995
FRONT
FDB570
2

MODEL: GSX-R 600
FROM > TO: 1994 > 1995
CC: 599
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

599
1994 > 1995
REAR
1

MODEL: GSX-R 600
FROM > TO: 1994 > 1995
CC: 599
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

638
41
2004 >
FRONT
FDB570
2

MODEL: AN 650 Burgman Executive (WVBU)
FROM > TO: 2004 >
CC: 638
KW: 41
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

MODEL: AN 650 Burgman Executive (WVBU)
FROM > TO: 2004 >
CC: 638
KW: 41
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1
SYSTEM: Nissin

638
41
2003 >
FRONT
FDB570
2

MODEL: AN 650 Burgman (WVBU)
FROM > TO: 2003 >
CC: 638
KW: 41
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

638
41
2003 >
REAR
1

MODEL: AN 650 Burgman (WVBU)
FROM > TO: 2003 >
CC: 638
KW: 41
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1
SYSTEM: Nissin

1462
58
2013 >
FRONT
FDB570
1

MODEL: C90 Boulevard
FROM > TO: 2013 >
CC: 1462
KW: 58
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

1462
58
2013 >
REAR
1

MODEL: C90 Boulevard
FROM > TO: 2013 >
CC: 1462
KW: 58
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1
SYSTEM: Tokico

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
445
22
2015 >
FRONT
FDB570
1

MODEL: Gran Milano (A3)
FROM > TO: 2015 >
CC: 445
KW: 22
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

445
22
2015 >
FRONT
FDB570
1

MODEL: Silver Vase 440 (A3)
FROM > TO: 2015 >
CC: 445
KW: 22
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
2010 > 2010
FRONT
FDB570
1

MODEL: Cevalo B9A (125cc -4T)
FROM > TO: 2010 > 2010
CC: 125
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
660
2022 >
FRONT
FDB570
2

MODEL: Tiger 660 Sport
FROM > TO: 2022 >
CC: 660
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

660
2022 >
REAR
1

MODEL: Tiger 660 Sport
FROM > TO: 2022 >
CC: 660
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

675
79
2007 > 2012
FRONT
FDB570
2

MODEL: Street Triple
FROM > TO: 2007 > 2012
CC: 675
KW: 79
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

675
79
2007 > 2012
REAR
1

MODEL: Street Triple
FROM > TO: 2007 > 2012
CC: 675
KW: 79
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

675
79
2013 >
FRONT
FDB570
2

MODEL: Street Triple
FROM > TO: 2013 >
CC: 675
KW: 79
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

675
79
2013 >
REAR
1

MODEL: Street Triple
FROM > TO: 2013 >
CC: 675
KW: 79
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1
SYSTEM: BRE

765
83
2017 >
FRONT
FDB570
2

MODEL: Street Triple S (HD01)
FROM > TO: 2017 >
CC: 765
KW: 83
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

765
83
2017 >
REAR
1

MODEL: Street Triple S (HD01)
FROM > TO: 2017 >
CC: 765
KW: 83
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1
SYSTEM: Brembo

790
45
2001 >
FRONT
FDB570
1

MODEL: Bonneville 800 (908MD)
FROM > TO: 2001 >
CC: 790
KW: 45
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

790
45
2001 >
REAR
1

MODEL: Bonneville 800 (908MD)
FROM > TO: 2001 >
CC: 790
KW: 45
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

799
70
2011 > 2014
FRONT
FDB570
2

MODEL: Tiger 800
FROM > TO: 2011 > 2014
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

799
70
2011 > 2014
REAR
1

MODEL: Tiger 800
FROM > TO: 2011 > 2014
CC: 799
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

799
70
2011 > 2014
FRONT
FDB570
2

MODEL: Tiger 800 XC (A08)
FROM > TO: 2011 > 2014
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

799
70
2011 > 2014
REAR
1

MODEL: Tiger 800 XC (A08)
FROM > TO: 2011 > 2014
CC: 799
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

799
70
2015 > 2017
FRONT
FDB570
2

MODEL: Tiger 800 XC (A082)
FROM > TO: 2015 > 2017
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

799
70
2015 > 2017
REAR
1

MODEL: Tiger 800 XC (A082)
FROM > TO: 2015 > 2017
CC: 799
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

799
70
2015 >
REAR
1

MODEL: Tiger 800 XCA (A082)
FROM > TO: 2015 >
CC: 799
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

799
70
2015 > 2017
FRONT
FDB570
1

MODEL: Tiger 800 XCA (A082)
FROM > TO: 2015 > 2017
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

799
70
2018 >
FRONT
2

MODEL: Tiger 800 XCA (A082)
FROM > TO: 2018 >
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB2018
NUM SET: 2
SYSTEM: Brembo

799
70
2015 >
REAR
1

MODEL: Tiger 800 XCX (A082)
FROM > TO: 2015 >
CC: 799
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

799
70
2015 > 2017
FRONT
FDB570
2

MODEL: Tiger 800 XCX (A082)
FROM > TO: 2015 > 2017
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

799
70
2018 >
FRONT
2

MODEL: Tiger 800 XCX (A082)
FROM > TO: 2018 >
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB2018
NUM SET: 2
SYSTEM: Brembo

799
70
2015 > 2017
FRONT
FDB570
2

MODEL: Tiger 800 XR (A082)
FROM > TO: 2015 > 2017
CC: 799
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

799
70
2015 > 2017
REAR
1

MODEL: Tiger 800 XR (A082)
FROM > TO: 2015 > 2017
CC: 799
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

799
2015 > 2017
FRONT
FDB570
2

MODEL: Tiger 800 XRX (A082)
FROM > TO: 2015 > 2017
CC: 799
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

799
2015 > 2017
REAR
1

MODEL: Tiger 800 XRX (A082)
FROM > TO: 2015 > 2017
CC: 799
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

800
70
2017 >
REAR
1

MODEL: Tiger 800 XRT (C201)
FROM > TO: 2017 >
CC: 800
KW: 70
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

800
70
2017 > 2017
FRONT
FDB570
2

MODEL: Tiger 800 XRT (C201)
FROM > TO: 2017 > 2017
CC: 800
KW: 70
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

800
70
2018 >
FRONT
2

MODEL: Tiger 800 XRT (C201)
FROM > TO: 2018 >
CC: 800
KW: 70
FRONT / REAR: front
CODE: FDB2018
NUM SET: 2
SYSTEM: Brembo

865
2004 >
FRONT
FDB570
2

MODEL: Speedmaster (908ML)
FROM > TO: 2004 >
CC: 865
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

865
2004 >
REAR
1

MODEL: Speedmaster (908ML)
FROM > TO: 2004 >
CC: 865
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

865
2010 >
FRONT
1

MODEL: Speedmaster (908ML)
FROM > TO: 2010 >
CC: 865
FRONT / REAR: front
CODE: FDB664
NUM SET: 1
SYSTEM: NISSIN

865
2010 >
REAR
1

MODEL: Speedmaster (908ML)
FROM > TO: 2010 >
CC: 865
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

865
45
2014 >
FRONT
FDB570
1

MODEL: America LT
FROM > TO: 2014 >
CC: 865
KW: 45
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

865
45
2014 >
REAR
1

MODEL: America LT
FROM > TO: 2014 >
CC: 865
KW: 45
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

865
51
2004 > 2007
FRONT
FDB570
1

MODEL: Thruxton 900
FROM > TO: 2004 > 2007
CC: 865
KW: 51
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

865
51
2004 > 2007
REAR
1

MODEL: Thruxton 900
FROM > TO: 2004 > 2007
CC: 865
KW: 51
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

865
51
2008 >
FRONT
1

MODEL: Thruxton 900
FROM > TO: 2008 >
CC: 865
KW: 51
FRONT / REAR: front
CODE: FDB664
NUM SET: 1

865
51
2008 >
FRONT
2

MODEL: Thruxton 900
FROM > TO: 2008 >
CC: 865
KW: 51
FRONT / REAR: front
CODE: FDB2042
NUM SET: 2
SYSTEM: BRE (4-PISTON RADIAL CALIPER)

865
51
2008 >
REAR
1

MODEL: Thruxton 900
FROM > TO: 2008 >
CC: 865
KW: 51
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

865
51
2015 >
FRONT
1

MODEL: Thruxton 900
FROM > TO: 2015 >
CC: 865
KW: 51
FRONT / REAR: front
CODE: FDB664
NUM SET: 1
SYSTEM: NISSIN

865
51
2015 >
REAR
1

MODEL: Thruxton 900
FROM > TO: 2015 >
CC: 865
KW: 51
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

885
1995 >
FRONT
FDB570
2

MODEL: THUNDERBIRD 900 / SPORT
FROM > TO: 1995 >
CC: 885
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

885
1995 >
REAR
FDB570
1

MODEL: THUNDERBIRD 900 / SPORT
FROM > TO: 1995 >
CC: 885
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

900
1996 > 2001
FRONT
FDB570
1

MODEL: ADVENTURER 900
FROM > TO: 1996 > 2001
CC: 900
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

900
1996 > 2001
REAR
FDB570
1

MODEL: ADVENTURER 900
FROM > TO: 1996 > 2001
CC: 900
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

900
1999 > 2001
FRONT
FDB570
1

MODEL: LEGEND 900 TT
FROM > TO: 1999 > 2001
CC: 900
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

900
1999 > 2001
REAR
FDB570
1

MODEL: LEGEND 900 TT
FROM > TO: 1999 > 2001
CC: 900
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

955
2001 > 2006
FRONT
FDB570
2

MODEL: TIGER 955
FROM > TO: 2001 > 2006
CC: 955
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

955
2001 > 2006
REAR
1

MODEL: TIGER 955
FROM > TO: 2001 > 2006
CC: 955
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
125
11
2009 > 2013
FRONT
FDB570
1

MODEL: WR 125 R (DE071)
FROM > TO: 2009 > 2013
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
11
2009 > 2013
REAR
1

MODEL: WR 125 R (DE071)
FROM > TO: 2009 > 2013
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

125
11
2009 >
FRONT
FDB570
1

MODEL: WR 125 X (DE07)
FROM > TO: 2009 >
CC: 125
KW: 11
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

125
11
2009 >
REAR
1

MODEL: WR 125 X (DE07)
FROM > TO: 2009 >
CC: 125
KW: 11
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

250
23
2008 > 2010
FRONT
FDB570
1

MODEL: WR 250 X
FROM > TO: 2008 > 2010
CC: 250
KW: 23
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

250
23
2008 > 2010
REAR
1

MODEL: WR 250 X
FROM > TO: 2008 > 2010
CC: 250
KW: 23
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

1670
66
2005 > 2006
FRONT
2

MODEL: MT-01
FROM > TO: 2005 > 2006
CC: 1670
KW: 66
FRONT / REAR: front
CODE: FDB605
NUM SET: 2

1670
66
2005 > 2006
REAR
FDB570
1

MODEL: MT-01
FROM > TO: 2005 > 2006
CC: 1670
KW: 66
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1670
66
2007 >
FRONT
2

MODEL: MT-01
FROM > TO: 2007 >
CC: 1670
KW: 66
FRONT / REAR: front
CODE: FDB2217
NUM SET: 2

1670
66
2007 >
REAR
FDB570
1

MODEL: MT-01
FROM > TO: 2007 >
CC: 1670
KW: 66
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1670
66
2005 > 2006
FRONT
2

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2005 > 2006
CC: 1670
KW: 66
FRONT / REAR: front
CODE: FDB605
NUM SET: 2

1670
66
2005 > 2006
REAR
FDB570
1

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2005 > 2006
CC: 1670
KW: 66
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1670
66
2007 >
FRONT
2

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2007 >
CC: 1670
KW: 66
FRONT / REAR: front
CODE: FDB2217
NUM SET: 2

1670
66
2007 >
REAR
FDB570
1

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2007 >
CC: 1670
KW: 66
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
