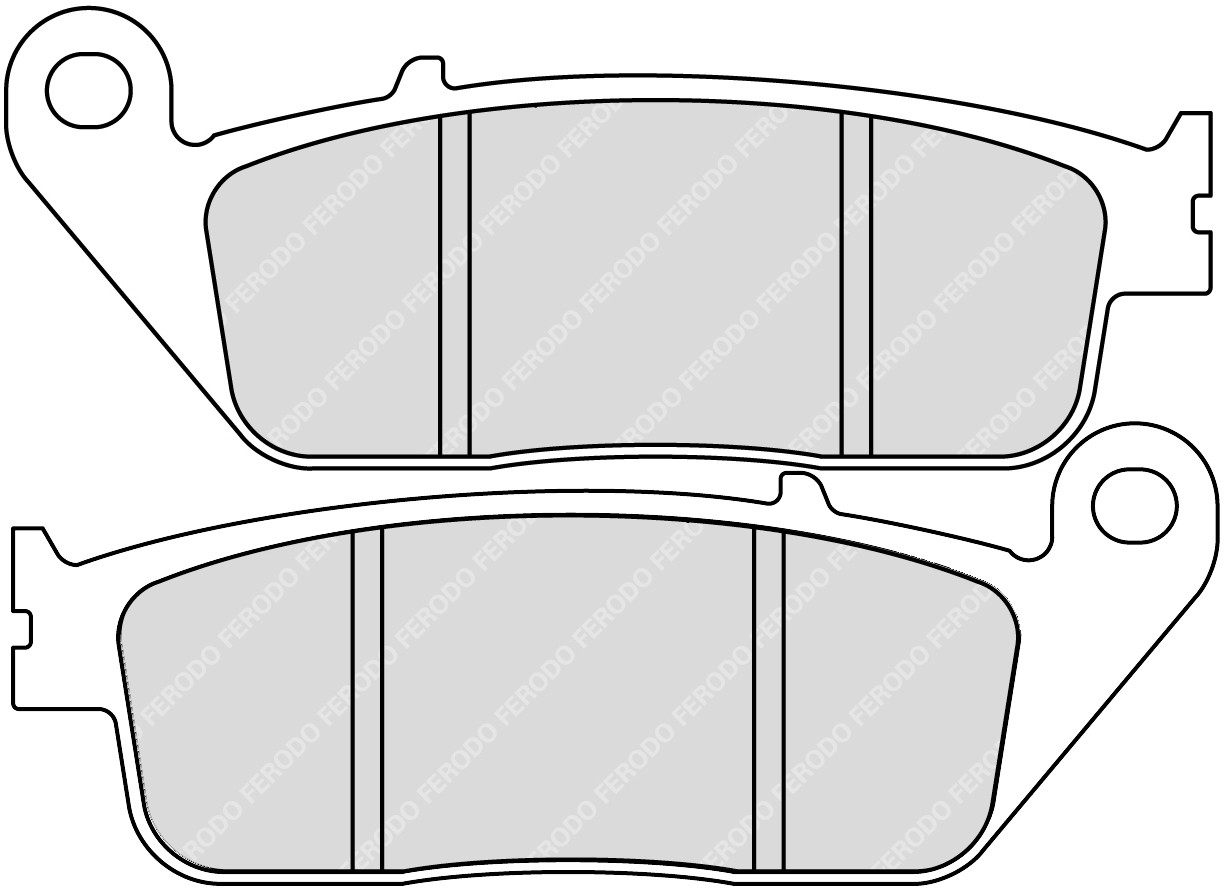

FDB570SM

SM: Sintered/Road/Maxiscooter


Status: Available

102mm = 4.016"
39mm = 1.535"
8.3mm = 0.327"
MATERIAL

SM

Maxi scooter

DISCOVER MORE
SINTERED compound
Main Use: ROAD
Certification: TUV/KBA, ECE R-90
Recommended for: all CC maxi-scooters
FAMILY SHAPE

FDB570

DISCOVER
SHAPE
THICKNESS mm
NOTES
10.3
10.5
With Pin
9.8
BRAKING
716
BREMBO
07098
BREMBO
07HO30
BREMBO
7074
BREMBO
7075
BREMBO
7098
BRENTA
4059
BRENTA
3059
CL BRAKES
2256
CL BRAKES
3065
CL BRAKES
3003
COBREQ
N-930
EBC
FA142
EBC
FA226
FRAS-LE
PD/870
GALFER
FD266
GOLD FREN
022
LUCAS/TRW
MCB598
LUCAS/TRW
MCB845
LUCAS/TRW
MCB764
NEWFREN
FD0325
NEWFREN
FD0132
SBS
627
SBS
184
SBS
183
VESRAH
VD-156
OEM Honda
45106 ML7 922
OEM Honda
06455 MAA 405
OEM Honda
45105 MR4 901
OEM Honda
45105 ML7 922
OEM Honda
45105 ML7 405
OEM Honda
06455-MV4-405
OEM Honda
06455 MZ0 760
OEM Honda
45105 MW3 671
OEM Honda
06455 MW3 405
OEM Honda
06455 MV4 405
OEM Honda
06455 MAA 415
OEM Honda
06455 MAH 405
OEM Honda
06455 MAL G01
OEM Honda
06455 MAL G02
OEM Honda
06455 MBK 751
OEM Honda
06455 MBK 752
OEM Honda
06455 MCK A01
OEM Honda
06455 MCK A02
OEM Honda
06455 MW3 415
OEM Honda
06455 MEA 671
OEM Honda
06455 MS9 405
OEM Honda
06455 MR4 415
OEM Honda
06455 MR4 405
OEM Honda
06455 MKP DQ1
OEM Honda
06455 MEA 672
OEM Kawasaki
43082 0079
OEM Kawasaki
43082 0150
OEM Suzuki
59300 21840
OEM Suzuki
59300 21850
OEM Suzuki
59300 21820
OEM Triumph
T2020537
OEM Yamaha
3D7 W0045 10
OEM Yamaha
5YU W0046 00
OEM Yamaha
1S6 W0045 00

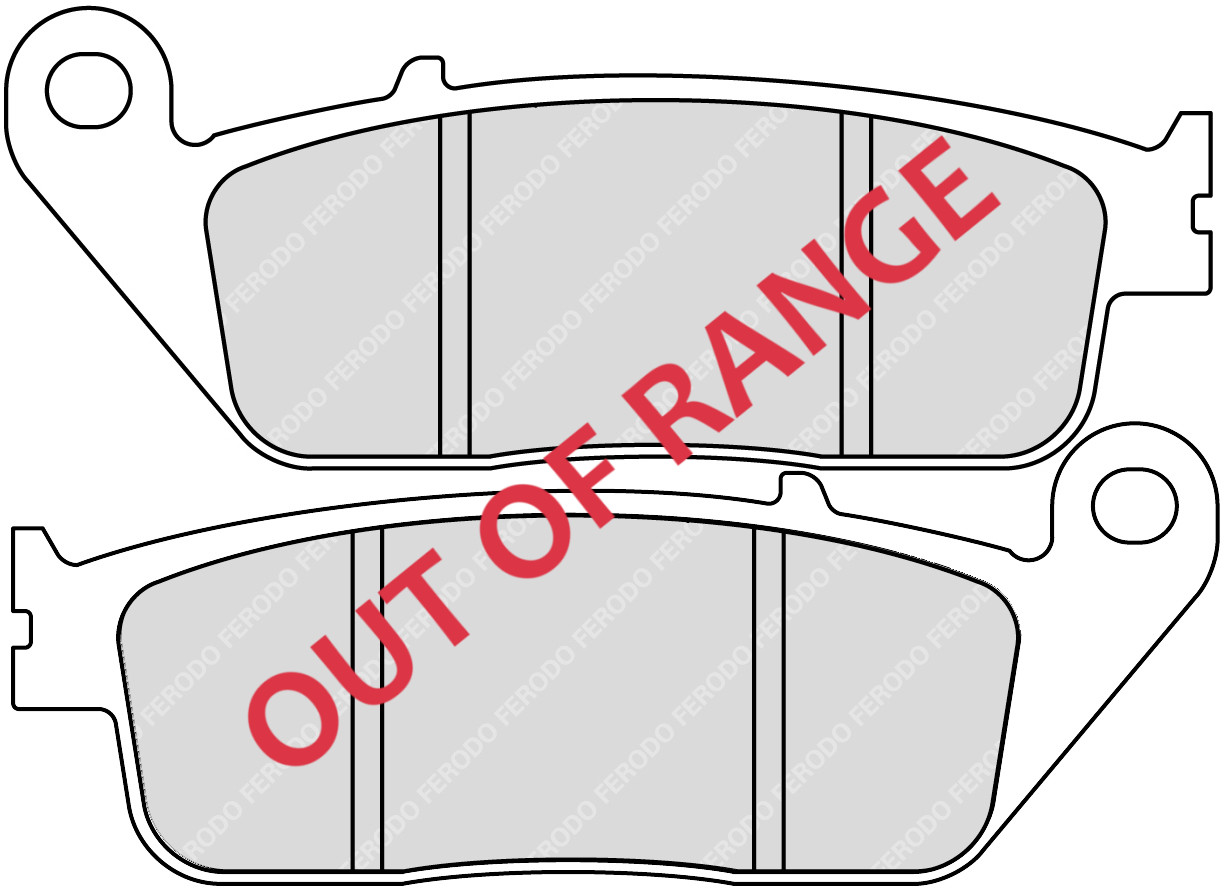

FDB570 OTHER MATERIALS

5 PART(S) FOUND
FRONT / REAR
FDB570ST
ST: Sintered/Road

FRONT / REAR
FDB570P
P: Mid-metallic/Road

FRONT / REAR
FDB570EF
EF: Mid-metallic/Road

FRONT / REAR
FDB570XRAC
XRAC: Ceramic/Racing

FRONT / REAR
FDB570CPRO
CPRO: Ceramic/Racing

FDB570 APPLICATION

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2014 >
FRONT
FDB570
2
NISSIN

MODEL: C evolution
FROM > TO: 2014 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2014 >
REAR
FDB570
1
NISSIN

MODEL: C evolution
FROM > TO: 2014 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

2015 >
FRONT
FDB570
2

MODEL: C 600 GT Special Edition
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2015 >
REAR
FDB570
1

MODEL: C 600 GT Special Edition
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2013 >
FRONT
FDB570
2

MODEL: C 600 SPORT Highline
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2013 >
REAR
FDB570
1

MODEL: C 600 SPORT Highline
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2015 >
FRONT
FDB570
2

MODEL: C 600 SPORT Special Edition
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2015 >
REAR
FDB570
1

MODEL: C 600 SPORT Special Edition
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2012 >
FRONT
FDB570
2

MODEL: C 600 Sport (C65)
FROM > TO: 2012 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2012 >
REAR
FDB570
1

MODEL: C 600 Sport (C65)
FROM > TO: 2012 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2012 >
FRONT
FDB570
2
Nissin

MODEL: C 650 GT (C65)
FROM > TO: 2012 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2012 >
REAR
FDB570
1
Nissin

MODEL: C 650 GT (C65)
FROM > TO: 2012 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2015 >
FRONT
FDB570
2
NISSIN

MODEL: C 650 Sport (3C65)
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2015 >
REAR
FDB570
1
NISSIN

MODEL: C 650 Sport (3C65)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

2020 >
FRONT
FDB570
2
NISSIN

MODEL: C 650 Evo
FROM > TO: 2020 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2020 >
REAR
FDB570
1
NISSIN

MODEL: C 650 Evo
FROM > TO: 2020 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

2013 >
FRONT
FDB570
2

MODEL: C 650 GT Highline
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2013 >
REAR
FDB570
1

MODEL: C 650 GT Highline
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
1993 >
FRONT
FDB570
2

MODEL: 900 CAT
FROM > TO: 1993 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1993 >
REAR
FDB664
1

MODEL: 900 CAT
FROM > TO: 1993 >
CC:
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

1999 >
FRONT
FDB570
2

MODEL: Gran Canyon
FROM > TO: 1999 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1999 >
REAR
FDB631
1

MODEL: Gran Canyon
FROM > TO: 1999 >
CC:
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

2000 > 2005
FRONT
FDB570
2

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 > 2005
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2000 > 2005
REAR
FDB631
1

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 > 2005
CC:
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2017 >
FRONT
FDB570
1

MODEL: NSS 125 FORZA (JF69)
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2017 >
REAR
FDB2212
1

MODEL: NSS 125 FORZA (JF69)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1

2015 >
FRONT
FDB570
1
Nissin

MODEL: NSS 125 Forza (JF60)
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2015 >
REAR
FDB2212
1
Nissin

MODEL: NSS 125 Forza (JF60)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1
SYSTEM: Nissin

1991 > 1994
FRONT
FDB570
2

MODEL: RS 125 R
FROM > TO: 1991 > 1994
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1991 > 1994
REAR
FDB2192
1

MODEL: RS 125 R
FROM > TO: 1991 > 1994
CC:
FRONT / REAR: rear
CODE: FDB2192
NUM SET: 1

1995 > 2010
FRONT
FDB858
2

MODEL: RS 125 R
FROM > TO: 1995 > 2010
CC:
FRONT / REAR: front
CODE: FDB858
NUM SET: 2

1995 > 2010
REAR
FDB250
1

MODEL: RS 125 R
FROM > TO: 1995 > 2010
CC:
FRONT / REAR: rear
CODE: FDB250
NUM SET: 1

1993 > 2005
FRONT
FDB570
1

MODEL: CB 250 Two-Fifty (MC26)
FROM > TO: 1993 > 2005
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2011 >
FRONT
FDB570
1

MODEL: CBR 250 R (MC41)
FROM > TO: 2011 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2011 >
REAR
FDB2258
1

MODEL: CBR 250 R (MC41)
FROM > TO: 2011 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1

1991 > 2001
FRONT
FDB570
1

MODEL: CB 250 NIGHT HAWK
FROM > TO: 1991 > 2001
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1993 > 2005
FRONT
FDB570
1

MODEL: CB 250 TWO FIFTY
FROM > TO: 1993 > 2005
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1995 >
FRONT
FDB570
1

MODEL: CBX 250 F
FROM > TO: 1995 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1991 >
FRONT
FDB570
2

MODEL: CB 250 JADE
FROM > TO: 1991 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1991 >
REAR
FDB531
1

MODEL: CB 250 JADE
FROM > TO: 1991 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1994 >
FRONT
FDB570
2

MODEL: VT 250 CR MAGNA
FROM > TO: 1994 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1988 >
FRONT
FDB570
1

MODEL: VT 250 SPADA
FROM > TO: 1988 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1988 >
REAR
FDB531
1

MODEL: VT 250 SPADA
FROM > TO: 1988 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1992 >
FRONT
FDB570
1

MODEL: VTZ 250 XELVIS
FROM > TO: 1992 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1992 >
REAR
FDB606
1

MODEL: VTZ 250 XELVIS
FROM > TO: 1992 >
CC:
FRONT / REAR: rear
CODE: FDB606
NUM SET: 1

2019 >
FRONT
FDB570
1
Nissin

MODEL: NSS 300 Forza
FROM > TO: 2019 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2019 >
REAR
FDB2212
1
Nissin

MODEL: NSS 300 Forza
FROM > TO: 2019 >
CC:
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1
SYSTEM: Nissin

2022 >
FRONT
FDB570
1
Nissin

MODEL: ADV 350
FROM > TO: 2022 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2022 >
REAR
FDB2212
1
Nissin

MODEL: ADV 350
FROM > TO: 2022 >
CC:
FRONT / REAR: rear
CODE: FDB2212
NUM SET: 1
SYSTEM: Nissin

2003 > 2008
FRONT
FDB2073
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2003 > 2008
REAR
FDB570
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2009 > 2017
FRONT
FDB2196
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2009 > 2017
REAR
FDB570
1

MODEL: FJS 400 Silver Wing
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2003 > 2008
FRONT
FDB2073
1

MODEL: FJS 400 SW-T
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2003 > 2008
REAR
FDB570
1

MODEL: FJS 400 SW-T
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2009 > 2017
FRONT
FDB2196
1

MODEL: FJS 400 SW-T
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2009 > 2017
REAR
FDB570
1

MODEL: FJS 400 SW-T
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1992 >
FRONT
FDB570
2

MODEL: CB 400 Super Four (NC31)
FROM > TO: 1992 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1992 >
REAR
FDB531
1

MODEL: CB 400 Super Four (NC31)
FROM > TO: 1992 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1990 > 1994
FRONT
FDB570
2

MODEL: CBR 400 RR (NC29)
FROM > TO: 1990 > 1994
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1990 > 1994
REAR
FDB531
1

MODEL: CBR 400 RR (NC29)
FROM > TO: 1990 > 1994
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2009 >
FRONT
FDB2196
1

MODEL: SW-T 400 (NF03)
FROM > TO: 2009 >
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2009 >
REAR
FDB570
1

MODEL: SW-T 400 (NF03)
FROM > TO: 2009 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1990 >
FRONT
FDB570
2

MODEL: CB 400 FK (CB-1)
FROM > TO: 1990 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1990 >
REAR
FDB531
1

MODEL: CB 400 FK (CB-1)
FROM > TO: 1990 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1989 >
FRONT
FDB570
1

MODEL: CB-1 400 F
FROM > TO: 1989 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1989 >
REAR
FDB531
1

MODEL: CB-1 400 F
FROM > TO: 1989 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1987 > 1989
FRONT
FDB570
2

MODEL: CBR 400 RRJ/RRK (NC23) Tri-Arm (102/109)
FROM > TO: 1987 > 1989
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

MODEL: CBR 400 RRJ/RRK (NC23) Tri-Arm (102/109)
FROM > TO: 1987 > 1989
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2002 >
FRONT
FDB2073
1

MODEL: Silver Wing 400 (FJS400)
FROM > TO: 2002 >
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2002 >
REAR
FDB570
1

MODEL: Silver Wing 400 (FJS400)
FROM > TO: 2002 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2003 > 2008
FRONT
FDB2073
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2003 > 2008
REAR
FDB570
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2009 > 2017
FRONT
FDB2196
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2009 > 2017
REAR
FDB570
1

MODEL: Silver Wing GT400 (FJS400D)
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2006 >
FRONT
FDB2073
1

MODEL: SILVERWING 400
FROM > TO: 2006 >
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2006 >
REAR
FDB570
1

MODEL: SILVERWING 400
FROM > TO: 2006 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2000 >
FRONT
FDB570
1

MODEL: XR 400 SUPERMOTARD
FROM > TO: 2000 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2000 >
REAR
FDB539
1

MODEL: XR 400 SUPERMOTARD
FROM > TO: 2000 >
CC:
FRONT / REAR: rear
CODE: FDB539
NUM SET: 1

2019 >
FRONT
FDB570
1
Nissin

MODEL: CMX 500 Rebel (PC56)
FROM > TO: 2019 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2019 >
REAR
FDB531
1
Nissin

MODEL: CMX 500 Rebel (PC56)
FROM > TO: 2019 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

2020 >
FRONT
FDB570
1
NISSIN

MODEL: CMX 500 Rebel S
FROM > TO: 2020 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

2020 >
REAR
FDB531
1
NISSIN

MODEL: CMX 500 Rebel S
FROM > TO: 2020 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2013 >
FRONT
FDB570
1
Nissin

MODEL: CB 500 F (PC45)
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2013 >
REAR
FDB531
1
Nissin

MODEL: CB 500 F (PC45)
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

2017 > 2018
FRONT
FDB570
1
Nissin

MODEL: CB 500 F (PC58)
FROM > TO: 2017 > 2018
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2017 > 2018
REAR
FDB531
1
Nissin

MODEL: CB 500 F (PC58)
FROM > TO: 2017 > 2018
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

1994 > 1996
FRONT
FDB570
1

MODEL: CB 500 (PC26)
FROM > TO: 1994 > 1996
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2013 >
FRONT
FDB570
1
Nissin

MODEL: CB 500 X (PC46)
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2013 >
REAR
FDB531
1

MODEL: CB 500 X (PC46)
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2016 > 2016
FRONT
FDB570
1
Nissin

MODEL: CBR 500 R (PC44B)
FROM > TO: 2016 > 2016
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2001 > 2008
FRONT
FDB2073
1

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2001 > 2008
REAR
FDB250
1
Hand Brake

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 > 2008
CC:
FRONT / REAR: rear
CODE: FDB250
NUM SET: 1
SYSTEM: Hand Brake

2001 > 2008
REAR
FDB570
1
Rear Brake

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Rear Brake

2001 > 2008
FRONT
FDB2073
1

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2001 > 2008
REAR
FDB250
1
Hand Brake

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 > 2008
CC:
FRONT / REAR: rear
CODE: FDB250
NUM SET: 1
SYSTEM: Hand Brake

2001 > 2008
REAR
FDB570
1
Rear Brake

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Rear Brake

2011 >
FRONT
FDB2196
1

MODEL: SW-T 600
FROM > TO: 2011 >
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2011 >
REAR
FDB570
1

MODEL: SW-T 600
FROM > TO: 2011 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1998 > 1999
FRONT
FDB570
2

MODEL: CB 600 F Hornet
FROM > TO: 1998 > 1999
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1998 > 1999
REAR
FDB754
1

MODEL: CB 600 F Hornet
FROM > TO: 1998 > 1999
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2000 > 2006
FRONT
FDB570
2

MODEL: CB 600 F Hornet
FROM > TO: 2000 > 2006
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2000 > 2006
REAR
FDB754
1

MODEL: CB 600 F Hornet
FROM > TO: 2000 > 2006
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2007 >
FRONT
FDB570
2

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2007 >
FRONT
FDB2196
2

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 2

2007 >
REAR
FDB754
1

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2007 >
REAR
FDB2221
1

MODEL: CB 600 F Hornet (PC41)
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB2221
NUM SET: 1

2000 > 2004
FRONT
FDB570
2

MODEL: CB 600 F Hornet S (PC34)
FROM > TO: 2000 > 2004
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2000 > 2004
REAR
FDB754
1

MODEL: CB 600 F Hornet S (PC34)
FROM > TO: 2000 > 2004
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2004 >
FRONT
FDB570
2

MODEL: CBF 600 (PC38)
FROM > TO: 2004 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2004 >
REAR
FDB754
1

MODEL: CBF 600 (PC38)
FROM > TO: 2004 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1990 > 1992
FRONT
FDB570
1

MODEL: NTV 600 REVERE - HAWK
FROM > TO: 1990 > 1992
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1990 > 1992
REAR
FDB531
1

MODEL: NTV 600 REVERE - HAWK
FROM > TO: 1990 > 1992
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2002 > 2007
FRONT
FDB2073
1

MODEL: Silver Wing (FSC600)
FROM > TO: 2002 > 2007
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2002 > 2007
REAR
FDB570
1

MODEL: Silver Wing (FSC600)
FROM > TO: 2002 > 2007
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2003 > 2008
FRONT
FDB2073
1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2003 > 2008
REAR
FDB570
1

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2001 > 2002
FRONT
FDB2073
1

MODEL: Silver Wing 600 (FJS600)
FROM > TO: 2001 > 2002
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2001 > 2002
REAR
FDB570
1

MODEL: Silver Wing 600 (FJS600)
FROM > TO: 2001 > 2002
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2003 > 2008
FRONT
FDB2073
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2003 > 2008
REAR
FDB570
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2009 > 2010
FRONT
FDB2196
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2009 > 2010
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2009 > 2010
REAR
FDB570
1

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2009 > 2010
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2003 > 2008
FRONT
FDB2073
1

MODEL: Silver Wing GT ABS (FJS600A)
FROM > TO: 2003 > 2008
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2003 > 2017
REAR
FDB570
1

MODEL: Silver Wing GT ABS (FJS600A)
FROM > TO: 2003 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2009 > 2017
FRONT
FDB2196
1

MODEL: Silver Wing GT ABS (FJS600A)
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 1

2009 > 2017
FRONT
FDB2073
1

MODEL: Silver Wing GT600 ABS (FSC600A)
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: front
CODE: FDB2073
NUM SET: 1

2009 > 2017
REAR
FDB570
1

MODEL: Silver Wing GT600 ABS (FSC600A)
FROM > TO: 2009 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1994 > 2003
FRONT
FDB570
1

MODEL: VT 600 C SHADOW
FROM > TO: 1994 > 2003
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1994 > 1996
FRONT
FDB570
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1994 > 1996
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1994 > 1996
REAR
FDB531
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1994 > 1996
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1997 > 1999
FRONT
FDB892
2

MODEL: XL 600 V TRANSALP
FROM > TO: 1997 > 1999
CC:
FRONT / REAR: front
CODE: FDB892
NUM SET: 2

1997 > 1999
REAR
FDB531
1

MODEL: XL 600 V TRANSALP
FROM > TO: 1997 > 1999
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2014 >
FRONT
FDB570
2
Nissin

MODEL: CB 650 F (RC74)
FROM > TO: 2014 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2014 >
REAR
FDB2258
1
Nissin

MODEL: CB 650 F (RC74)
FROM > TO: 2014 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

1988 > 1990
FRONT
FDB570
2

MODEL: NT 650 HAWK GT
FROM > TO: 1988 > 1990
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1988 > 1990
REAR
FDB531
1

MODEL: NT 650 HAWK GT
FROM > TO: 1988 > 1990
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1994 > 1997
FRONT
FDB570
2

MODEL: NTV 650
FROM > TO: 1994 > 1997
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1994 > 1997
REAR
FDB531
1

MODEL: NTV 650
FROM > TO: 1994 > 1997
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

1988 > 1993
FRONT
FDB570
1

MODEL: NTV 650 REVERE
FROM > TO: 1988 > 1993
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1988 > 1993
REAR
FDB531
1

MODEL: NTV 650 REVERE
FROM > TO: 1988 > 1993
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2009 >
FRONT
FDB2196
2

MODEL: DN-01 NSA 700 A (RC55)
FROM > TO: 2009 >
CC:
FRONT / REAR: front
CODE: FDB2196
NUM SET: 2

2009 >
REAR
FDB570
1

MODEL: DN-01 NSA 700 A (RC55)
FROM > TO: 2009 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1988 >
FRONT
FDB570
2

MODEL: VFR 700 F INTERCEPTOR
FROM > TO: 1988 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1988 >
REAR
FDB570
1

MODEL: VFR 700 F INTERCEPTOR
FROM > TO: 1988 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2014 > 2015
FRONT
FDB570
1
Nissin

MODEL: NC 750 D Integra (RC71)
FROM > TO: 2014 > 2015
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2014 > 2015
REAR
FDB2258
1
Nissin

MODEL: NC 750 D Integra (RC71)
FROM > TO: 2014 > 2015
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2016 >
FRONT
FDB570
1
Nissin

MODEL: NC 750 D Integra (RC89)
FROM > TO: 2016 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2016 >
REAR
FDB2258
1
Nissin

MODEL: NC 750 D Integra (RC89)
FROM > TO: 2016 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

1992 > 2002
FRONT
FDB570
2

MODEL: CB Seven Fifty (RC42)
FROM > TO: 1992 > 2002
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1992 > 2002
REAR
FDB754
1

MODEL: CB Seven Fifty (RC42)
FROM > TO: 1992 > 2002
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1988 >
FRONT
FDB570
2

MODEL: CBR 750 F
FROM > TO: 1988 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1988 >
REAR
FDB570
1

MODEL: CBR 750 F
FROM > TO: 1988 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1993 >
FRONT
FDB570
1

MODEL: MAGNA 750
FROM > TO: 1993 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2015 >
FRONT
FDB570
1
Nissin

MODEL: NM4 Vultus
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2015 >
REAR
FDB2258
1
Nissin

MODEL: NM4 Vultus
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

1993 >
FRONT
FDB570
2

MODEL: VF 750 C
FROM > TO: 1993 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1990 > 1993
FRONT
FDB570
2

MODEL: VFR 750 F
FROM > TO: 1990 > 1993
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1990 > 1993
REAR
FDB664
1

MODEL: VFR 750 F
FROM > TO: 1990 > 1993
CC:
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

1994 > 1997
FRONT
FDB570
2

MODEL: VFR 750 F
FROM > TO: 1994 > 1997
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1994 > 1997
REAR
FDB664
1

MODEL: VFR 750 F
FROM > TO: 1994 > 1997
CC:
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

1989 > 1997
FRONT
FDB570
2

MODEL: PC 800 PACIFIC COAST
FROM > TO: 1989 > 1997
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2014 > 2017
FRONT
FDB2181
2
Tokico

MODEL: VFR 800 F (RC79A)
FROM > TO: 2014 > 2017
CC:
FRONT / REAR: front
CODE: FDB2181
NUM SET: 2
SYSTEM: Tokico

2014 > 2017
REAR
FDB570
1
Nissin

MODEL: VFR 800 F (RC79A)
FROM > TO: 2014 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2018 >
FRONT
FDB2300
2
Tokico

MODEL: VFR 800 F (RC79A)
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

2017 > 2017
FRONT
FDB2181
2
Tokico

MODEL: VFR 800 F (RC93A)
FROM > TO: 2017 > 2017
CC:
FRONT / REAR: front
CODE: FDB2181
NUM SET: 2
SYSTEM: Tokico

2017 > 2017
REAR
FDB570
1
Nissin

MODEL: VFR 800 F (RC93A)
FROM > TO: 2017 > 2017
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2018 >
FRONT
FDB2300
2
Tokico

MODEL: VFR 800 F (RC93A)
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

1992 >
FRONT
FDB570
2

MODEL: VFR 950 F CARAT
FROM > TO: 1992 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1992 >
REAR
FDB664
1

MODEL: VFR 950 F CARAT
FROM > TO: 1992 >
CC:
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

2018 >
FRONT
FDB2300
2
Tokico

MODEL: CB 1000 R plus
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

2018 >
REAR
FDB570
1
Nissin

MODEL: CB 1000 R plus
FROM > TO: 2018 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2006 > 2011
FRONT
FDB570
2

MODEL: CBF 1000 (SC58)
FROM > TO: 2006 > 2011
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2006 > 2011
REAR
FDB754
1

MODEL: CBF 1000 (SC58)
FROM > TO: 2006 > 2011
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1992 >
FRONT
FDB570
2

MODEL: CB 1000 SUPERFOUR (BIG FOUR)
FROM > TO: 1992 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1992 >
REAR
FDB664
1

MODEL: CB 1000 SUPERFOUR (BIG FOUR)
FROM > TO: 1992 >
CC:
FRONT / REAR: rear
CODE: FDB664
NUM SET: 1

2018 >
FRONT
FDB2300
2
Tokico

MODEL: CB 1000 R
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2300
NUM SET: 2
SYSTEM: Tokico

2018 >
REAR
FDB570
1
Nissin

MODEL: CB 1000 R
FROM > TO: 2018 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

1989 > 1992
FRONT
FDB570
2

MODEL: CBR 1000 F
FROM > TO: 1989 > 1992
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1989 > 1992
REAR
FDB570
1

MODEL: CBR 1000 F
FROM > TO: 1989 > 1992
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1995 >
FRONT
FDB570
1

MODEL: 1100 AMERICAN CLASSIC EDITION
FROM > TO: 1995 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1995 >
REAR
FDB754
1

MODEL: 1100 AMERICAN CLASSIC EDITION
FROM > TO: 1995 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1990 > 2000
FRONT
FDB570
2

MODEL: ST 1100 PAN EUROPEAN
FROM > TO: 1990 > 2000
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1990 > 2000
REAR
FDB570
1

MODEL: ST 1100 PAN EUROPEAN
FROM > TO: 1990 > 2000
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1992 > 1995
FRONT
FDB570
2

MODEL: ST 1100 PAN EUROPEAN ABS/TCS
FROM > TO: 1992 > 1995
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1992 > 1995
REAR
FDB570
1

MODEL: ST 1100 PAN EUROPEAN ABS/TCS
FROM > TO: 1992 > 1995
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1994 >
FRONT
FDB570
1

MODEL: VT 1100 C SHADOW
FROM > TO: 1994 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1995 >
FRONT
FDB570
2

MODEL: VT 1100 C2 SHADOW
FROM > TO: 1995 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1995 >
REAR
FDB754
1

MODEL: VT 1100 C2 SHADOW
FROM > TO: 1995 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2003 >
FRONT
FDB570
1

MODEL: VTX 1300 S / C
FROM > TO: 2003 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2003 >
REAR
FDB754
1

MODEL: VTX 1300 S / C
FROM > TO: 2003 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

1997 > 1999
FRONT
FDB570
2

MODEL: GL 1500 C Valkyrie F6C
FROM > TO: 1997 > 1999
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1997 > 1999
REAR
FDB570
1

MODEL: GL 1500 C Valkyrie F6C
FROM > TO: 1997 > 1999
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
1999 >
FRONT
FDB570
1

MODEL: V2 125
FROM > TO: 1999 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2016 >
FRONT
FDB570
1
KAWASAKI

MODEL: J125 (C6)
FROM > TO: 2016 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KAWASAKI

2016 >
REAR
FDB2248
1
KAWASAKI

MODEL: J125 (C6)
FROM > TO: 2016 >
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KAWASAKI

2017 >
FRONT
FDB570
1
Nissin

MODEL: Versys-X 300
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2017 >
REAR
FDB631
1

MODEL: Versys-X 300
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

2014 >
FRONT
FDB570
1
KAWASAKI

MODEL: J300
FROM > TO: 2014 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KAWASAKI

2014 >
REAR
FDB2248
1
KAWASAKI

MODEL: J300
FROM > TO: 2014 >
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KAWASAKI

2017 >
FRONT
FDB570
2
Nissin

MODEL: Ninja 650 (EX650J-K)
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2017 >
REAR
FDB754
1
Nissin

MODEL: Ninja 650 (EX650J-K)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

2015 >
FRONT
FDB570
2
Nissin

MODEL: Versys 650 No ABS (LE650E)
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2015 >
REAR
FDB754
1
Nissin

MODEL: Versys 650 No ABS (LE650E)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

2015 >
REAR
FDB2258
1
Nissin

MODEL: Versys 650 No ABS (LE650E)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2015 >
FRONT
FDB570
2
Nissin

MODEL: Versys 650 ABS (LE650E)
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2015 >
REAR
FDB754
1
Nissin

MODEL: Versys 650 ABS (LE650E)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1
SYSTEM: Nissin

2015 >
REAR
FDB2258
1
Nissin

MODEL: Versys 650 ABS (LE650E)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2017 >
FRONT
FDB570
2
Nissin

MODEL: Z 650 (ER650G-H)
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2017 >
REAR
FDB2258
1
Nissin

MODEL: Z 650 (ER650G-H)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2022 >
FRONT
FDB570
2
Nissin

MODEL: Z650 RS
FROM > TO: 2022 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2022 >
REAR
FDB2258
1
Nissin

MODEL: Z650 RS
FROM > TO: 2022 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2007 >
FRONT
FDB570
2

MODEL: Z 750 No Abs
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2007 >
REAR
FDB754
1

MODEL: Z 750 No Abs
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2007 >
FRONT
FDB570
2

MODEL: Z 750 S (ZR750K)
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2007 >
REAR
FDB754
1

MODEL: Z 750 S (ZR750K)
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB754
NUM SET: 1

2013 >
FRONT
FDB570
2

MODEL: Z 800 e (ZR800C)
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2013 >
REAR
FDB2258
1

MODEL: Z 800 e (ZR800C)
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2022 >
FRONT
FDB570
1

MODEL: DINK X 125
FROM > TO: 2022 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2009 > 2011
FRONT
FDB570
1

MODEL: Downtown 125 i (V2)
FROM > TO: 2009 > 2011
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2009 > 2011
REAR
FDB2248
1

MODEL: Downtown 125 i (V2)
FROM > TO: 2009 > 2011
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

2011 > 2014
FRONT
FDB570
1
KYMCO

MODEL: Downtown 125 i ABS (V2)
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

2011 > 2014
REAR
FDB2248
1
KYMCO

MODEL: Downtown 125 i ABS (V2)
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KYMCO

2012 >
FRONT
FDB570
1
KYMCO

MODEL: Grand Dink 125i
FROM > TO: 2012 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

2012 >
REAR
FDB2254
1
KYMCO

MODEL: Grand Dink 125i
FROM > TO: 2012 >
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1
SYSTEM: KYMCO

2009 > 2011
FRONT
FDB570
1

MODEL: Super Dink 125i
FROM > TO: 2009 > 2011
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2009 > 2011
REAR
FDB2248
1

MODEL: Super Dink 125i
FROM > TO: 2009 > 2011
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

2011 > 2014
FRONT
FDB570
1
KYMCO

MODEL: Super Dink 125i
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

2011 > 2014
REAR
FDB2248
1
KYMCO

MODEL: Super Dink 125i
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1
SYSTEM: KYMCO

2010 >
FRONT
FDB570
1

MODEL: Downtown 200i
FROM > TO: 2010 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2010 >
REAR
FDB2248
1

MODEL: Downtown 200i
FROM > TO: 2010 >
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

2005 > 2006
FRONT
FDB570
1

MODEL: Xciting 250 i (T7)
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2005 > 2006
REAR
FDB2254
1

MODEL: Xciting 250 i (T7)
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

2006 > 2008
FRONT
FDB570
2

MODEL: Xciting 250 i (T7)
FROM > TO: 2006 > 2008
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2006 > 2008
REAR
FDB2254
1

MODEL: Xciting 250 i (T7)
FROM > TO: 2006 > 2008
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

2005 > 2006
FRONT
FDB570
1

MODEL: Xciting 250 (T7)
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2005 > 2006
REAR
FDB2254
1

MODEL: Xciting 250 (T7)
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

2006 > 2008
FRONT
FDB570
2

MODEL: Xciting 250 (T7)
FROM > TO: 2006 > 2008
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2006 > 2008
REAR
FDB2254
1

MODEL: Xciting 250 (T7)
FROM > TO: 2006 > 2008
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

2008 >
FRONT
FDB570
2

MODEL: Xciting 300i R (T7)
FROM > TO: 2008 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2008 >
REAR
FDB2254
1

MODEL: Xciting 300i R (T7)
FROM > TO: 2008 >
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

2009 > 2014
FRONT
FDB570
1

MODEL: Downtown 300i (V2)
FROM > TO: 2009 > 2014
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2009 > 2014
REAR
FDB2248
1

MODEL: Downtown 300i (V2)
FROM > TO: 2009 > 2014
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

2011 >
FRONT
FDB570
1

MODEL: Downtown 300i ABS (V2)
FROM > TO: 2011 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2011 >
REAR
FDB2248
1

MODEL: Downtown 300i ABS (V2)
FROM > TO: 2011 >
CC:
FRONT / REAR: rear
CODE: FDB2248
NUM SET: 1

2012 >
FRONT
FDB570
1

MODEL: Grand Dink 300i G-Dink (V5)
FROM > TO: 2012 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2012 >
REAR
FDB2254
1

MODEL: Grand Dink 300i G-Dink (V5)
FROM > TO: 2012 >
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1

2017 > 2017
FRONT
FDB570
1
KYMCO

MODEL: Grand Dink 300i G-Dink ABS (W2)
FROM > TO: 2017 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: KYMCO

2017 > 2017
REAR
FDB2254
1
KYMCO

MODEL: Grand Dink 300i G-Dink ABS (W2)
FROM > TO: 2017 > 2017
CC:
FRONT / REAR: rear
CODE: FDB2254
NUM SET: 1
SYSTEM: KYMCO

2007 >
FRONT
FDB570
2

MODEL: Xciting 500 i (T7)
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2007 >
REAR
FDB2288
1

MODEL: Xciting 500 i (T7)
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

2009 >
FRONT
FDB570
2

MODEL: Xciting 500i ABS (T7)
FROM > TO: 2009 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2009 >
REAR
FDB2288
1

MODEL: Xciting 500i ABS (T7)
FROM > TO: 2009 >
CC:
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

2005 >
FRONT
FDB570
2

MODEL: XCITING 500 (T70000)
FROM > TO: 2005 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2005 >
REAR
FDB2288
1

MODEL: XCITING 500 (T70000)
FROM > TO: 2005 >
CC:
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

2006 > 2008
FRONT
FDB570
2

MODEL: XCITING 500 i (T20020)
FROM > TO: 2006 > 2008
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2006 > 2008
REAR
FDB2288
1

MODEL: XCITING 500 i (T20020)
FROM > TO: 2006 > 2008
CC:
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

2012 >
FRONT
FDB570
2

MODEL: XCITING 500 i EVO ABS
FROM > TO: 2012 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2012 >
REAR
FDB2288
1

MODEL: XCITING 500 i EVO ABS
FROM > TO: 2012 >
CC:
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

2009 >
FRONT
FDB570
2

MODEL: MYROAD 700
FROM > TO: 2009 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2009 >
REAR
FDB2288
1

MODEL: MYROAD 700
FROM > TO: 2009 >
CC:
FRONT / REAR: rear
CODE: FDB2288
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2008 >
FRONT
FDB2006
2

MODEL: Bellagio Aquila Nera
FROM > TO: 2008 >
CC:
FRONT / REAR: front
CODE: FDB2006
NUM SET: 2

2008 >
REAR
FDB570
1

MODEL: Bellagio Aquila Nera
FROM > TO: 2008 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2010 >
FRONT
FDB2260
2
BRE Evo M50 4-Piston

MODEL: V12 X / Strada
FROM > TO: 2010 >
CC:
FRONT / REAR: front
CODE: FDB2260
NUM SET: 2
SYSTEM: BRE Evo M50 4-Piston

2010 >
REAR
FDB570
1

MODEL: V12 X / Strada
FROM > TO: 2010 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2004 > 2005
FRONT
FDB570
1

MODEL: SATELIS 125
FROM > TO: 2004 > 2005
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2004 > 2005
REAR
FDB2128
1

MODEL: SATELIS 125
FROM > TO: 2004 > 2005
CC:
FRONT / REAR: rear
CODE: FDB2128
NUM SET: 1

2013 >
FRONT
FDB2256
1

MODEL: SATELIS 125
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB2256
NUM SET: 1

2013 >
REAR
FDB2057
1

MODEL: SATELIS 125
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB2057
NUM SET: 1

2008 > 2013
FRONT
FDB570
2

MODEL: Satelis 400 Premium (J2)
FROM > TO: 2008 > 2013
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2008 > 2013
REAR
FDB497
1

MODEL: Satelis 400 Premium (J2)
FROM > TO: 2008 > 2013
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2008 > 2013
FRONT
FDB570
2

MODEL: Satelis 400 RS (Nissin Calipers)
FROM > TO: 2008 > 2013
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2008 > 2013
REAR
FDB497
1

MODEL: Satelis 400 RS (Nissin Calipers)
FROM > TO: 2008 > 2013
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2008 > 2012
FRONT
FDB570
2

MODEL: Satelis 400 Urban (Nissin Calipers)
FROM > TO: 2008 > 2012
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2008 > 2012
REAR
FDB497
1

MODEL: Satelis 400 Urban (Nissin Calipers)
FROM > TO: 2008 > 2012
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2008 > 2011
FRONT
FDB570
2

MODEL: Geopolis 500 (N2AFAA)
FROM > TO: 2008 > 2011
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2008 > 2011
REAR
FDB497
1

MODEL: Geopolis 500 (N2AFAA)
FROM > TO: 2008 > 2011
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2007 > 2012
FRONT
FDB570
2

MODEL: Satelis 500 Premium (J2)
FROM > TO: 2007 > 2012
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2007 > 2012
REAR
FDB497
1

MODEL: Satelis 500 Premium (J2)
FROM > TO: 2007 > 2012
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2008 > 2012
FRONT
FDB570
2

MODEL: Satelis 500 RS Premium (J2)
FROM > TO: 2008 > 2012
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2008 > 2012
REAR
FDB497
1

MODEL: Satelis 500 RS Premium (J2)
FROM > TO: 2008 > 2012
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2004 > 2005
FRONT
FDB570
1

MODEL: SATELIS 600
FROM > TO: 2004 > 2005
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2004 > 2005
REAR
FDB2128
1

MODEL: SATELIS 600
FROM > TO: 2004 > 2005
CC:
FRONT / REAR: rear
CODE: FDB2128
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2017 >
FRONT
FDB570
1
Nissin

MODEL: GSX 250 R (WDN0)
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2017 >
REAR
FDB2258
1
Nissin

MODEL: GSX 250 R (WDN0)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2015 >
FRONT
FDB570
1
Nissin

MODEL: Inazuma 250
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2015 >
REAR
FDB2258
1
Nissin

MODEL: Inazuma 250
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2013 >
FRONT
FDB570
1
Nissin

MODEL: Inazuma 250 (GW250)
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2013 >
REAR
FDB2258
1
Nissin

MODEL: Inazuma 250 (GW250)
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2017 >
FRONT
FDB570
1
Nissin

MODEL: DL 250 V-Strom (WDS0)
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2017 >
REAR
FDB2258
1
Nissin

MODEL: DL 250 V-Strom (WDS0)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

2015 >
FRONT
FDB570
1
Nissin

MODEL: Inazuma 250Z
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2015 >
REAR
FDB2258
1
Nissin

MODEL: Inazuma 250Z
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB2258
NUM SET: 1
SYSTEM: Nissin

1995 > 1997
FRONT
FDB570
2

MODEL: GSF 400 Bandit (GK75B)
FROM > TO: 1995 > 1997
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1995 > 1997
REAR
FDB338
1

MODEL: GSF 400 Bandit (GK75B)
FROM > TO: 1995 > 1997
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

1994 > 1996
FRONT
FDB570
2

MODEL: GSX 400 IMPULSE
FROM > TO: 1994 > 1996
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1994 > 1996
REAR
FDB338
1

MODEL: GSX 400 IMPULSE
FROM > TO: 1994 > 1996
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

1993 >
FRONT
FDB570
1

MODEL: RF 400 RVC
FROM > TO: 1993 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1993 >
REAR
FDB338
1

MODEL: RF 400 RVC
FROM > TO: 1993 >
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

1995 > 1999
FRONT
FDB570
2

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 1995 > 1999
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1995 > 1999
REAR
FDB338
1

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 1995 > 1999
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

2000 >
FRONT
FDB2048
1
left

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC:
FRONT / REAR: front
CODE: FDB2048
NUM SET: 1
SIDE: left

2000 >
FRONT
FDB2049
1
right

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC:
FRONT / REAR: front
CODE: FDB2049
NUM SET: 1
SIDE: right

2000 >
REAR
FDB338
1

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 2000 >
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

1993 > 1997
FRONT
FDB570
2

MODEL: RF 600 R (GN76B)
FROM > TO: 1993 > 1997
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1993 > 1997
REAR
FDB338
1

MODEL: RF 600 R (GN76B)
FROM > TO: 1993 > 1997
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

1994 > 1995
FRONT
FDB570
2

MODEL: GSX-R 600
FROM > TO: 1994 > 1995
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1994 > 1995
REAR
FDB338
1

MODEL: GSX-R 600
FROM > TO: 1994 > 1995
CC:
FRONT / REAR: rear
CODE: FDB338
NUM SET: 1

2004 >
FRONT
FDB570
2
Nissin

MODEL: AN 650 Burgman Executive (WVBU)
FROM > TO: 2004 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2004 >
REAR
FDB2173
1
Nissin

MODEL: AN 650 Burgman Executive (WVBU)
FROM > TO: 2004 >
CC:
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1
SYSTEM: Nissin

2003 >
FRONT
FDB570
2
Nissin

MODEL: AN 650 Burgman (WVBU)
FROM > TO: 2003 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2003 >
REAR
FDB2173
1
Nissin

MODEL: AN 650 Burgman (WVBU)
FROM > TO: 2003 >
CC:
FRONT / REAR: rear
CODE: FDB2173
NUM SET: 1
SYSTEM: Nissin

2013 >
FRONT
FDB570
1
Nissin

MODEL: C90 Boulevard
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: Nissin

2013 >
REAR
FDB2049
1
Tokico

MODEL: C90 Boulevard
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB2049
NUM SET: 1
SYSTEM: Tokico

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2015 >
FRONT
FDB570
1

MODEL: Gran Milano (A3)
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2015 >
FRONT
FDB570
1

MODEL: Silver Vase 440 (A3)
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2010 > 2010
FRONT
FDB570
1

MODEL: Cevalo B9A (125cc -4T)
FROM > TO: 2010 > 2010
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2022 >
FRONT
FDB570
2
Nissin

MODEL: Tiger 660 Sport
FROM > TO: 2022 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2022 >
REAR
FDB531
1
Nissin

MODEL: Tiger 660 Sport
FROM > TO: 2022 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: Nissin

2007 > 2012
FRONT
FDB570
2
NISSIN

MODEL: Street Triple
FROM > TO: 2007 > 2012
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2007 > 2012
REAR
FDB531
1
NISSIN

MODEL: Street Triple
FROM > TO: 2007 > 2012
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2013 >
FRONT
FDB570
2
NISSIN

MODEL: Street Triple
FROM > TO: 2013 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2013 >
REAR
FDB2005
1
BRE

MODEL: Street Triple
FROM > TO: 2013 >
CC:
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1
SYSTEM: BRE

2017 >
FRONT
FDB570
2
Nissin

MODEL: Street Triple S (HD01)
FROM > TO: 2017 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: Nissin

2017 >
REAR
FDB2005
1
Brembo

MODEL: Street Triple S (HD01)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1
SYSTEM: Brembo

2001 >
FRONT
FDB570
1

MODEL: Bonneville 800 (908MD)
FROM > TO: 2001 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2001 >
REAR
FDB531
1

MODEL: Bonneville 800 (908MD)
FROM > TO: 2001 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1

2011 > 2014
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2011 > 2014
REAR
FDB531
1
NISSIN

MODEL: Tiger 800
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2011 > 2014
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800 XC (A08)
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2011 > 2014
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XC (A08)
FROM > TO: 2011 > 2014
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2015 > 2017
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800 XC (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2015 > 2017
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XC (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2015 >
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XCA (A082)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2015 > 2017
FRONT
FDB570
1
NISSIN

MODEL: Tiger 800 XCA (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1
SYSTEM: NISSIN

2018 >
FRONT
FDB2018
2
Brembo

MODEL: Tiger 800 XCA (A082)
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2018
NUM SET: 2
SYSTEM: Brembo

2015 >
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XCX (A082)
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2015 > 2017
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800 XCX (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2018 >
FRONT
FDB2018
2
Brembo

MODEL: Tiger 800 XCX (A082)
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2018
NUM SET: 2
SYSTEM: Brembo

2015 > 2017
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800 XR (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2015 > 2017
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XR (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2015 > 2017
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800 XRX (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2015 > 2017
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XRX (A082)
FROM > TO: 2015 > 2017
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2017 >
REAR
FDB531
1
NISSIN

MODEL: Tiger 800 XRT (C201)
FROM > TO: 2017 >
CC:
FRONT / REAR: rear
CODE: FDB531
NUM SET: 1
SYSTEM: NISSIN

2017 > 2017
FRONT
FDB570
2
NISSIN

MODEL: Tiger 800 XRT (C201)
FROM > TO: 2017 > 2017
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2
SYSTEM: NISSIN

2018 >
FRONT
FDB2018
2
Brembo

MODEL: Tiger 800 XRT (C201)
FROM > TO: 2018 >
CC:
FRONT / REAR: front
CODE: FDB2018
NUM SET: 2
SYSTEM: Brembo

2004 >
FRONT
FDB570
2

MODEL: Speedmaster (908ML)
FROM > TO: 2004 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2004 >
REAR
FDB497
1

MODEL: Speedmaster (908ML)
FROM > TO: 2004 >
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2010 >
FRONT
FDB664
1
NISSIN

MODEL: Speedmaster (908ML)
FROM > TO: 2010 >
CC:
FRONT / REAR: front
CODE: FDB664
NUM SET: 1
SYSTEM: NISSIN

2010 >
REAR
FDB497
1

MODEL: Speedmaster (908ML)
FROM > TO: 2010 >
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2014 >
FRONT
FDB570
1

MODEL: America LT
FROM > TO: 2014 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2014 >
REAR
FDB497
1

MODEL: America LT
FROM > TO: 2014 >
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2004 > 2007
FRONT
FDB570
1

MODEL: Thruxton 900
FROM > TO: 2004 > 2007
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2004 > 2007
REAR
FDB497
1

MODEL: Thruxton 900
FROM > TO: 2004 > 2007
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2008 >
FRONT
FDB664
1

MODEL: Thruxton 900
FROM > TO: 2008 >
CC:
FRONT / REAR: front
CODE: FDB664
NUM SET: 1

2008 >
FRONT
FDB2042
2
BRE (4-PISTON RADIAL CALIPER)

MODEL: Thruxton 900
FROM > TO: 2008 >
CC:
FRONT / REAR: front
CODE: FDB2042
NUM SET: 2
SYSTEM: BRE (4-PISTON RADIAL CALIPER)

2008 >
REAR
FDB497
1

MODEL: Thruxton 900
FROM > TO: 2008 >
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

2015 >
FRONT
FDB664
1
NISSIN

MODEL: Thruxton 900
FROM > TO: 2015 >
CC:
FRONT / REAR: front
CODE: FDB664
NUM SET: 1
SYSTEM: NISSIN

2015 >
REAR
FDB497
1

MODEL: Thruxton 900
FROM > TO: 2015 >
CC:
FRONT / REAR: rear
CODE: FDB497
NUM SET: 1

1995 >
FRONT
FDB570
2

MODEL: THUNDERBIRD 900 / SPORT
FROM > TO: 1995 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

1995 >
REAR
FDB570
1

MODEL: THUNDERBIRD 900 / SPORT
FROM > TO: 1995 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1996 > 2001
FRONT
FDB570
1

MODEL: ADVENTURER 900
FROM > TO: 1996 > 2001
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1996 > 2001
REAR
FDB570
1

MODEL: ADVENTURER 900
FROM > TO: 1996 > 2001
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

1999 > 2001
FRONT
FDB570
1

MODEL: LEGEND 900 TT
FROM > TO: 1999 > 2001
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

1999 > 2001
REAR
FDB570
1

MODEL: LEGEND 900 TT
FROM > TO: 1999 > 2001
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2001 > 2006
FRONT
FDB570
2

MODEL: TIGER 955
FROM > TO: 2001 > 2006
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 2

2001 > 2006
REAR
FDB631
1

MODEL: TIGER 955
FROM > TO: 2001 > 2006
CC:
FRONT / REAR: rear
CODE: FDB631
NUM SET: 1

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
SYSTEM
2009 > 2013
FRONT
FDB570
1

MODEL: WR 125 R (DE071)
FROM > TO: 2009 > 2013
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2009 > 2013
REAR
FDB2005
1

MODEL: WR 125 R (DE071)
FROM > TO: 2009 > 2013
CC:
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

2009 >
FRONT
FDB570
1

MODEL: WR 125 X (DE07)
FROM > TO: 2009 >
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2009 >
REAR
FDB2005
1

MODEL: WR 125 X (DE07)
FROM > TO: 2009 >
CC:
FRONT / REAR: rear
CODE: FDB2005
NUM SET: 1

2008 > 2010
FRONT
FDB570
1

MODEL: WR 250 X
FROM > TO: 2008 > 2010
CC:
FRONT / REAR: front
CODE: FDB570
NUM SET: 1

2008 > 2010
REAR
FDB2162
1

MODEL: WR 250 X
FROM > TO: 2008 > 2010
CC:
FRONT / REAR: rear
CODE: FDB2162
NUM SET: 1

2005 > 2006
FRONT
FDB605
2

MODEL: MT-01
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: front
CODE: FDB605
NUM SET: 2

2005 > 2006
REAR
FDB570
1

MODEL: MT-01
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2007 >
FRONT
FDB2217
2

MODEL: MT-01
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB2217
NUM SET: 2

2007 >
REAR
FDB570
1

MODEL: MT-01
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2005 > 2006
FRONT
FDB605
2

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: front
CODE: FDB605
NUM SET: 2

2005 > 2006
REAR
FDB570
1

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2005 > 2006
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1

2007 >
FRONT
FDB2217
2

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2007 >
CC:
FRONT / REAR: front
CODE: FDB2217
NUM SET: 2

2007 >
REAR
FDB570
1

MODEL: MT-01 Rock Slate (RP12)
FROM > TO: 2007 >
CC:
FRONT / REAR: rear
CODE: FDB570
NUM SET: 1
